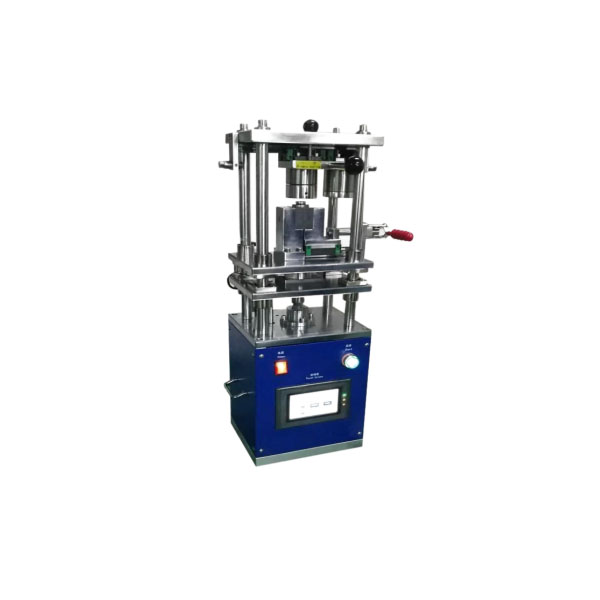

Louis@lithmachine.comAutomatic Cylindrical Battery Cell Crimping Machine
Application:
This Automatic Cylindrical Battery Crimping Machine is designed for automatic crimping sealing of cylindrical batteries, featuring automatic feeding and discharging. It adopts a three-step progressive sealing process (primary, secondary, and tertiary) to ensure smooth sealing edges, excellent air tightness, high dimensional accuracy, high efficiency, and consistent performance.
Key Features:
· PLC touchscreen control for easy parameter setting and high automation level;
· Utilizes a three-step crimping process to achieve smooth sealing edges, excellent air tightness, and precise dimensions with consistent results;
· Precision mold design ensures accurate and reliable sealing, supported by a sturdy steel structure for stable and safe operation;
· Interchangeable mold system allows for sealing of various cylindrical battery types such as 18650, 26650, 21700, etc.;
· Compact and aesthetically designed, easy to operate and maintain, with precise forming capability.
Technical Specifications:
|
Item |
Specification |
|
Sealing Mold |
Standard: 18650 series (Optional: other specifications) |
|
Sealing Pressure |
Max. 3000Kg |
|
Sealing Accuracy |
±0.1mm |
|
Mold Lifespan |
＞3 million cycles |
|
Production Capacity |
6 pcs/min |
|
Power Supply |
220V / 50Hz |
|
Power Consumption |
100W |
|
Air Supply |
0.5MPa ~ 0.7MPa |
|
Dimensions |
L550mm × W400mm × H1250mm |
|
Weight |
Approx. 205Kg |
Coin Cell Process:
Materilas → Powder Processing →Powder Grinding Mill → Vacuum Mixing → Electrode Coating → Roll Press → Vacuum Drying → Disc Cutter → Electrolyte Injection → Crimping Machine → Battery Analyzer
For the coin cell Assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
