Battery Electrode Vacuum Film Applicator Coater With Vacuum Chuck & Dryer Cover

  • ItemNo :

    LITH-JK-TMJ-200
  • MOQ :

    1
  • Lead Date :

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Delivery Time:

    7 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Battery Electrode Vacuum Film Applicator Coater With Vacuum Chuck & Dryer Cover

Features

For more information, Please view the following website of our product.

https://www.youtube.com/watch?v=TEPHWUGBvsI&t=13s

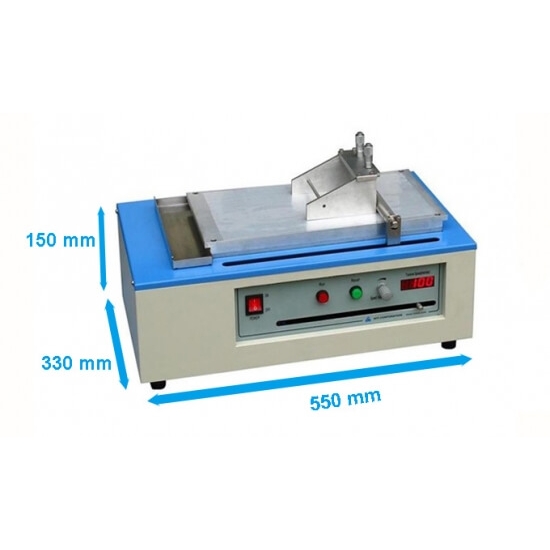

LITH-JK-TMJ-200 is a CE Certified ready compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin coatings. One 140 mm width adjustable micrometer applicator (doctor-blade). Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.


Technology parameters

Model

TMH800-250

TMH250-100

TMH250-150

TMH300-250

TMH350-250

TMH550-250

Stroke Length

10 - 800 mm adjustable by using Adjustable Position Switch

10 - 250 mm adjustable by using Adjustable Position Switch

10 - 250 mm adjustable by using Adjustable Position Switch

10 - 300 mm adjustable by using Adjustable Position Switch

10 - 350 mm adjustable by using Adjustable Position Switch

10 - 550 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 900mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 100mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 365mm(L) x 150mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 400mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 450mm(L) x 250mm(W)

Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 650mm(L) x 250mm(W)

Accessories: Film Applicator

Optional 50 upto 250 mm width micrometer adjustable film applicator is included

Optional Heating Cover Voltage and Power

110VAC or 220VAC

Traverse Speed

0 - 120 mm/sec variable
Accuracy: 10mm/sec

Vacuum Pump

Vacuum pump is included

Heating Cover

1. Pre-installed on the top cover
2. Built in digital temperature controller with accuracy of +/-1°C
3. Suspension support helps open cover easily and safely
4. Max. Heating Temp: 200°C

Compliance

CE Certificate

Warranty

Two years limited warranty with lifetime support

Recommendation

For the Cylindrical cell assembly, we also recommend you the following items:

             Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making               Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

    Slitting Machine           Ultrasonic Spot Welding Machine        Grooving Machine sealer

Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making        Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

Sealing Machine          Battery Tester






Spot Welder



Cylindrical Cell Process

Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer





PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
