Features

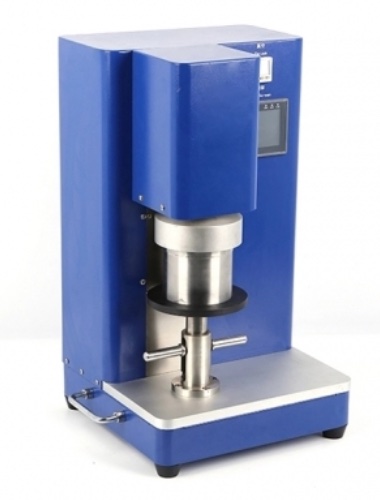

LITH-PVM-5L is a Vacuum Planetary Mixer with 5 liter containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.
A temperature-controlled water circulator is included to make container working at temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing. GN-SFM-9 is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.
Technology parameters
|
Power Supply |
· Single phase, AC 208 - 240V 50/60Hz, single phase · Total power: 4kW · 220V AC Power plug is not included. Please click here to order the plug) |
|
Revolution Speed |
· Mian shaft speed: 0 - 70 rpm · Stirring speed: 0 - 112 rpm, motor: 2.2kW · Dispersing speed: 0 - 6100 rpm, motor: 1.5kW |
|
Vacuum |
· The vacuum pump: 0.37kW built in · The vacuum degree: <= -0.098MPa |
|
Lift Motor |
Lifting Motor is built in ( 370W) |
|
Bucket |
· Dimensions: Dia.240mm * H.180mm · Capacity: 5 Liter · Water cooling jacket · Temperatured monitor and over-temperature alarm |
|
Beater |
· Tolerance of beater and bottom: 2-4 mm · Tolerance of beater and bucker wall: 2-5mm · Tolerance of two beaters: 3-8mm · Made of SS 304 |
|
Shipping Dimension & Weight |
Two Pallets: |
|
Overall Dimension |
1000mm(L) x 800mm(W) x 1930mm(H) |
|
Control Panel |
Digital Touch Screen for efficient adjustments |
|
Net Weight |
400kg |
|
Warranty |
· One year limited warranty with lifetime technical support · Rust and damage due to improper storage conditions or lack of maintenance is not covered by warranty |
Other Vacuum Mixer Machine
|
|
|
 |
|
|
250/500mL Compact Dual-Shaft Planetary Vacuum Mixer |
5-50L Planetary Vacuum Mixer |
100L-600L Planetary Power Vacuum Mixer |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity
