Pneumatic Battery Coin Cell Crimping Tool Machine For CR20XX Coin Cell Case

Pneumatic Battery Coin Cell Crimping Tool Machine For CR20XX Coin Cell Case

  • Product Details

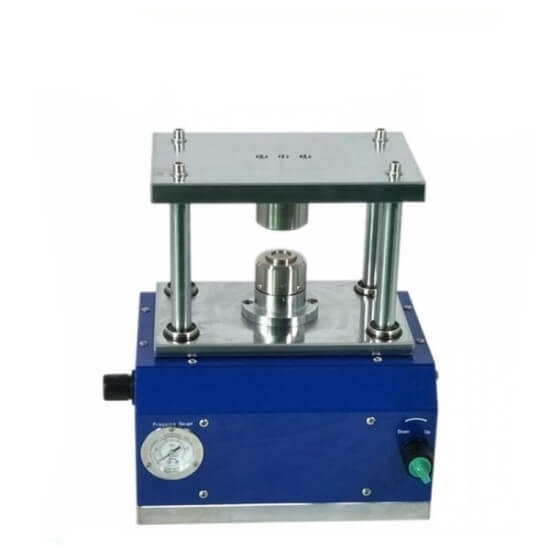

Pneumatic Coin Cell Crimping Tool Machine


1. LITH-PCS coin cell crimper is a newly designed coin-cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching, Capacitor sealing research, also be used in small batch trial production in factories.equipped with different die,also used for disassemble battery, press electrode sheet,press battery powder,etc.

2. In addition, customers can easily replace the original die for disassembling purpose.

3. It can also be worked in glove box with smaller volume.



Machine Model

Pneumatic Coin Cell Crimping Machine TMAX-Pneumatic1

Gas source

0.6 0. 8mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)

Exhaust design

Specially designed exhaust port, can external via connected by kf40 and other devices

Gas consumption

The gas consumption of single seal is about 480 ml

Crimping pressure

Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%

Crimping stroke

30mm

Crimping die

Standard crimping die is CR20xx, with optional die sets

Disassembling die

Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.

Machine size

L290mm*W205mm*H330mm

N.W

25Kg

Structural material

High strength chromium steel, the surface after environmental plating and spray treatment will never rust.

Remark

With the function of preventing  short circuit of battery crimping


Pneumatic Crimping






Coin Cell Process:

Materilas → Powder Processing  →Powder Grinding Mill → Vacuum Mixing  → Electrode Coating → Roll Press  → Vacuum Drying  → Disc Cutter → Electrolyte Injection  → Crimping Machine  → Battery Analyzer



For the coin cell Assembly, we also recommend you the following items:










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
