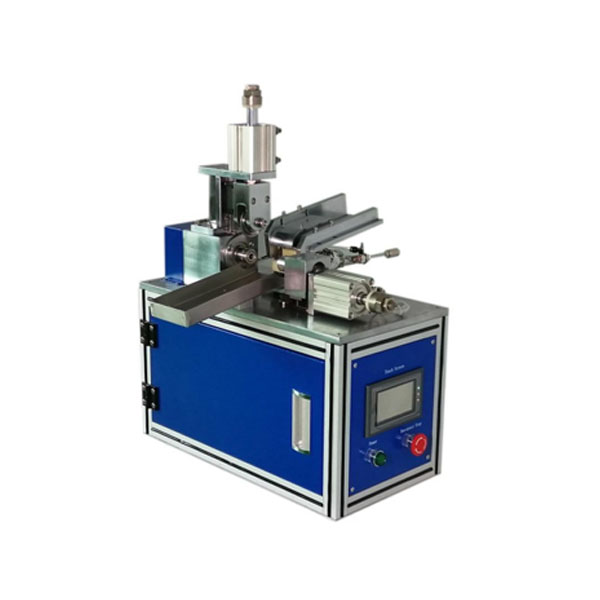

Louis@lithmachine.comAutomatic Grooving Machine for Cylindrical Battery
The Cylindrical Battery Automatic Grooving Machine is a critical piece of equipment used in cylindrical battery manufacturing. It is designed for automatic grooving of cylindrical steel cases (pre-loaded with jelly rolls). The steel cases are aligned in the guide slot, where they are automatically fed into the main motor chuck. The grooving blade then performs precision grooving with a built-in anti-flaring mechanism.
· Automatic loading and unloading improve production efficiency and reduce labor.
· Adjustable grooving dimensions with high precision and consistent size control.
· Interchangeable molds support various cylindrical cell types, such as 18650, 26650, and 21700.
· Compact design, attractive appearance, and easy operation.
· PLC control with touchscreen interface for high-level automation and easy parameter adjustment.
|
Item |
Specification |
|
Production Capacity |
30–40 PCS/min |
|
Grooving Depth |
1.0–1.7 mm |
|
Grooving Width |
1.0–2.0 mm (grooving blades need replacement for different widths) |
|
Grooving Concentricity |
≤0.05 mm (difference in diameter before and after grooving) |
|
Power Supply |
AC 380V, 0.65 kW |
|
Air Supply |
0.4–0.7 MPa |
|
Dimensions |
620 mm × 520 mm × 1200 mm |
|
Weight |
85 kg |
Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
Related Machine
|
|
|
|
|
|
|
Electrode Slitting |
Welding Power: 80-6500W optional |
Lab cylindrical cell grooving machine |
Manual Sealing or Pneumatic Sealing Machine |
8 Channel Battery Tester
|
|
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
