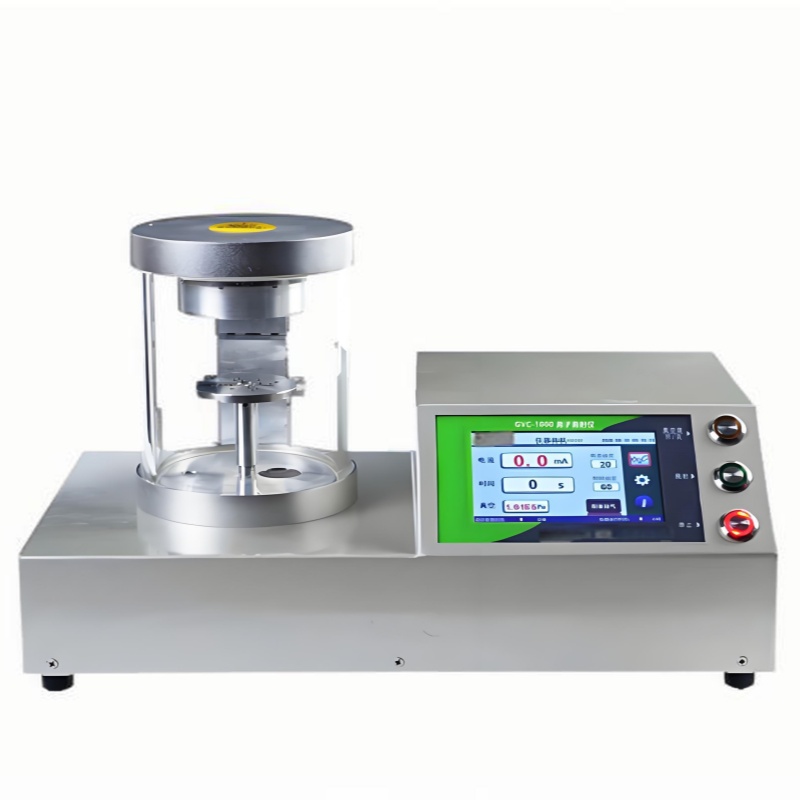

Model: GVC-1000 DC Ion Sputtering Coater
Product Overview
The GVC-1000 DC Ion Sputtering Coater adopts a microcontroller as its core processor, featuring independent intellectual property and excellent scalability for customized development. Equipped with a 5.1-inch touch LCD screen, it intuitively displays set parameters such as sputtering current, sputtering time, working current, and remaining time.
· Sputtering Current: 3–30 mA (continuously adjustable, step: 1 mA)
· Sputtering Time: 1–600 sec (step: 1 sec)
· Safety Interlocks: Dual protection for sputtering current and vacuum level, ensuring immediate shutdown upon triggering to prevent damage.
· Sample Capacity:
o 4 × φ25 mm samples or 6 × φ15 mm samples
o Single sample cup accommodates up to φ50 mm samples.
· Vacuum Performance:
o Ultimate vacuum: <1 Pa
o Pumping speed: 1 L/s
o Chamber size: φ108 × 130 mm
· Additional Features:
o Real-time curves for sputtering current & vacuum level.
o Adjustable screen brightness.
o System/usage time tracking for targets.
|
Category |
Specifications |
|
Operation Mode |
Magnetron Sputtering |
|
Input Voltage |
AC 220V ± 10%, 50Hz |
|
Working Voltage |
DC 2400V |
|
Max Power Consumption |
500W (host + mechanical pump) |
|
Target Materials |
Au, Pt, Au-Pd alloy, Ag, Pb, Cu, Cr, Sb, etc. |
|
Sputtering Gas |
Air or Argon |
|
Chamber Material |
High-borosilicate glass (φ128 × 100 mm) |
|
Vacuum Pump |
Two-stage rotary vane pump (1 L/s) |
|
Sample Stage |
φ90 mm (or φ25 × 4 / φ15 × 6) |
|
Dimensions (L×W×H) |
424 × 271 × 255 mm |
|
Weight (Host) |
11 kg |
|
Operating Environment |
5–40°C, <60% RH |
|
Storage Environment |
-10–60°C, <80% RH |
✔ Fully Automated Control – No manual needle valve adjustment required.
✔ Quick-Target Replacement – Patented clamp structure for effortless swaps.
✔ Special Seal Design – Protects glass components from damage.
✔ Adjustable Sample Stage – Smooth height adjustment via sliding rod.
✔ Built-in Operation Guide – User-friendly interface for instant proficiency.
Ideal for conductive film coating in SEM sample preparation, the GVC-1000 ensures simplicity and efficiency. Compatible with a wide range of target materials (Au, Pt, Ag, Cu, etc.) and sputtering gases (Air/Ar).
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
