ItemNo :
Lith-JYSC-1000MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 daysEmail :
Louis@lithmachine.com
Model: JYSC-1000-SEM Preparation

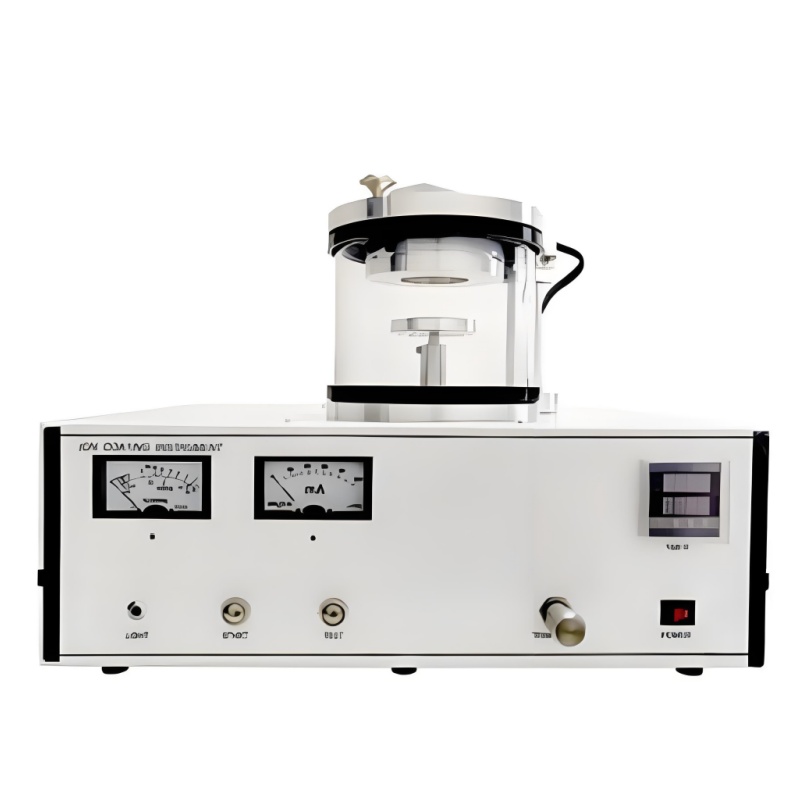

The JYSC-1000 compact magnetron ion sputtering coater is designed for high-quality conductive coating (e.g., gold film) on SEM samples or material surfaces. Featuring stable performance and user-friendly operation, it employs cold magnetron sputtering technology, minimizing heat generation to protect sensitive samples.
· Durable Metal Bellows – Corrosion-resistant and aesthetically refined vacuum pump tubing.
· Precision Adjustment – Sensitive micro-valve control with clear scale markings.
· High-Efficiency Vacuum Pump – Fast pumping speed (8 m³/h) with low noise, ideal for lab environments.
· Reliable Circuitry – Stable control board for consistent operation.
· Cold Sputtering – Near-zero temperature rise preserves sample integrity.
Parameter |
Specification |
Vacuum Chamber |
Ø150 mm × 110 mm (H) |
Sample Stage |
Ø60 mm |
Gold Target Size |
Ø50 mm |
Vacuum System |
Pumping speed: 8 m³/h |
Vacuum Monitoring |
Custom Pirani gauge + analog dial |
Exhaust Mode |
Automatic |
Sputtering Time |
0–1000 sec (programmable) |
Process Gas |
Air or argon (dedicated inlet) |
Compatible Target Materials |
Au, Au/Pd, Pt, Pt/Pd, Cu, Ag, etc. |
Dimensions |
~450 × 330 × 235 mm (L×W×H) |
· SEM Sample Prep: Uniform conductive coatings enhance imaging accuracy.
· Material Science: Versatile metal deposition for thin-film research.
· User-Centric Design: Fast target switching, low maintenance, and lab-friendly noise levels.
Ideal for: Academic labs, quality control, and R&D requiring precision coating with minimal thermal impact.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
