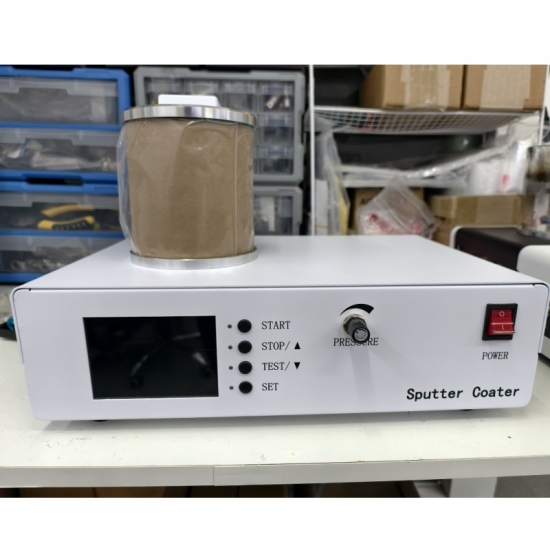

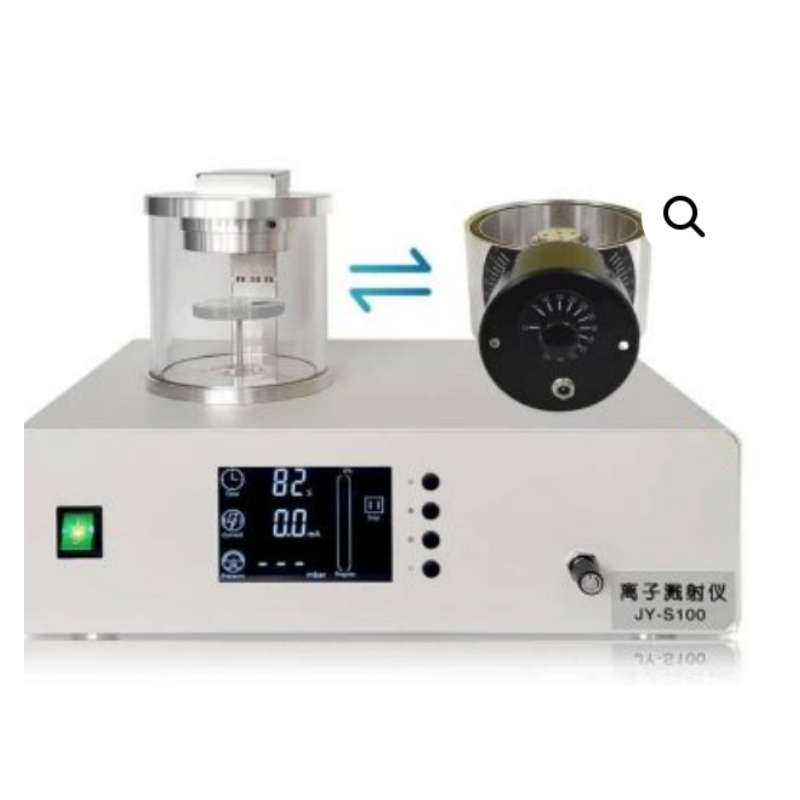

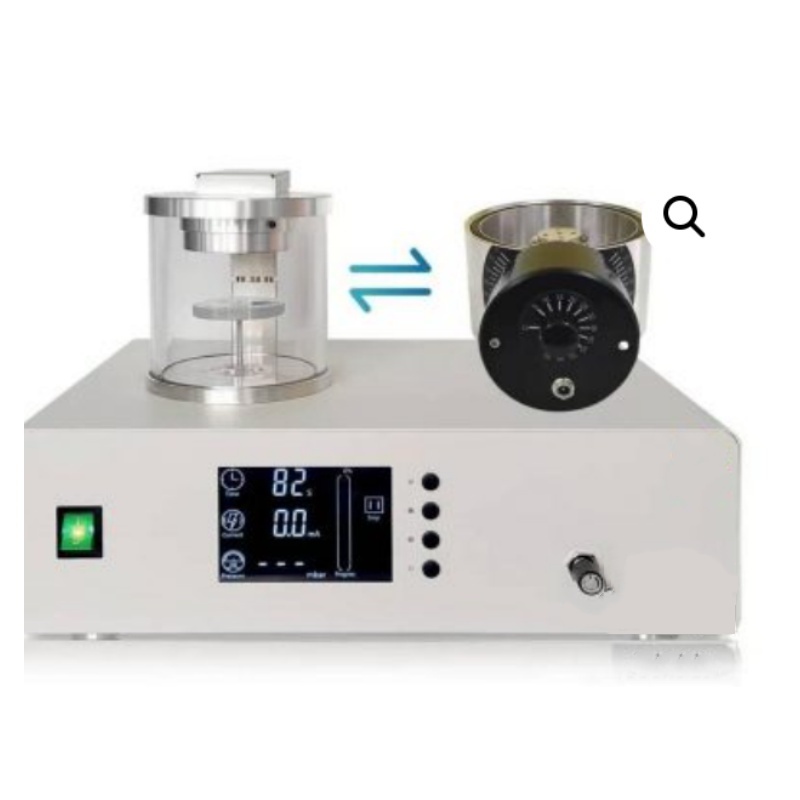

Model: JY-S100-Cold Magnetron Sputtering Deposition System
The JY-S100 is a benchtop cold magnetron sputtering coating system equipped with a standard rotating/tilting sample stage. It is specifically designed for high-quality conductive coating of non-conductive samples with varied surface morphologies for SEM imaging. It also meets the requirements for electrode coating, semiconductor materials, and other thin-film applications.
· "Ultra-Cold" Sputtering: Utilizes a high-efficiency, low-voltage DC magnetron source to prevent thermal damage to sensitive samples.
· Wide-Angle Coverage: Innovative magnetron design ensures uniform coating coverage, even for closely positioned samples.
· Fast Operation: Independent solenoid valves for venting, purging, and exhaust enable rapid system cycling.
· Stable Coating Performance: Precisely controlled sputtering current ensures consistent deposition rates and optimal coating quality, unaffected by chamber pressure.
· Multi-Material Compatibility: Supports various metal targets (Pt standard, optional Au, Au/Pd, or Pt/Pd) with quick and easy target replacement.
|
Parameter |
Specification |
|
Target Material |
Standard: Pt (57mm diameter × 0.1mm thickness) <br> Optional: Au, Au/Pd, Pt/Pd |
|
Sample Stage Rotation |
0–60 rpm (continuously adjustable) |
|
Sample Stage Tilt |
-45° to +45° (continuously adjustable) |
|
Stage Diameter |
40mm (holds 4 standard sample holders; custom sizes available) |
|
Sputtering Current |
Microprocessor-controlled (0–99 mA) with safety interlock |
|
Vacuum Range |
Atm ~3 Pa |
|
Control Method |
Programmable (1–999s) with Start/Pause buttons; automatic pumping/sputtering/venting |
|
Parameter |
Specification |
|
Pumping Speed |
133 L/min |
|
Ultimate Vacuum |
0.05 Pa |
|
Noise Level |
56 dB |
· Ideal for SEM Sample Preparation: Ensures high-conductivity coatings without thermal damage, critical for delicate or heat-sensitive materials.
· Versatile Material Deposition: Suitable for Pt, Au, and alloy coatings in semiconductor, nanotechnology, and materials research.
· User-Friendly Operation: Automated processes and ergonomic design enhance efficiency and reproducibility.
· Compact & Reliable: Benchtop design saves lab space while delivering professional-grade performance.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
