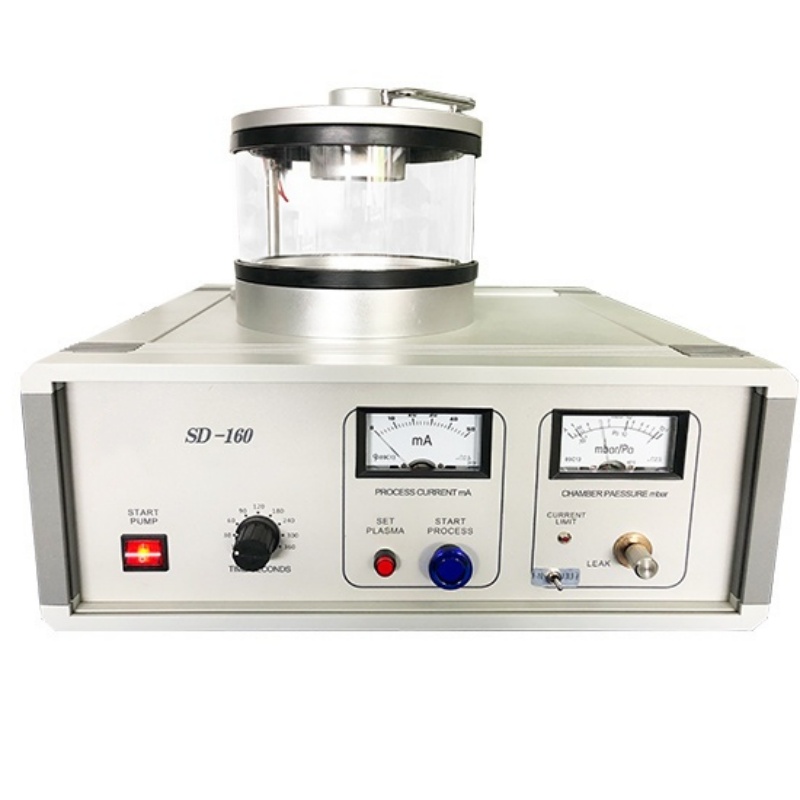

Model: SD-160 DC Ion Sputtering Coater
Product Overview
The SD-160 Ion Sputtering Coater is a DC (direct current) sputtering deposition system based on a two-electrode DC sputtering principle—a simple, reliable, and cost-effective coating technology widely adopted in industrial applications.
Beyond its fundamental design, the SD-160 features:
· A dedicated sample sputtering chamber
· Vacuum gauge and sputtering current meter
· Adjustable sputtering current controller
· Micro vacuum valve and timer
· Integrated automated circuitry for precise control of chamber pressure, ionization current, and process gas selection, ensuring optimal coating quality.
· Durable rubber-sealed bell jar design prevents vacuum leakage and edge chipping during prolonged use.
· Ceramic-sealed high-voltage electrode outperforms conventional rubber seals in longevity.
· Large-capacity sputtering chamber and optimized target area ensure uniform, contaminant-free coatings.
· High-stability solenoid valves and a dual-gas-path automatic control system enhance sample protection and film quality.
Ideal for:
· SEM sample preparation in electron microscopy labs
· Electrode fabrication for R&D research
|
Parameter |
Details |
|
Sputtering Gas |
Argon, nitrogen, or other gases (selectable per experiment) |
|
Target Material |
Standard: Gold target (50mm × 0.1mm thick). Optional: Silver, platinum, etc. |
|
Sputtering Current |
Max: 50mA |
|
Deposition Rate |
>4nm/min |
|
Chamber Dimensions |
Ø160mm × 120mm (H) |
|
Sample Stage |
Compatible with Ø50mm and Ø70mm stages (customizable) |
|
Power Supply |
220V AC (110V optional), 50Hz |
1. Leap Vacuum Pump: High-performance pumping for consistent vacuum levels.
2. Dual-Gas Control: Isolated gas paths safeguard sample integrity.
3. User-Centric Design: Timed sputtering, adjustable parameters, and modular stage options streamline operation.
Note: Parameters are default for standard configuration. Customizations (e.g., target materials, voltage) available upon request.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
