Manual & Auto Lab Sputter Coater for Low Temperature SEM Carbon Preparation

Model: SD-160 DC Ion Sputtering Coater

Introduction

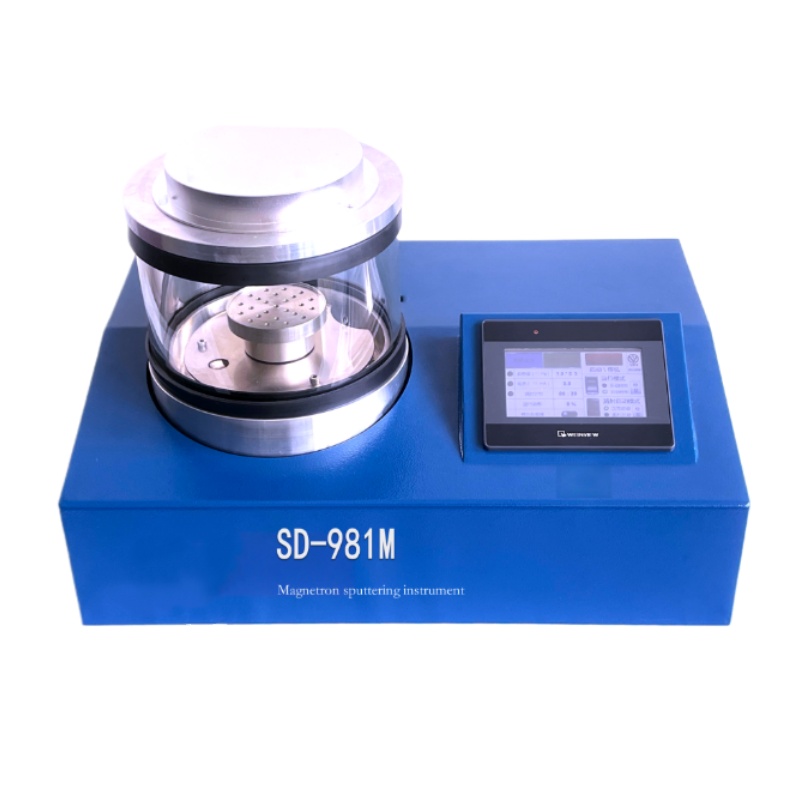

The SD-981M Ion Sputtering Coater is designed for high-quality SEM sample preparation. Compared to conventional sputtering systems, it features magnetron sputtering technology, making it suitable for temperature-sensitive samples (e.g., thin films, rubber). The system offers automatic/manual operation modes, adjustable vacuum control, and auto-venting functionality, with optional rotary sample stage compatibility. Its user-friendly interface and stable performance make it ideal for universities and research institutes.

Key Specifications

Parameter	Value
Dimensions (Main Unit)	510mm (L) × 310mm (W) × 290mm (H)
Target Material	Au, 50mm (D) × 0.1mm (H)

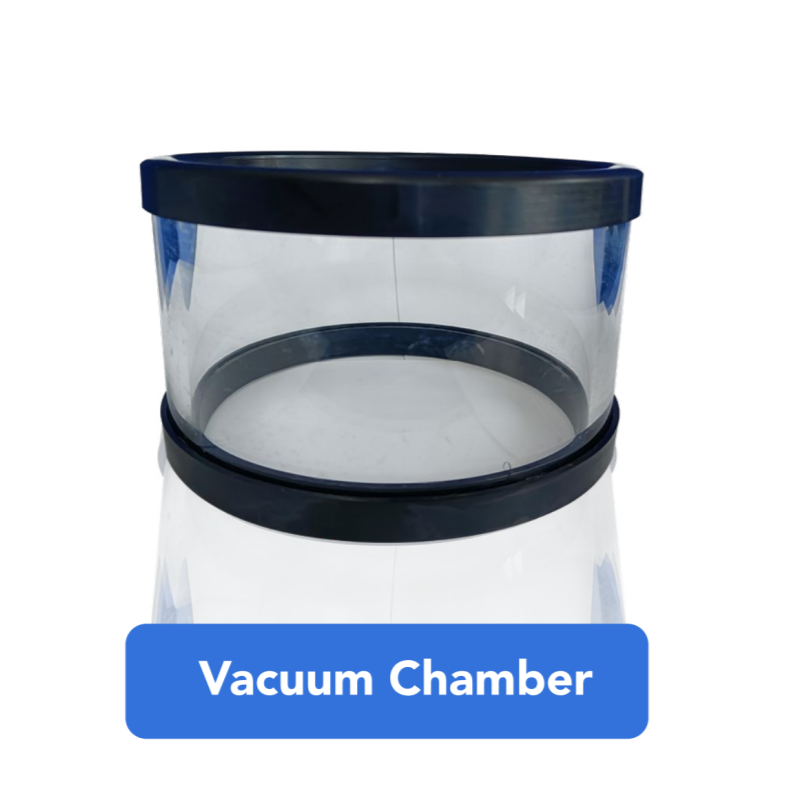

Sample Chamber	Glass chamber, Ø180mm × 120mm (H)

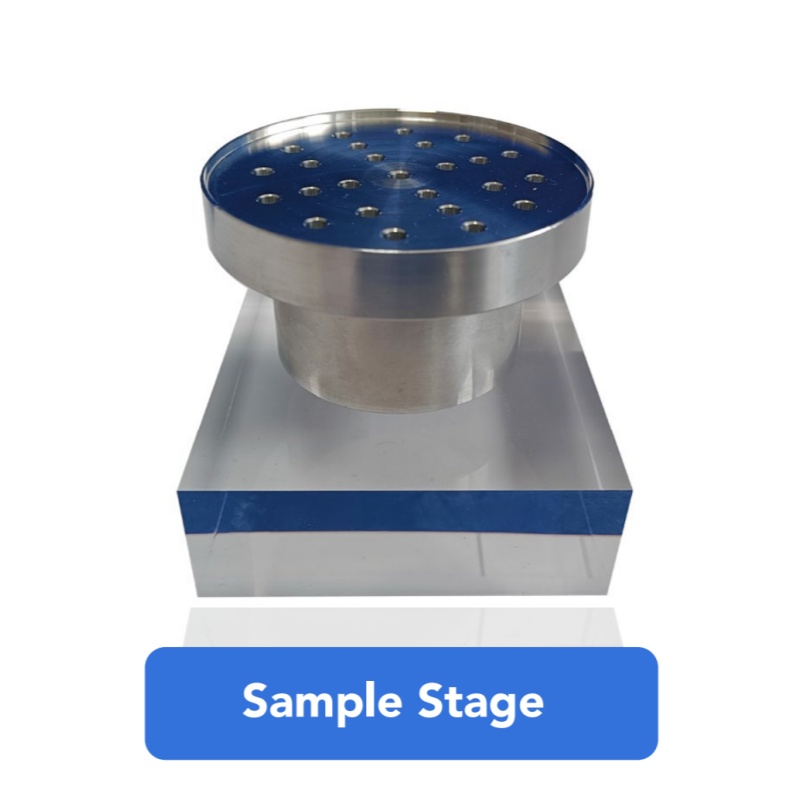

Sample Stage Diameter	Ø70mm (rotary stage optional)
Target Size	Ø50mm
Ultimate Vacuum	1 Pa
Operating Vacuum	2–15 Pa
Sputtering Current	0–50 mA (adjustable)
Timer	Digital, 0–600 sec
Coating Area	50mm diameter
Deposition Rate	0–60 nm/min
Vacuum Measurement	Pirani gauge
Touchscreen	4-inch HMI interface
Gas Compatibility	Supports multiple gases
Mechanical Pump	VRD-8
Power Consumption	100 W

Features & Applications

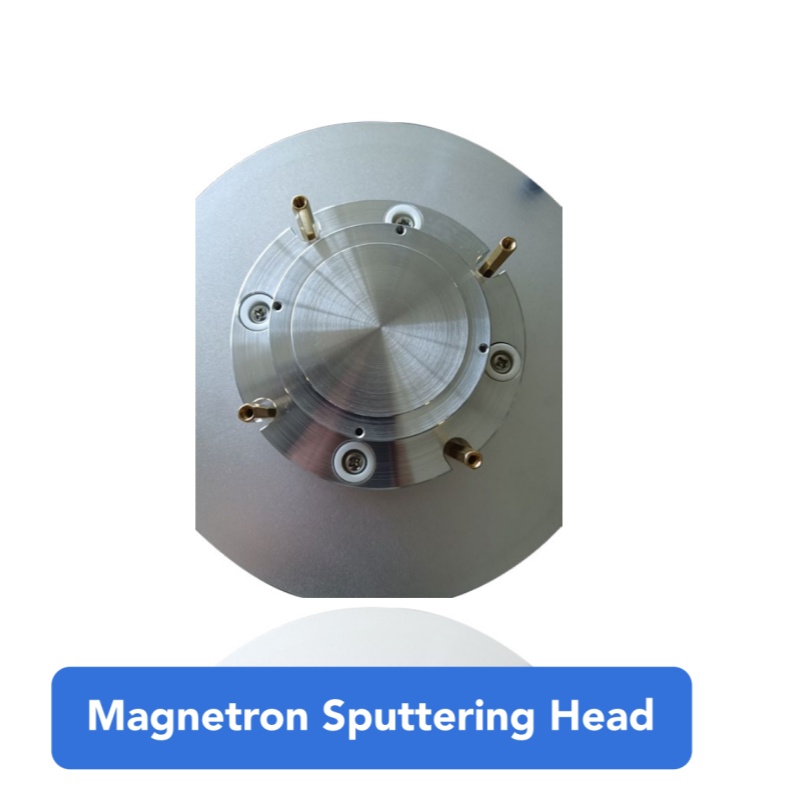

1. Magnetron Sputtering Technology

· Enables low-temperature coating for delicate samples (e.g., polymers, biological specimens).

· Stable target design ensures uniform film deposition.

2. Dual Operation Modes

· Automatic mode: Streamlines repetitive tasks.

· Manual mode: Offers flexibility for customized protocols.

3. Adjustable Sputtering Modes

· Standard/gentle startup accommodates sensitive materials.

4. Intelligent Vacuum Control

· Auto-pressure stabilization eliminates manual adjustments and reduces coarse grain formation.

5. User-Friendly Interface

· Simplified/advanced UI options cater to users of all experience levels.

6. Optional Rotary Stage

· Enhances coating uniformity for complex geometries.

Typical Applications

· SEM sample preparation (metals, ceramics, polymers).

· Thin-film deposition for research in materials science, life sciences, and nanotechnology.

Carbon Preparation Machine

SEM Preparation Machine

Manual PVD Machine

Lab Sputter Coater

PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
