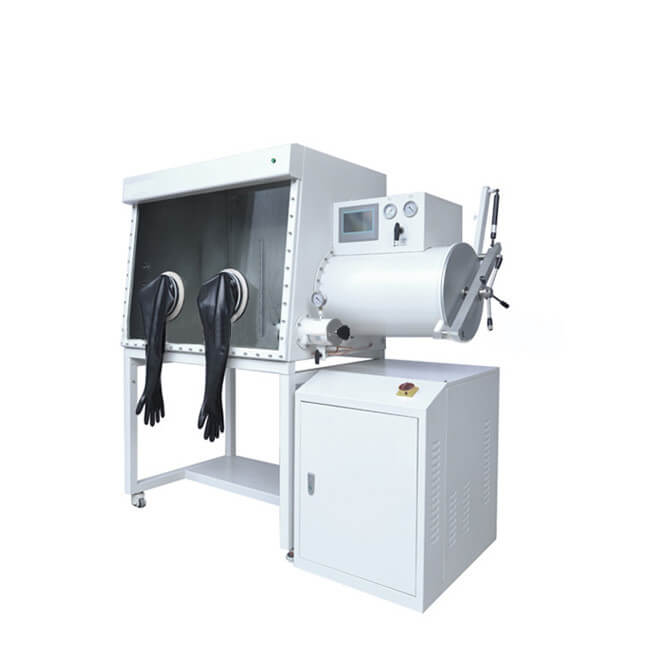

Laboratory Vacuum Glove Box with H2O & O2 Purification System


Features

VGB-6 is a dual stainless steel glove box designed for researchers in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from the US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in an ultra clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, auto alarm, and system data log recording.


Specifications

Working Voltage

220V AC, 50/60Hz, Single Phase

Max. Power Consumption

3KW

Glove Box Chamber

·         Case Material: Stainless Steel 304

·         Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)

·         12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner



Chamber Condition


·         Water concentration: <1 ppm (20°C, 1 atm)

·         Oxygen concentration: <1 ppm (20°C, 1 atm)

Leak rate

<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)



Air-lock Chamber


·         Antechamber Dimensions: 385mm(Dia.) x 588mm(L)

·         Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)

·         Max. vacuum level: 100 Pa



Working Gas


·         Operating gas: Inert gas such as N2, Ar, He

·         Regenerating gas: Mixture of H2 (10%) and Operating gas

o    For purification system with only water adsorbing function, Regenerating gas will be the same as Operating gas



Gas Purification System


·         Automated Regeneration Process

·         Automated water and oxygen removal

·         Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials

·         Moisture removal capacity: 1.5KG

·         Oxygen removal capacity: 180L



Filter System


·         Organic Solvent Filter System filled with replaceable activated carbon

·         Built in HEPA filter can eliminate particle size > 0.3μm

Control system

·         Siemens PLC control system with 6" touch screen display

o    Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

o    Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

o    Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa



Pump


·         England EDWARDS pump is included for faster vacuum and removing moisture

·         Vacuum rate: 8.4 - 12 m^3/hr

Blower

Flow Rate: 90m³/h

Purification Pipeline

304 Stainless Steel, KF40 Port

Gloves

A pair of NORTH butyl glove is included to provide better protection against toxic materials

Lighting

Built in fluorescent lamp



Slidable Shelf


  Three slidable shelves are built 0n top of inside glove chamber with dimensions of 300mm x 250mm

·         300mm away from roof

Product Dimensions

3115mm(L) x 830mm(W) x 1830mm(H) (123" x 33" x 72")

Shipping Dimensions & Weight

 Total 2 pallets

#1: 86"x41"x84"

#2: 86"x41"x83"

Total weight 1800 lb




Warranty


·         One Year limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty

·         Gloves are consumable items and are not covered under warranty

Application Notes

·         The channel between the glove box chamber and the gas purification system must be unimpeded during the operation of gas purifying

·         Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation

·         Corrosive gases are prohibited as they will damage the water sensor and oxygen sensor

·         The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas

·         Coolant water outlet must remain switched on all the time

·         System check frequently to replace filters and solvent adsorbents for maintanence and maximum efficiency

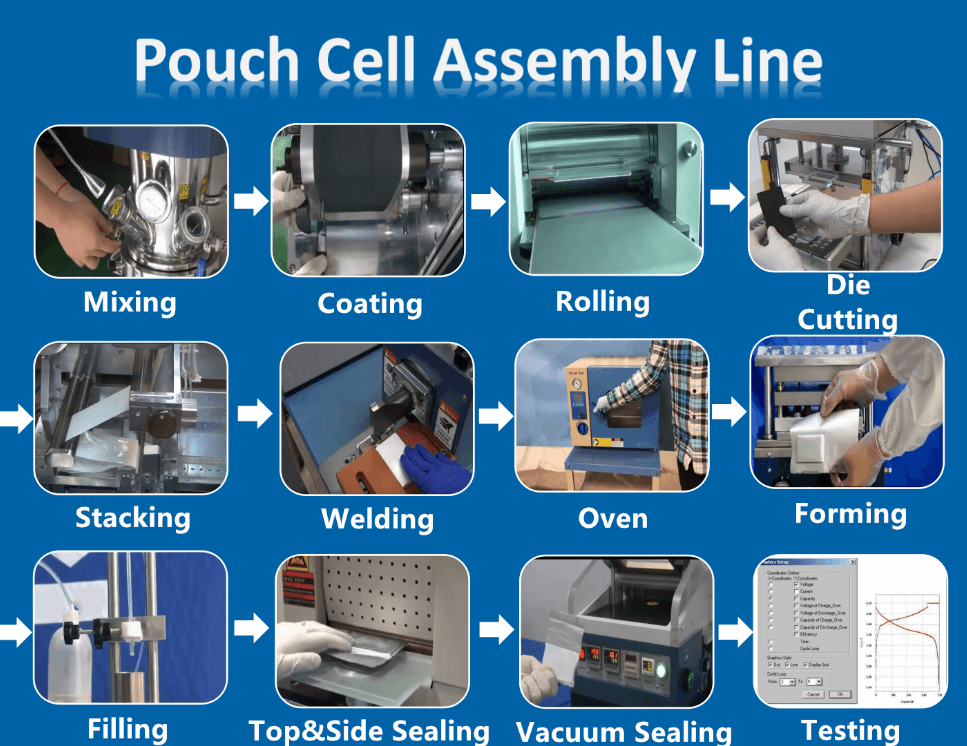

Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer



For the pouch cell assembly, we also recommend you the following items:











PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
