Pouch Cell Heat Hot Sealing Machine For Top & Side Pouch Sealing With 200 mm-400 mm Length

Pouch Cell Heat Hot Sealing Machine For Top & Side Pouch Sealing With 200 mm-400 mm Length

  • ItemNo :

    LITH-SFZ200
  • MOQ :

    1
  • Lead Date :

    In Stock
  • Warranty:

    2 years
  • Delivery Time:

    7 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Pouch Cell Heat Hot Sealing Machine For Top & Side Pouch Sealing With 200 mm-400 mm Length

Features

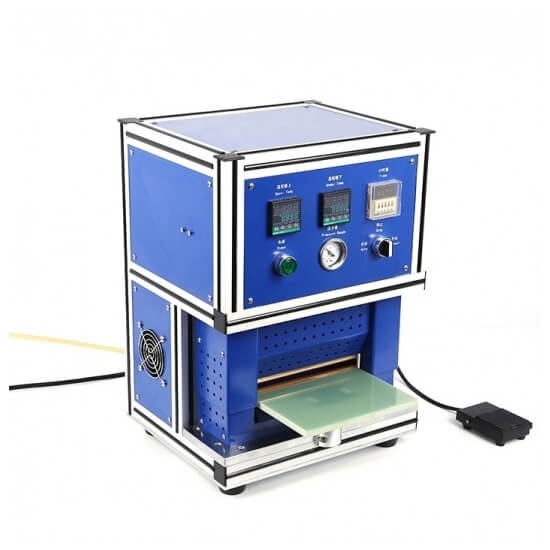

LITH-SFZ200 is a CE Certified compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch cell with the tab.

Specification

Sealing Width

5mm (Can be customized up to 3 - 10mm upon request)

Seal Thickness

0.15 - 0.3 mm

Sealing Pressure

0 - 0.7 Mpa (0 - 99 psi) adjustable

Sealing Temperature

0 - 250 °C adjustable with controlling accuracy +/-2 °C

Air Consumption

0.09 L / Sealing

Heating Timer

0 - 99 Seconds Adjustable

Warranty

One Year limited warranty with lifetime support

Die Opening

25mm *(140mm back clearance)

Color

Customer's Request

Product Keywords

heat sealers for Aluminiun-Laminated Film,heat sealer machine,heat sealer lithium ion

Sealing Blade Type

Soft sealing blade (blade with rubber, good for Al case sealing and case with tab in between)

Net Weight

35kg

Application Notes

Suggested Sealing Parameter:

Upper Heating Blade Temperature: 200°C

Lower Heating Blade Temperature: 180°

Pressure: 40 ps

Duration: 3 seconds

Please wait until both dies reached the Setting temperature and controller disable the Low temp. ALM, then begin to operate.

Note

For completing the full sealing procedure, you may need the following  combination:

a.Compact Heating Sealer(suitable for top&side sealing with tab)
                                                          Pouch Cell Hot Vacuum Sealer Sealing Machine for Pre-Sealing after Electrolyte Injection


b.Vacuum Sealing Machine(for pre-sealing in glove box after injection of electrolyte)

                                                                       Pouch Cell Hot Vacuum Sealer Sealing Machine for Pre-Sealing after Electrolyte Injection
c.Final Vacuum Sealing Machine

(for  vacuuming and second sealing with automatic puncture and degassing function)

                                                       Pouch Cell Hot Vacuum Sealer Sealing Machine for Pre-Sealing after Electrolyte Injection



 If you don't want to spend too much budget on the sealing part,

machine a plus b can also meet your basic sealing need

Recommendation

For the pouch cell assembly, we also recommend you the following items:

                              Pouch Cell Hot Vacuum Sealer Sealing Machine for Pre-Sealing after Electrolyte Injection             Pouch Cell Hot Vacuum Sealer Sealing Machine for Pre-Sealing after Electrolyte Injection

 Forming machine    Ultrasonic tab welder       Stacking machine          Die Cutter








Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer



For the pouch cell assembly, we also recommend you the following items:












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
