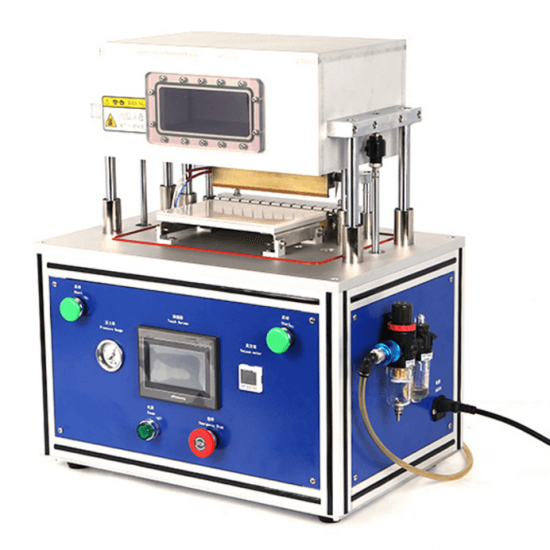

Pouch Cell Vacuum Hot Sealing Machine for Final Sealing


LITH-FS200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.

1.Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.

2.The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.

3.Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements

4.With automatic puncturing function, waste recovery unit.

5.Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements

6.Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.

7.Easy to operate, beautiful appearance, small size, light weight.


Specification

Sealing head temperature

RT-250℃,adjustable

Temperature control precision

±1.5℃

Heat sealing pressure

0-7kg/cm2,adjustable

Heat sealing time

0-99 second,adjustable

Sealing width

5mm,adjustable

Vacuum degree

-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)

Voltage

220V/50Hz

Power

300w heat pipe, heating when the power consumption of about 0.6KW

Compressed air source

0.5-0.7Mpa

Size

L500mm*W500mm*H700mm

Head parallelism

with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal

Air consumption

about 0.2L compressed gas / each time

Pneumatic working speed

≥ 180 times / h

Dimension

515mm * 350mm * 505mm

Weight

56kg

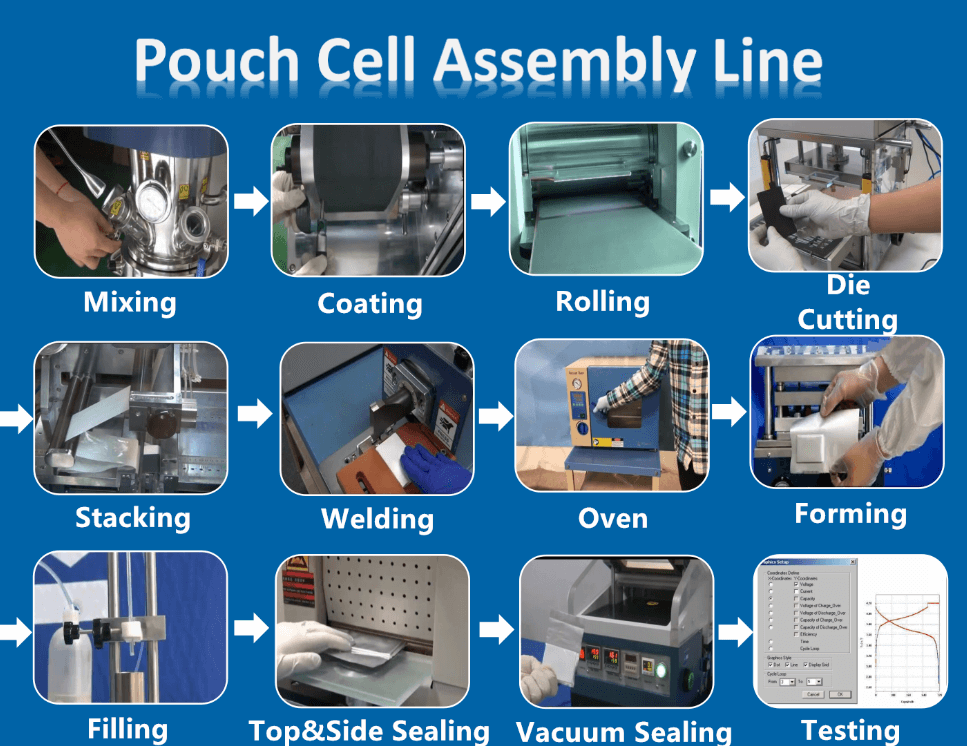

Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer




For the pouch cell assembly, we also recommend you the following items:










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
