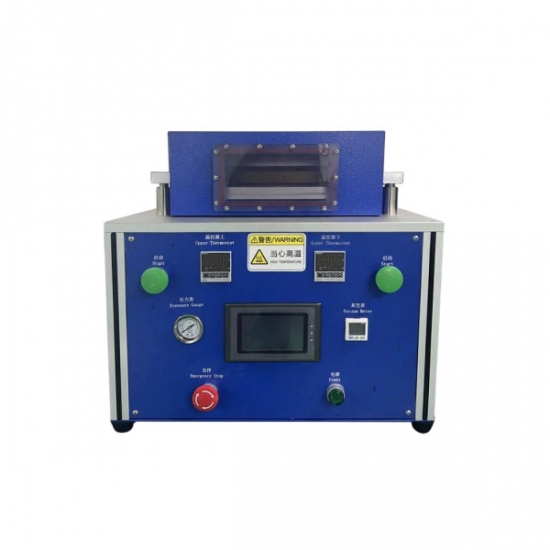

Laboratory Pouch Cell Final Vacuum Sealing Machine
The Pouch Cell Vacuum Sealing Machine is designed for the final vacuum sealing of pouch cell lithium-ion batteries, ensuring optimal sealing integrity and safety. It is suitable for various sizes and shapes of pouch cell batteries, making it ideal for R&D and production environments.
· High-efficiency copper sealing heads, providing excellent heat conductivity, reducing energy consumption, and improving efficiency compared to similar products.
· Adjustable sealing pressure, controlled via a pressure regulator, to meet different process requirements.
· Cylindrical drive system with dual linear guide sleeves, ensuring precise vertical movement for uniform sealing parallelism.
· Built-in automatic puncturing function, enhancing sealing efficiency.
· Pneumatic chamber cover operation, ensuring secure and consistent vacuum sealing.
· Compatible with various battery sizes, with simple and quick adjustment.
· Compact, lightweight, and easy to operate, with a sleek and durable design.
|
Parameter |
Specification |
|
Sealing Temperature |
Room temperature ~ 250°C (adjustable) |
|
Temperature Control Accuracy |
±1.5°C |
|
Sealing Pressure |
0~7Kg/cm² (adjustable) |
|
Sealing Time |
0-99s (adjustable) |
|
Sealing Width |
5mm (customizable upon request) |
|
Max. Sealing Length |
300mm(customizable upon request) |
|
Vacuum Level |
Up to -95KPa (adjustable) |
|
Power Supply |
220V / 50Hz |
|
Power Consumption |
900W |
|
Compressed Air Supply |
0.5-0.7MPa |
|
Machine Dimensions |
L700mm × W500mm × H900mm |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
