ItemNo :
Lith-DF02MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

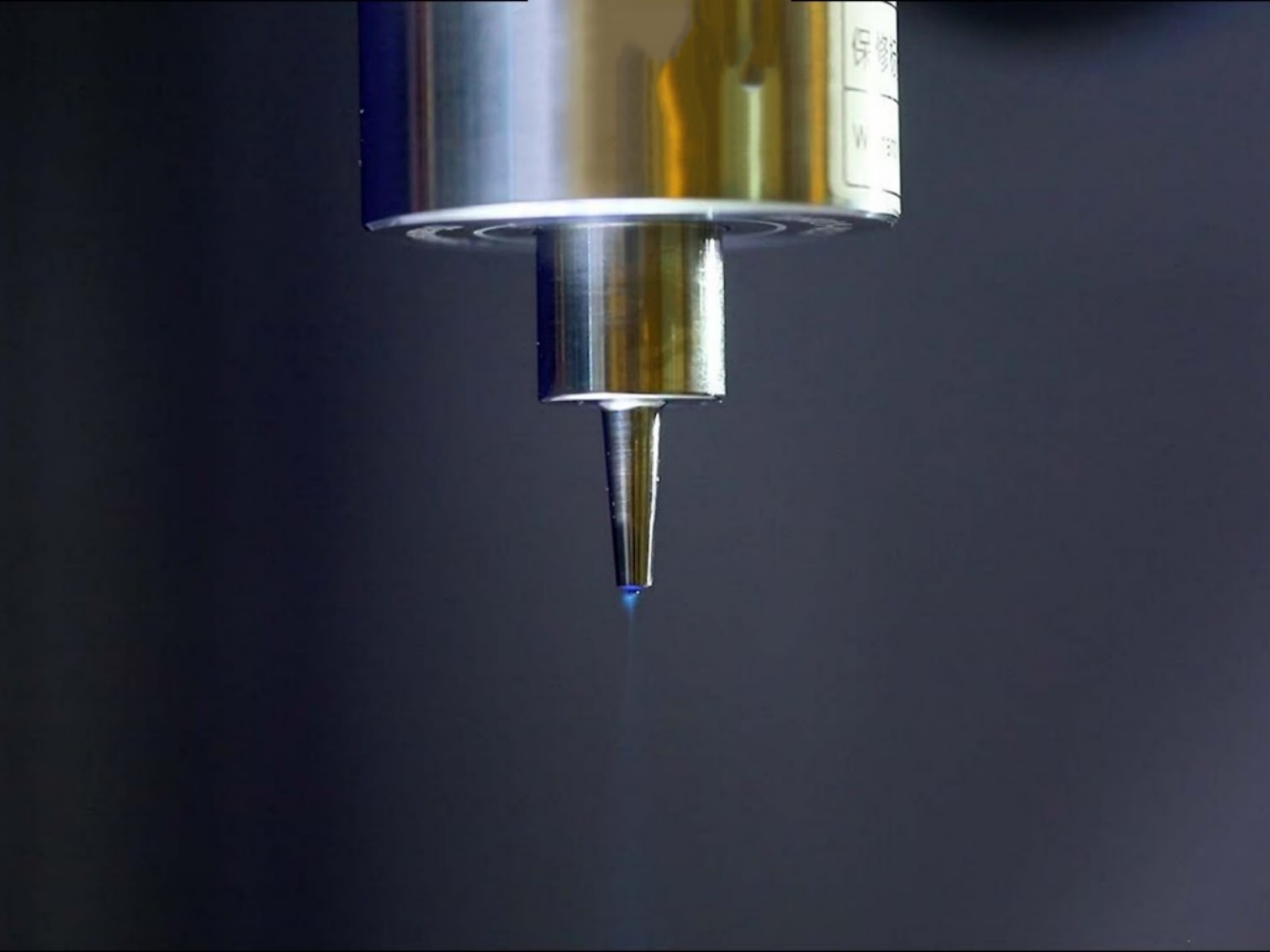

· Patented ultrasonic nozzle technology with customizable droplet size and spray width
· Uniform coating consistency: >95% homogeneity
· Clog-resistant nozzle design reduces maintenance costs and downtime
· Material savings: >85% material utilization rate (4× higher than conventional two-fluid spray)
· XYZ 3-axis servo motion system with precision trajectory control
· Vacuum-heated stage for flexible substrates (e.g., battery separators)
· Optional high-temperature stage (up to 500°C) for spray pyrolysis film deposition

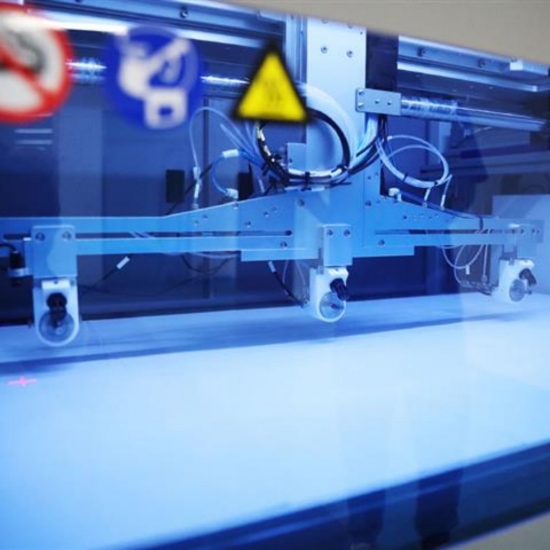

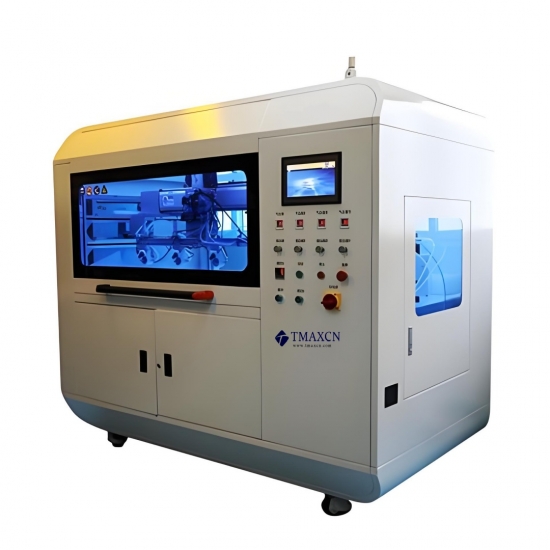

A mid-scale ultrasonic spray system compatible with focused, wide-range, or scattered-spray nozzles, supporting multi-nozzle parallel operation. Equipped with a precision constant-flow metering pump for 24/7 stable liquid supply. Integrated auxiliary modules (gas control, heated/vacuum stages, exhaust systems) make it ideal for pilot-scale production or large-area thin-film fabrication.
· Ultrasonic atomization eliminates compressed air需求, enabling:
o Higher uniformity (±5% variation)
o Thinner coatings (down to nanometers)
o 4× less material waste (85% vs. <25% in two-fluid spray)
· Energy: PEM fuel cell electrodes, perovskite/organic solar cells, transparent conductive films
· Biomedical: Biosensor coatings
· Semiconductors: Photoresist for wafers, PCB flux
· Glass Coatings: AR anti-reflection, hydrophilic/hydrophobic, thermal insulation
· Textiles: Superhydrophobic/antibacterial coatings
· Automated ultrasonic spraying with nanometer-scale thickness control (20 nm to 100+ µm)
· Coating uniformity: >95%
· Max. substrate area: 600 × 600 mm
· Multi-cylinder constant-flow system for uninterrupted supply
· Color touchscreen HMI with intuitive controls

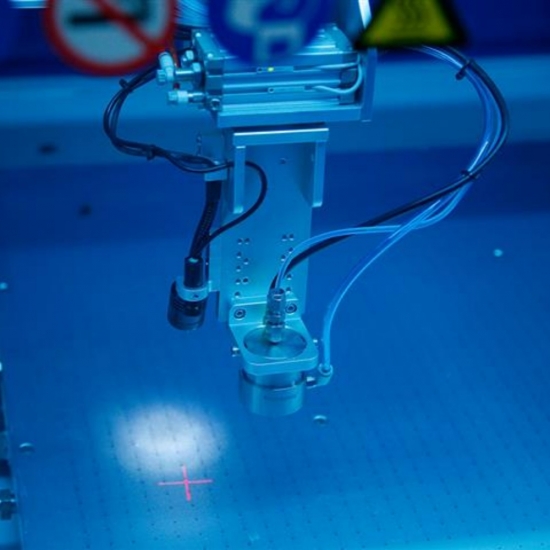

· Laser alignment for nozzle positioning
· Precision valves (imported) for stable gas-liquid coordination
· Built-in exhaust system
· In-line ultrasonic dispersion (optional) to prevent particle settling
· Self-cleaning function post-operation
· Vacuum-heated stage for flexible materials
· High-temp stage (500°C) for spray pyrolysis
· Zero-clogging nozzles → Low maintenance
· 4× material efficiency vs. conventional methods
· Modular design for diverse R&D/production needs
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
