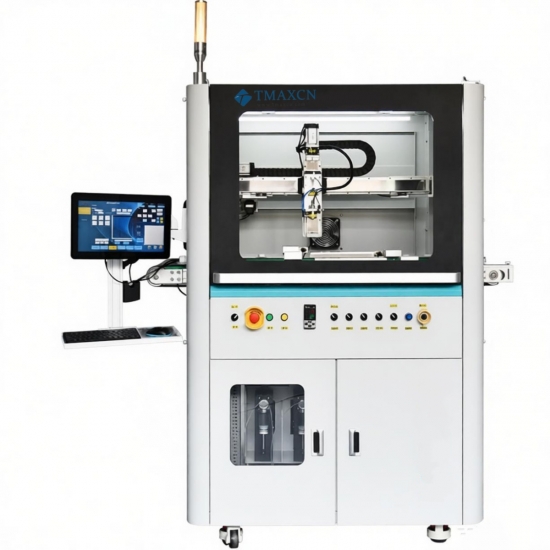

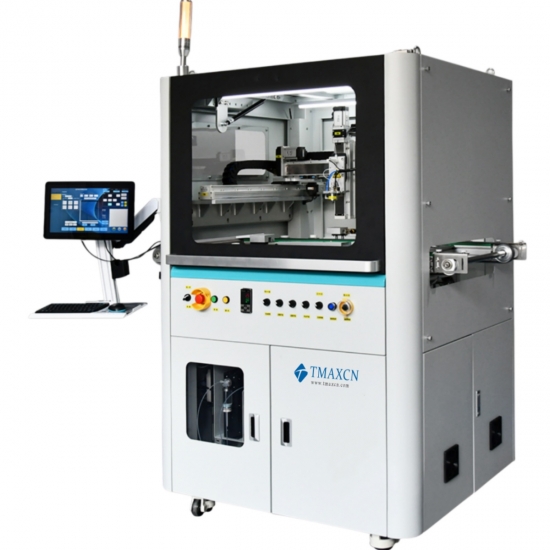

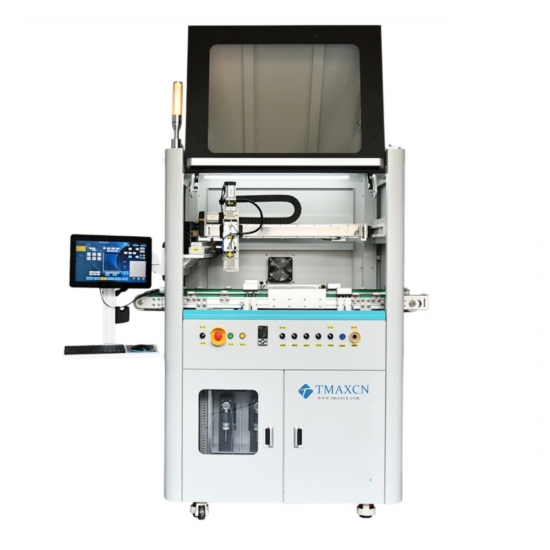

· Overall Dimensions: 1500×1250×1900 mm
· Maximum Coating Area: 500×500 mm
· Motion System: XYZ three-axis servo, programmable for any planar trajectory
· Control Method: PLC-controlled, with LCD touchscreen and physical buttons
· Ultrasonic Spray Head: Standard configuration includes 1 set of TMAX ultrasonic spray head (customizable for multiple heads)
· Application: Ideal for medium-scale production and large-area thin-film fabrication
The Ultrasonic Precision Spray Coater is designed for enterprises, universities, and research institutes requiring advanced ultrasonic spray technology. The system features a sleek, fully functional structure, including:

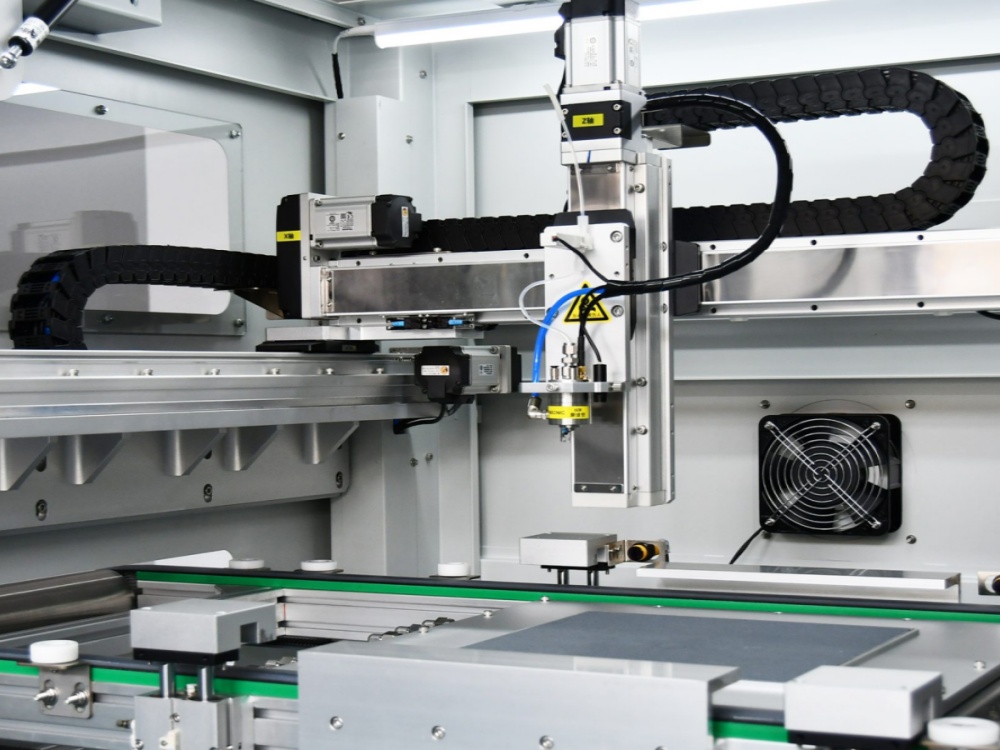

· XYZ Three-Axis Servo Motion System (optional R-axis rotation mechanism for the spray head)
· Comprehensive Trajectory Editing System capable of spraying any 2D pattern (rectangle, circle, triangle, or custom curves)
· Compatibility with all TMAX ultrasonic spray heads
· Precision Constant-Flow Syringe Pump + Laminar Flow Gas Pressure Regulation System
· Automatic Conveyor for continuous coating
· Optional Upgrades:
o Ultrasonic dispersion liquid supply system
o Vacuum-adsorbed heated substrate platform
4× Efficiency Boost
· Achieves 4× higher material utilization than conventional spray methods, significantly reducing costs.
Nanoscale Film Thickness
· Uniform coatings as thin as tens of nanometers with exceptional consistency.
Pressure-Free Atomization
· Utilizes ultrasonic high-frequency vibration (no compressed air), eliminating substrate damage from high-pressure impact.
Industrial-Grade Servo Motors & Sealed Motion Modules
· XYZ axes equipped with imported servo motors and fully enclosed linear screw modules for:
o Extended lifespan
o 0.01 mm repeat positioning accuracy
Conveyor Integration
· Supports automated continuous spraying.
· Viscosity & Solid Content:
o Viscosity ≤30 cps
o Suspension solid content ≤20–30%
· Liquid Supply System:
o Precision syringe pump + biotech-grade injector (0.1 μL/min accuracy)
· Dry Film Thickness: 20 nm–100 μm (solution/substrate-dependent)
· Input Voltage: 220 V±10%, 50–60 Hz
· Solution Conversion Rate: ≥95% (multiple times more efficient than traditional two-fluid nozzles)
· Droplet Size (Avg.): 15–45 μm (frequency-dependent; higher frequency = finer droplets)
· Spray Head Frequency: Configurable for 30–200 kHz systems
· Ultrasonic Dispersion Liquid Supply System:
o Continuously agitates nanoparticles during spraying, minimizing sedimentation and enhancing film uniformity.
· Heated Drying Platform:
o Aerospace-grade perforated aluminum or micro-porous ceramic platform with precise 200°C temperature control.
· Vacuum Adsorption Platform:
o Multi-channel vacuum generator with zone-specific control to secure thin-film substrates without deformation.
· Laser Alignment System: For precise spray head positioning.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
