General Parameters
· Overall Dimensions: 1500 × 1250 × 1900 mm
· Max. Coating Area: 500 × 500 mm

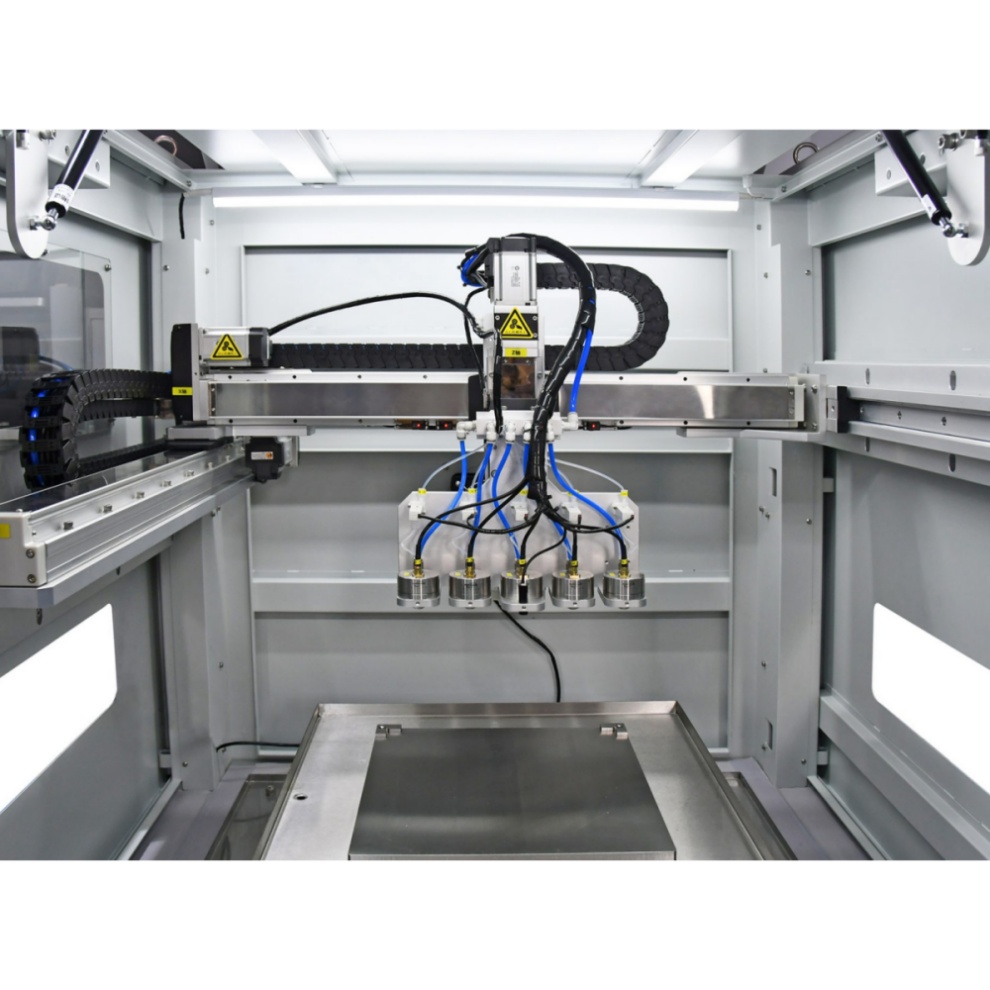

· Motion System: 3-axis (XYZ) servo-driven system with optional R-axis nozzle rotation mechanism
· Control Method: High-precision motion control card / 15.6" HD touchscreen / physical buttons
· Ultrasonic Nozzle: Standard configuration includes 1 set of TMAX ultrasonic nozzle (customizable multi-nozzle setups available)
· Application: Medium-scale production and large-area thin film fabrication

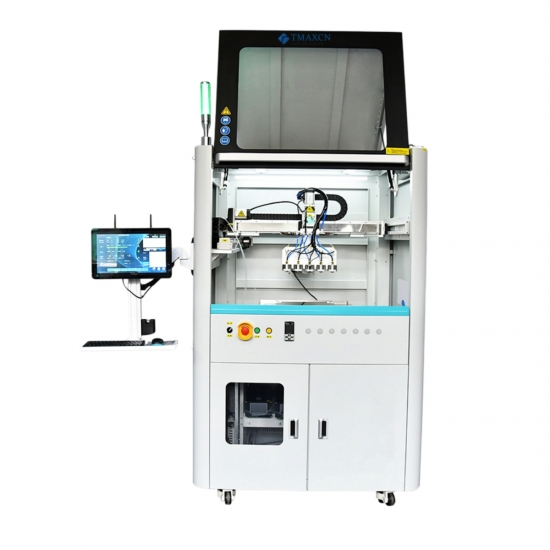

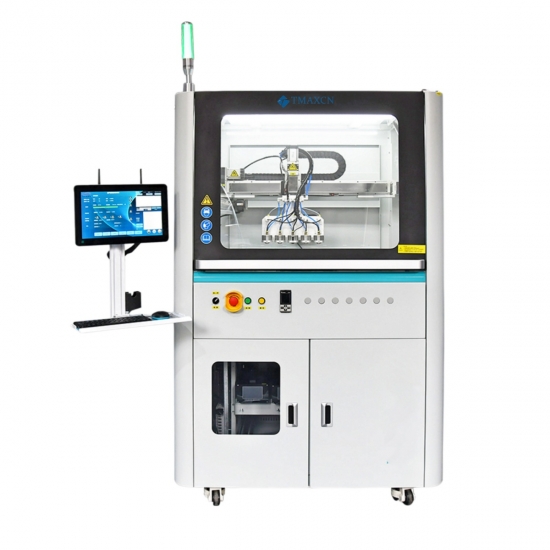

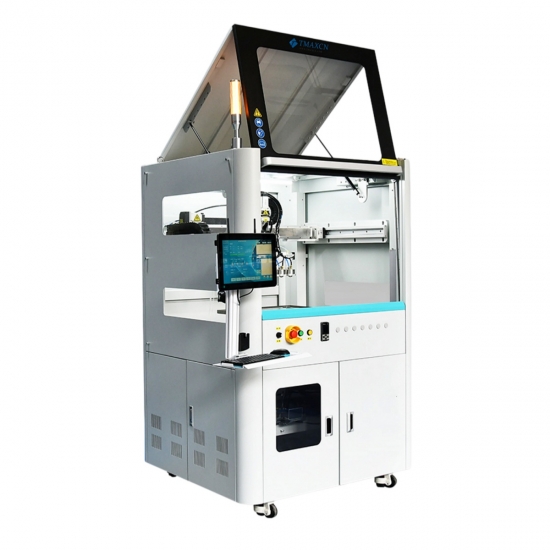

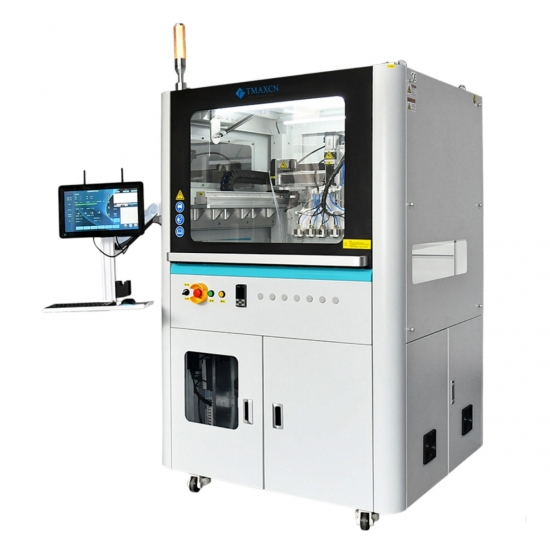

The Ultrasonic Precision Coating System is designed for medium-scale production and large-area thin film fabrication. Featuring a streamlined structure with comprehensive functionality, the system integrates:
· XYZ 3-axis servo motion system (optional R-axis nozzle rotation)
· Advanced trajectory editing software for 2D patterns (e.g., rectangles, circles, triangles, curves)
· Compatibility with all TMAX ultrasonic nozzles
· Precision constant-flow syringe pump + digital display carrier gas system
· Optional upgrades: Ultrasonic dispersion feeding system, vacuum adsorption heated substrate, etc.
4× Efficiency
Ultrasonic atomization achieves up to 4× higher material utilization than conventional spraying, significantly reducing costs.
Nanoscale Film Thickness
Uniform coatings as thin as tens of nanometers with exceptional consistency.
Pressure-Free Atomization
Utilizes high-frequency ultrasonic vibration (no compressed air), eliminating substrate impact from high-pressure gas.
Premium Servo Motors & Enclosed Motion Modules
· Imported servo motors for all XYZ axes
· Fully enclosed linear screw modules with 0.01mm repeat positioning accuracy
· Extended operational lifespan
Ultrasonic Dispersion System
Optional TMAX dispersion feeder prevents particle sedimentation.
Control System
· Dedicated TMAX ultrasonic spray control software
· Integrated management of ultrasonic atomization, dispersion, syringe pump, carrier gas, heating stage, and vacuum adsorption
· Features:
o One-click template trajectory generation
o G-code editing for complex paths
Standard Configuration
· Viscosity & Solid Content: ≤30 cps (suspensions ≤20–30% solids)
· Liquid Delivery: Precision syringe pump + biomedical-grade injector (0.1 μL/min accuracy)
· Dry Film Thickness: 20 nm – 100 μm (solution/substrate-dependent)
· Input Voltage: 220V ±10%, 50–60 Hz
· Solution Conversion Rate: ≥95% (multiple times higher than conventional two-fluid nozzles)
· Droplet Size: 15–45 μm avg. (frequency-dependent; higher frequency = smaller droplets)
· Nozzle Frequency: 30–200 kHz (multiple options available)
Optional Upgrades
1. Ultrasonic Dispersion Feeding System
o Continuous nanoparticle dispersion during spraying
o Reduces sedimentation and enhances film uniformity.
2. Heated Drying Platform
o Aerospace-grade perforated aluminum or microporous ceramic platform
o Precise temperature control up to 200°C.
3. Vacuum Adsorption Platform
o Multi-channel vacuum generator with zone control
o Secures thin-film substrates without deformation.
4. Nozzle Alignment Device
o Laser-assisted precision alignment.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
