Specifications:
· Overall Dimensions:
Main unit: 800×500×690mm
With injection pump: 1080×500×690mm
· Maximum Coating Area: 200×200mm
· Motion System: 3-axis automation with programmable motion trajectories
· Control Method: High-precision motion card/physical buttons
· Ultrasonic Spray Head:
Standard: 1 set of any TMAX ultrasonic spray head (customizable for multiple sets)
· Applications:
Qualitative experiments in scientific research laboratories, small-batch production, and thin-film fabrication
Overview:

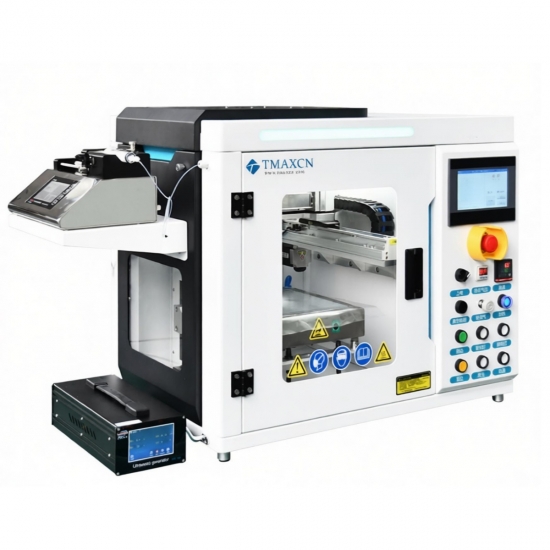

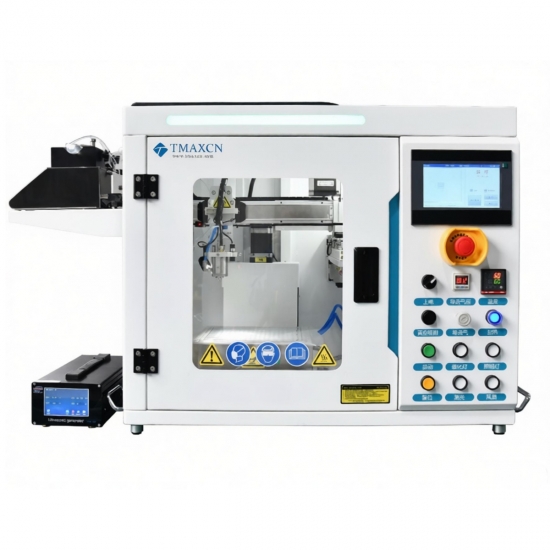

The basic ultrasonic precision spray coater is designed for enterprises, universities, and research institutes new to ultrasonic spray technology. The equipment features a simple yet elegant structure with comprehensive functionality, including:
· XYZ 3-axis precision motion modules
· A versatile trajectory editing system capable of 2D planar patterns (rectangles, circles, triangles, or curves)
· Compatibility with all TMAX ultrasonic spray heads
· Precision constant-flow injection pump
· Digital display carrier gas system
· Optional ultrasonic dispersion liquid supply system and vacuum adsorption heating substrate
· Suitable for use in fume hoods
Advantages:
1. 4× Efficiency:
Ultrasonic atomization spray achieves up to 4× higher material utilization than conventional methods, significantly reducing material costs.
2. Nanoscale Film Thickness:
Capable of producing ultra-thin films as thin as tens of nanometers with exceptional uniformity.
3. Pressure-Free Atomization:
Utilizes high-frequency ultrasonic vibration for atomization without compressed air, eliminating substrate impact from high-pressure gas.

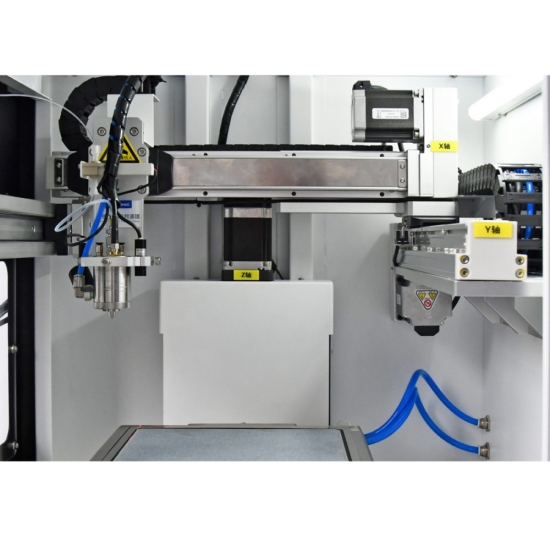

Precision Motion Module:
· XYZ axes equipped with stepper motors
· Fully enclosed linear screw modules for extended lifespan
· Repeat positioning accuracy: 0.01mm

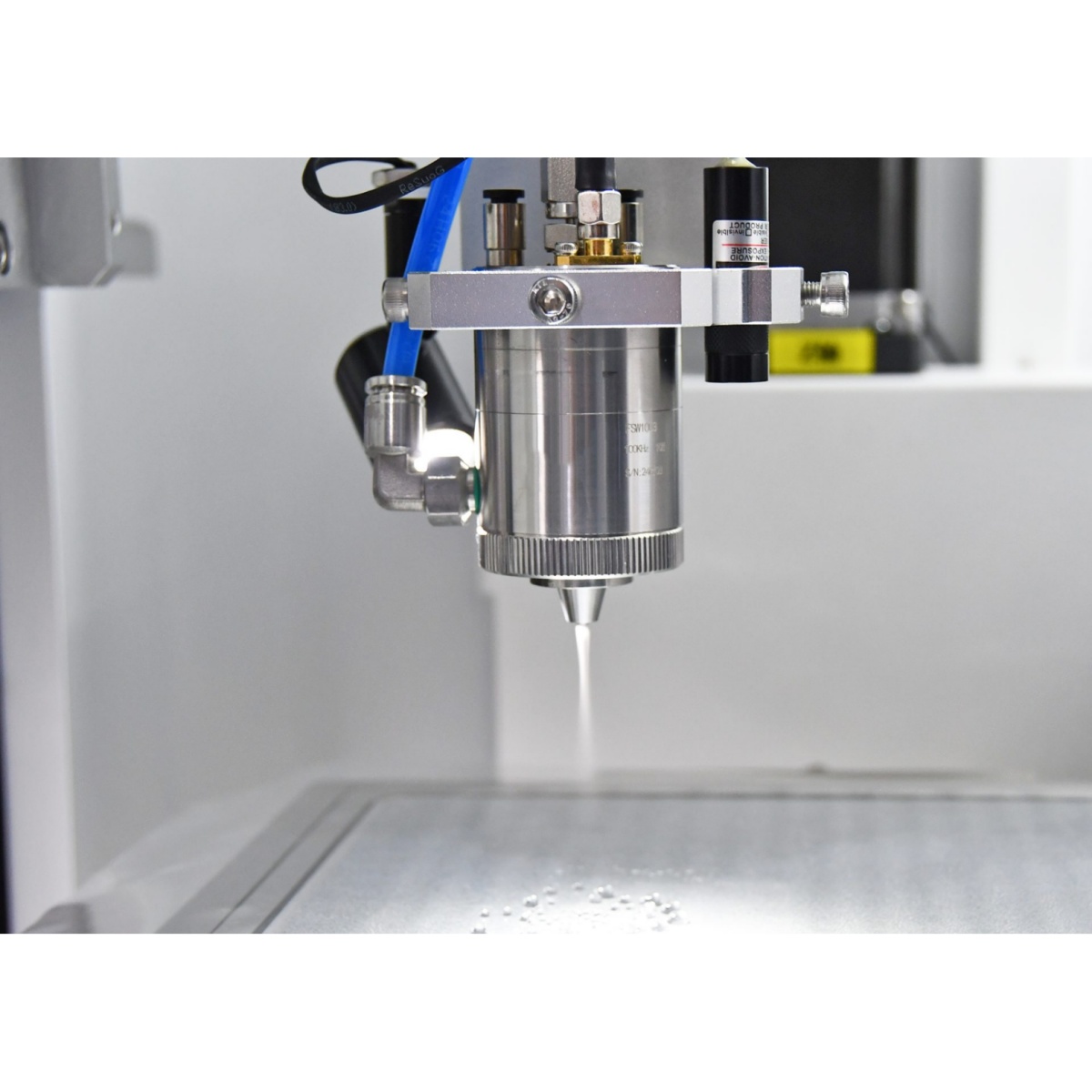

Ultrasonic Spray Head System:
TMAX offers dozens of ultrasonic spray head models to meet various working conditions and film thickness requirements.
Operating System:
· TMAX's dedicated control system for ultrasonic spraying
· User-friendly interface with integrated control for:
o Ultrasonic atomization/dispersion
o Injection pump
o Carrier gas
o Heating stage
o Vacuum adsorption plate
· Features:
o One-click template trajectory generation
o G-code complex trajectory editing
Standard Configuration:
|
Parameter |
Specification |
|
Viscosity & Solid Content |
Viscosity ≤30cps; Suspension solid content ≤20-30% |
|
Liquid Supply System |
Precision injection pump + bio-grade sampler (accuracy: 0.1μL/min) |
|
Dry Film Thickness |
20nm-100μm (solution/substrate dependent) |
|
Input Voltage |
220V±10%, 50-60Hz |
|
Solution Conversion Rate |
≥95% (multiple times higher than conventional two-fluid pneumatic spray) |
|
Atomized Particle Size |
15-45μm average (frequency-dependent: higher frequency yields smaller particles) |
|
Spray Head Frequency |
Configurable 30-200KHz systems |
Optional Configurations:
|
Configuration Option |
Specifications |
|
Ultrasonic Dispersion Liquid Supply System |
Continuously disperses nanoparticles during spraying, reducing sedimentation and improving film uniformity |
|
Heated Drying Platform |
- Perforated aviation aluminum or precision microporous ceramic platform - Precise temperature control up to 200°C |
|
Vacuum Adsorption Platform |
- Multi-channel vacuum generator with zone control - Prevents substrate deformation during thin-film processing |
|
Spray Head Alignment Device |
Laser alignment system |
|
Custom Configurations |
Available upon request |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
