ItemNo :
Lith-FS03HMOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days
· Overall Dimensions: 1100 × 850 × 1150 mm
· Coating Area: 300 × 300 mm (Max: 400 × 400 mm)
· Motion System: XYZ 3-axis programmable for arbitrary planar trajectories
· Control Method: PLC-controlled with LCD touchscreen and physical buttons
· Ultrasonic Nozzle: Standard with 1 set of TMAX ultrasonic nozzles (customizable multi-nozzle configurations)
· Applications: Qualitative research in laboratories, small-batch production, and thin-film fabrication

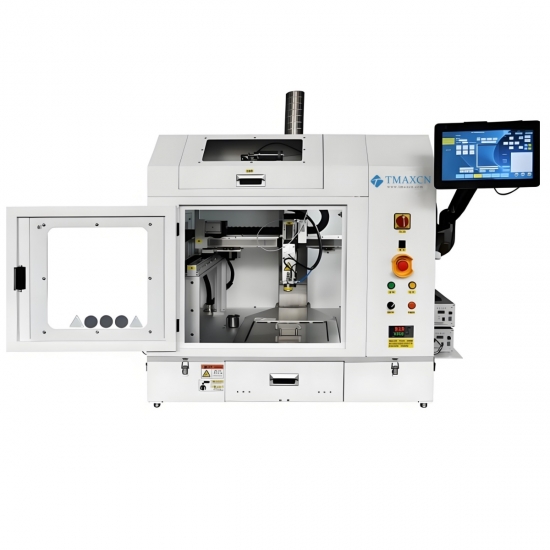

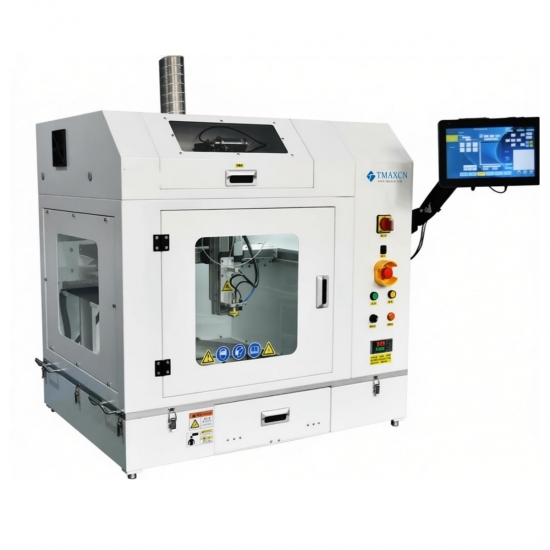

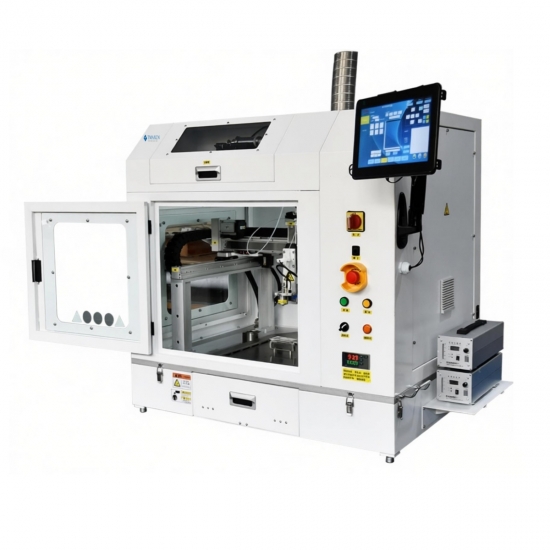

The high-temperature ultrasonic precision spray coater features a high-accuracy heated platform with temperature control precision of ±0.1°C, supporting multi-stage temperature programming (up to 500°C). Post-power interruption, the system resumes either from the point of failure or restarts the program.
Designed with a streamlined structure and comprehensive functionality, the equipment integrates:
· XYZ 3-axis precision motion modules
· Versatile trajectory editing system for 2D patterns (rectangles, circles, triangles, or curves)
· Compatibility with all TMAX ultrasonic nozzles
· Precision constant-flow syringe pump
· Digital display gas delivery system
· Optional upgrades: Ultrasonic dispersion feeding system, vacuum-adsorption heated substrate, etc.
1. Ultra-High Material Utilization
o Achieves several times higher efficiency than conventional spray methods, significantly reducing material costs.
2. Nanoscale Film Thickness
o Deposits films as thin as tens of nanometers with exceptional uniformity.
3. Pressure-Free Atomization
o Utilizes ultrasonic vibration (no compressed air), eliminating substrate impact from high-pressure gas.
4. Imported Servo Motors & Fully Enclosed Motion Modules
o XYZ axes employ imported servo motors and sealed linear screw modules, ensuring 0.01mm repeat positioning accuracy and extended lifespan.
5. Ultrasonic Nozzle System
o TMAX offers dozens of nozzle variants for diverse operational requirements and film thicknesses.
6. Control System
o Proprietary TMAX software for intuitive operation, integrating:
§ Ultrasonic atomization/dispersion
§ Syringe pump/gas flow/heating stage/vacuum chuck control
§ One-click preset trajectory templates & G-code editing for complex paths.
7. High-Precision Heated Platform
o ±0.1°C temperature control, multi-stage programming, and heating up to 500°C.
|
Category |
Specifications |
|
Standard Configuration |
|
|
Viscosity & Solid Content |
≤30cps viscosity; ≤20% solid content for suspensions |
|
Feeding System |
Precision syringe pump + bio-grade injector (0.1μL/min accuracy) |
|
Dry Film Thickness |
20nm–100μm (solution/substrate-dependent) |
|
Input Voltage |
220V±10%, 50–60Hz |
|
Solution Conversion Rate |
≥95% (multiple times higher than traditional two-fluid nozzles) |
|
Atomized Particle Size |
Avg. 15–45μm (frequency-dependent; higher frequency = finer particles) |
|
Nozzle Frequency |
Compatible with 20–180kHz systems |
|
Optional Configurations |
|
|
Ultrasonic Dispersion Feeding System |
Continuously disperses nanoparticles during spraying, minimizes sedimentation, and enhances film uniformity. |
|
Heated Drying Platform |
Stainless steel heating plate with precision control up to 500°C. |
|
Nozzle Alignment Device |
Laser-guided positioning for rapid substrate alignment. |
|
Custom Options |
Tailored configurations available upon request. |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
