ItemNo :
TMAX-FS04YMOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

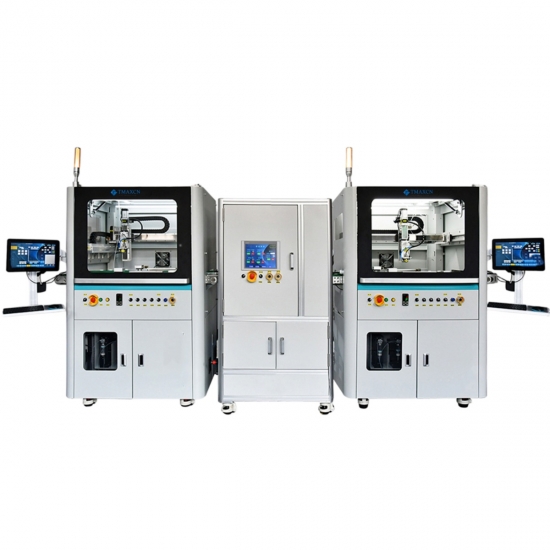

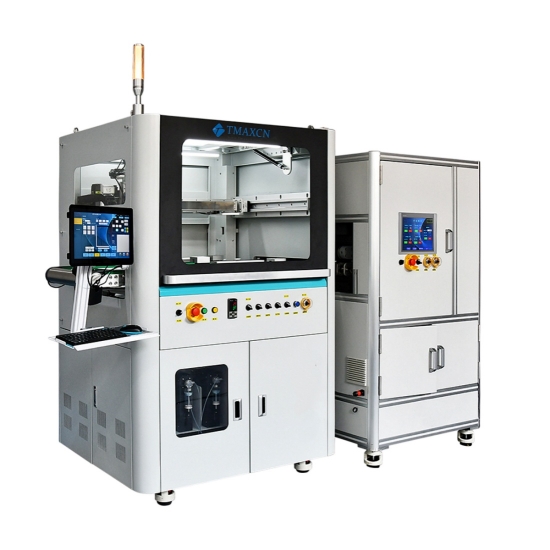

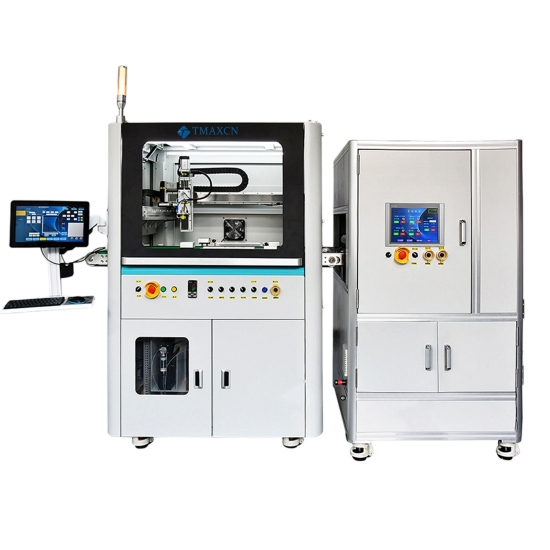

· Main Unit Dimensions: 1500 × 1250 × 1900 mm | Flipping Device Dimensions: 1000 × 900 × 1800 mm
· Maximum Coating Area: 500 × 500 mm
· Motion System: XYZ three-axis servo system, programmable for any planar trajectory
· Control Method: PLC-controlled, with LCD touchscreen and physical buttons

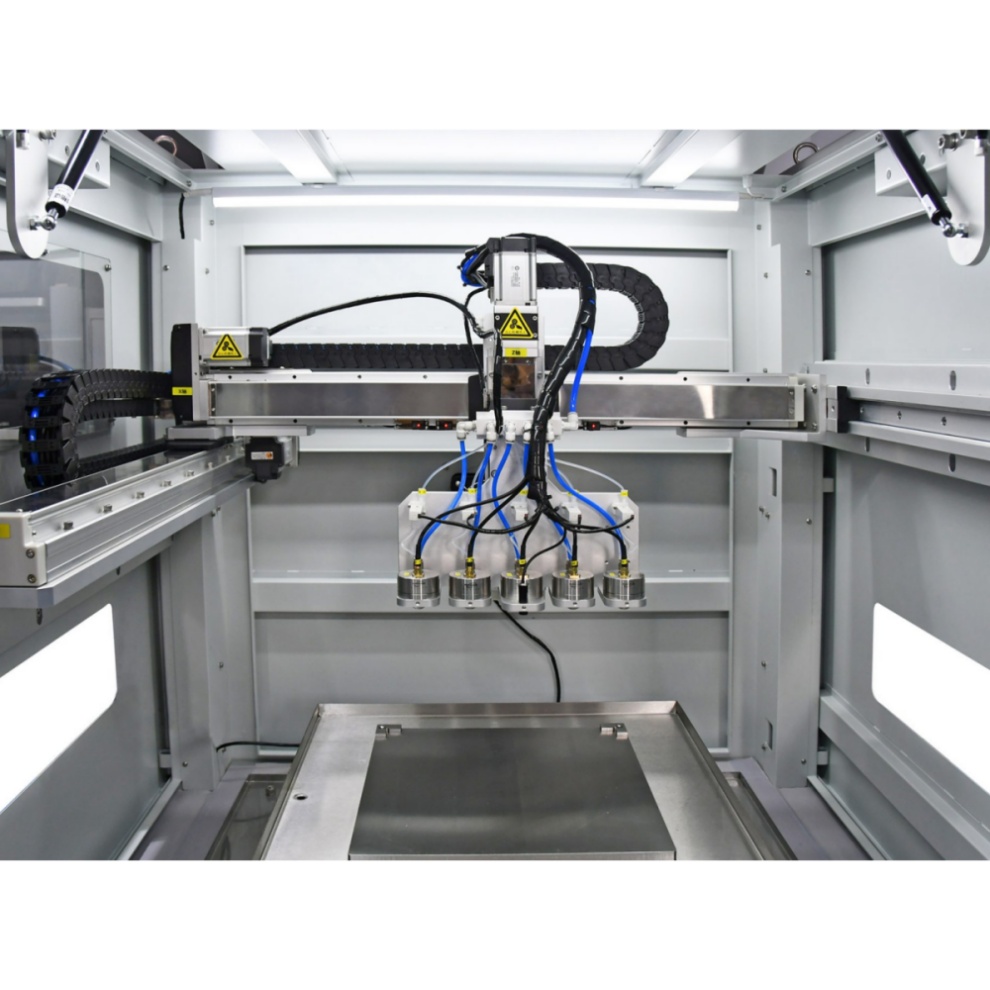

· Ultrasonic Spray Head: Standard configuration includes 1 set of TMAX ultrasonic spray head (customizable for multiple sets)
· Application: Suitable for medium-scale production and large-area dual-side thin-film fabrication
The Ultrasonic Precision Spray Coating Machine is designed for enterprises, universities, and research institutes specializing in ultrasonic spray technology. The machine features a streamlined yet fully functional structure, comprising:
· XYZ three-axis servo motion system (optional R-axis spray head rotation mechanism)
· Comprehensive trajectory editing system, supporting any 2D planar pattern (e.g., rectangle, circle, triangle, or curve)
· Compatibility with all TMAX ultrasonic spray heads, paired with:
o Precision constant-flow syringe pump
o Precision adjustable gas flow pressure system
o Automatic flipping device for dual-side spraying
· Optional upgrades:
o Ultrasonic dispersion liquid supply system
o Vacuum-adsorbing heated substrate
· Achieves 4× higher material utilization than conventional spraying, significantly reducing costs.
· Produces ultra-thin films as fine as tens of nanometers with exceptional uniformity.
· Utilizes ultrasonic high-frequency vibration (no compressed air required), eliminating substrate damage from high-pressure impact.
· XYZ axes employ imported servo motors and fully enclosed linear screw modules, ensuring:
o Extended lifespan
o Repeat positioning accuracy of 0.01 mm

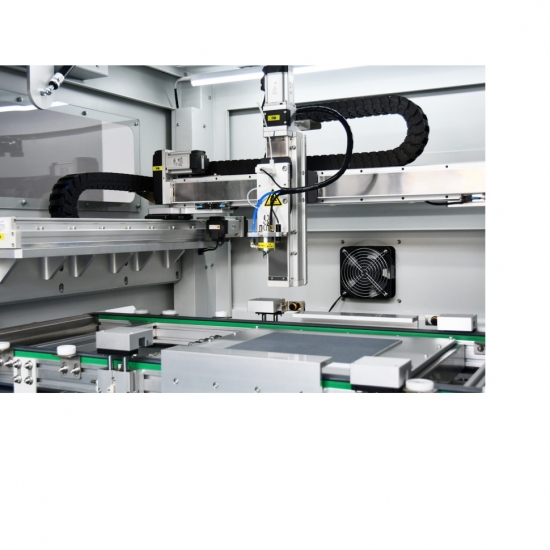

· Equipped with auto-flipping conveyor for seamless dual-side coating.
· TMAX proprietary control system integrates:
o Ultrasonic atomization/dispersion
o Syringe pump
o Gas flow regulation
o Heating stage
o Vacuum adsorption plate
· Features:
o One-click template trajectory generation
o G-code complex path editing
· Viscosity & Solid Content: ≤30 cps viscosity; ≤20–30% solid content (for suspensions)
· Liquid Supply: Precision syringe pump + bio-grade injector (0.1 μL/min accuracy)
· Dry Film Thickness: 20 nm – 100 μm (solution/substrate-dependent)
· Input Voltage: 220 V ±10%, 50–60 Hz
· Solution Conversion Rate: ≥95% (multiple times higher than traditional two-fluid spray heads)
· Atomized Particle Size: 15–45 μm average (frequency-dependent; higher frequency = smaller particles)
· Spray Head Frequency: Configurable for 30–200 kHz systems
1. Ultrasonic Dispersion Liquid Supply System
o Continuously disperses nanoparticles during spraying, minimizing sedimentation and enhancing film uniformity.
2. Heated Drying Platform
o Aerospace-grade porous aluminum or precision microporous ceramic platform (≤200°C precise temperature control).
3. Vacuum Adsorption Platform
o Multi-channel vacuum generator with zonal control to prevent substrate deformation.
4. Spray Head Alignment Device
o Laser alignment for precision positioning.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
