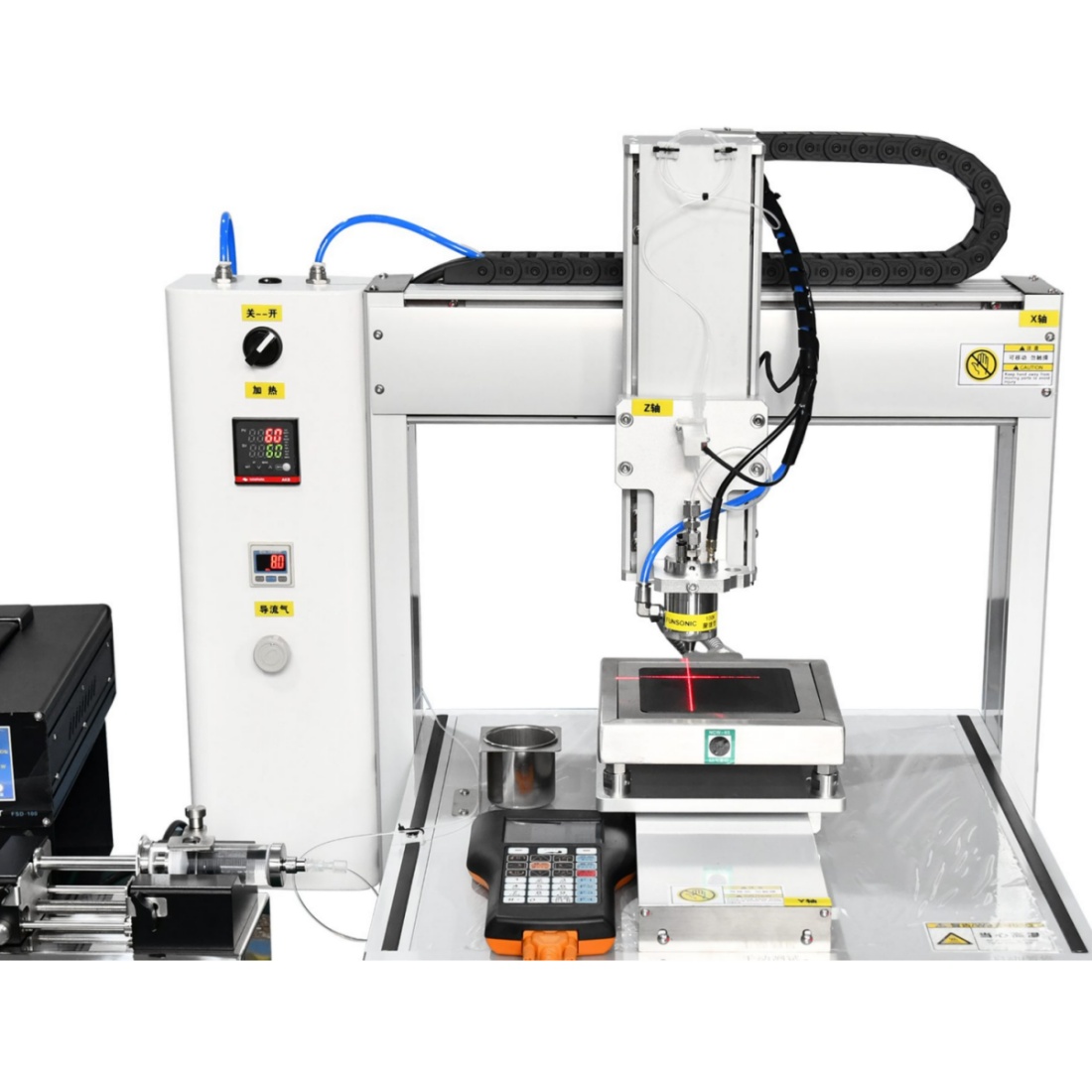

Model: Lith-FS01-Basic Ultrasonic Spray Coater
· Overall Dimensions: 750 × 600 × 650 mm
· Coating Area: 100 × 100 mm (Customizable)
· Motion System: XYZ Three-Axis Movement (Vertical/Front-Back/Left-Right)
· Control Method: Handheld Motion Controller – Physical Buttons
· Ultrasonic Spray Head: Standard with 1 set of any TMAX ultrasonic spray head (Supporting multi-head customization)
· Applications: Qualitative research experiments in labs, small-batch production, thin-film fabrication

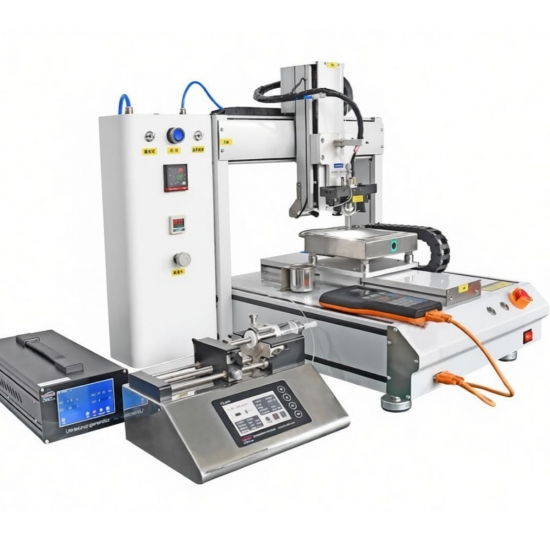

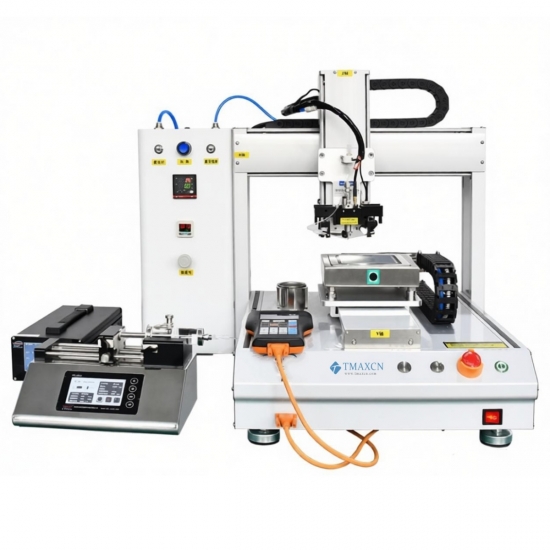

The TMAX-FS01 Ultrasonic Spray Coating Machine is designed for enterprises, universities, and research institutes entering ultrasonic spray coating technology. Featuring a sleek and functional design, it incorporates a high-precision XYZ three-axis motion module paired with an advanced trajectory editing system, enabling versatile 2D planar coating patterns (rectangles, circles, triangles, curves).
Compatible with all TMAX ultrasonic spray heads, the system integrates a precision syringe pump and digital gas flow control. Optional upgrades include:
· Ultrasonic dispersion feeding system
· Vacuum-adsorbed heated substrate
✔ Ultra-High Material Utilization
· Achieves multiple times higher efficiency than conventional spraying, significantly reducing material costs.
✔ Nanoscale Film Thickness
· Deposits ultra-thin films (as low as tens of nanometers) with exceptional uniformity.
✔ Nozzle-Free Atomization
· Utilizes ultrasonic high-frequency vibration (no compressed air), eliminating substrate impact from high-pressure gas.
✔ Domestic Stepper Motor & Motion Module
· XYZ axes driven by stepper motors and ball screw modules, ensuring 0.01mm repeat positioning accuracy and extended lifespan.
✔ Versatile Ultrasonic Spray Head System
· FUNSONIC offers dozens of spray heads (20–180 kHz) for diverse coating requirements.
✔ User-Friendly Handheld Controller
· Equipped with a 320×240 high-resolution color screen and full Chinese UI for intuitive operation.
· Viscosity & Solid Content: ≤30 cP (solid content ≤20% for suspensions)
· Feeding System: Precision syringe pump + bio-grade injector (0.1 μL/min accuracy)
· Dry Film Thickness: 20 nm – 100 μm (solution/substrate-dependent)
· Input Voltage: 220V ±10%, 50–60 Hz
· Solution Conversion Rate: ≥95% (several times higher than traditional two-fluid nozzles)
· Droplet Size: Avg. 15–45 μm (smaller droplets at higher frequencies)
· Spray Head Frequency: Compatible with 20–180 kHz systems
Ultrasonic Dispersion Feeding System
· Continuous nanoparticle agitation prevents sedimentation, enhancing film uniformity.
Heated Drying Platform
· Aerospace-grade aluminum or micro-porous ceramic platform with ±200°C precision (higher temps customizable).
Vacuum Adsorption Platform
· Multi-channel vacuum generator for warp-free substrate fixation.

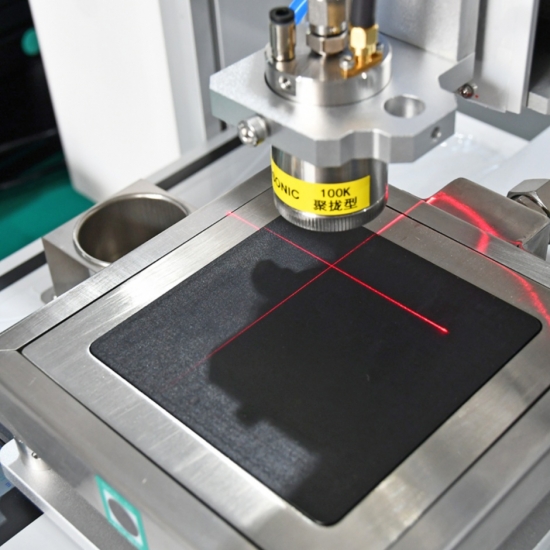

Laser Alignment Device
· Ensures rapid and precise spray positioning.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
