ItemNo :
Lith-CF07MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

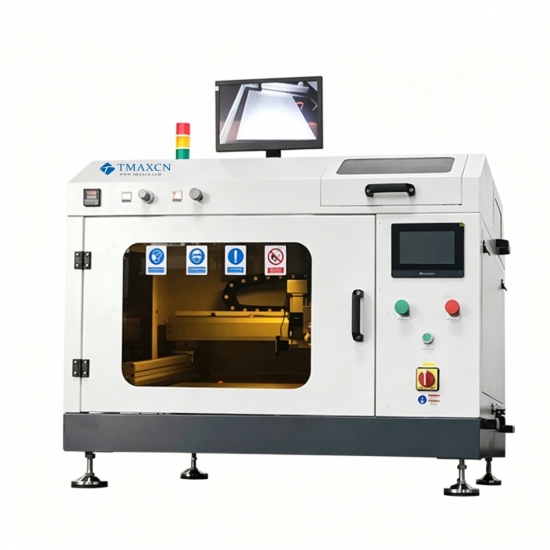

The CF07 Advanced ultrasonic intelligent coating equipment incorporates cutting-edge technology to achieve highly uniform, ultrathin, and precisely controlled film deposition, with real-time process monitoring via a teaching pendant. It is widely applied in fuel cell proton exchange membrane coating, thin-film solar cells, nanomaterial modification, glass coating, and other industries.
Key Features
Equipped with advanced ultrasonic technology, this system delivers superior film uniformity, minimal thickness, and exceptional process control, with real-time monitoring via a laser-guided teaching system. It integrates multiple subsystems: ultrasonic atomization, carrier gas, heated stage, vacuum adsorption, exhaust emission, and a laser alignment system. Compatible with a full range of ultrasonic nozzles, the system supports small-to-medium area thin-film fabrication and spray pyrolysis applications, making it ideal for precision coating processes.
Primary Applications:
· Fuel cell proton exchange membrane coating
· Thin-film solar cells
· Nanomaterial modification
· Glass coating
Advantages:
✔ Suitable for R&D and small-batch production
✔ Compact benchtop design for easy mobility
✔ Material utilization rate up to 95%
✔ High coating uniformity (±5% deviation)
✔ Effective coating area: 400mm × 400mm
Target Industries:
· Electronics
· New Energy
· Biomedical
· Glass
· Textiles/Nonwovens
· Nanotechnology
Features & Specifications
|
Category |
Details |
|
Key Features |
• Delivers uniform and efficient thin-film deposition (minimum thickness: tens of nanometers) • Precise flow control for ultra-low flow rate spraying • High-accuracy thickness control • Liquid utilization rate >95% • Clog-resistant nozzles • Portable benchtop design • Supports both experimental and production-scale requirements • Highly controllable process for reliable, repeatable results |
|
Technical Parameters |
• Dimensions: 1260 (L) × 850 (W) × 950 (H) mm • Coating Area:* 400 × 400 mm (*Customizable) • Power Supply: 120V/220V ±10%, 50–60Hz • Ultrasonic Nozzles: Compatible with multiple nozzle types • Control System: 7-inch HMI (Human-Machine Interface) • Additional Components: Heated/Vacuum stage • Certifications: CE, FDA |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
