ItemNo :
Lith-CF06MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days
We provide customized solutions tailored to cutting-edge industries, including:
· Nanotechnology
· Fuel cells
· Semiconductor coatings
· Medical coatings
· Spray pyrolysis
Our services encompass:
✔ Full-spectrum functional coating solutions with long-term technical support for stable mass production.
✔ Custom R&D for specialized equipment coatings.
✔ OEM coating services for diverse applications.

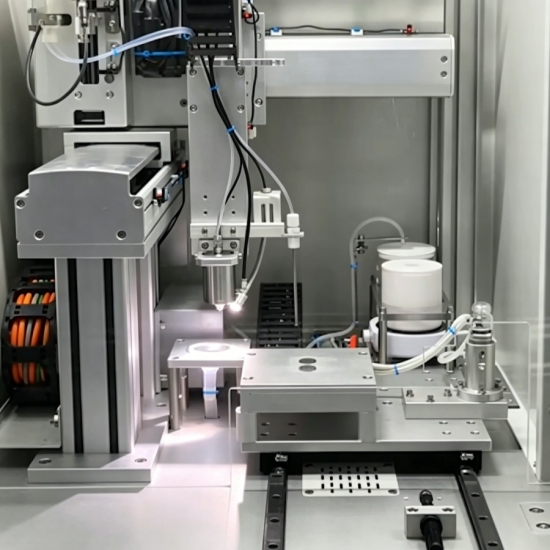

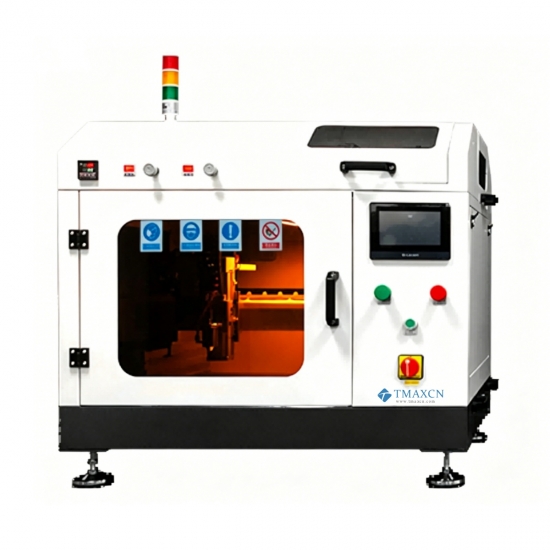

A high-tech system delivering uniform, ultra-thin, and precisely controlled film coatings. Features real-time monitoring via a teaching device.
|
Component |
Function |
|
Ensures fine atomization for even coating. |
|
|
Carrier gas system |
Enhances spray precision and control. |
|
Heating stage |
Optimizes substrate temperature for adhesion. |
|
Vacuum adsorption |
Secures substrates during coating. |
|
Exhaust system |
Safely removes fumes. |
|
Laser teaching system |
Facilitates precise nozzle alignment. |
· Fuel cell proton exchange membrane spraying
· Thin-film solar cells
· Nano-modified material coating
· Glass coating
· Spray pyrolysis
· ✅ R&D and small-batch production compatible
· ✅ Compact desktop design for easy mobility
· ✅ Material utilization rate up to 95%
· ✅ Uniform coating stability: ±5% thickness variance
· ✅ Effective spray area: 400mm × 400mm
· Uniform thin-film spraying (as thin as tens of nanometers).
· Precise flow control, enabling ultra-low-flow spraying.
· High thickness control accuracy.
· Liquid utilization >95%.
· Clog-resistant spray head.
· Portable benchtop design.
· Suitable for lab and industrial use.
· Highly controllable spraying for reliable, repeatable results.
|
Parameter |
Specification |
|
Dimensions |
1260 × 850 × 950 mm |
|
Spray area* |
400 × 400 mm (*Customizable) |
|
Power supply |
120V / 220V ±10%, 50–60Hz |
|
Ultrasonic nozzles |
Compatible with multiple nozzle types |
|
Control interface |
7-inch HMI |
|
Heating/vacuum plate |
Standard |
|
Certifications |
CE, FDA |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
