Louis@lithmachine.comPouch Cell Flattening Equipment for Pre-Sealing Stage
Application

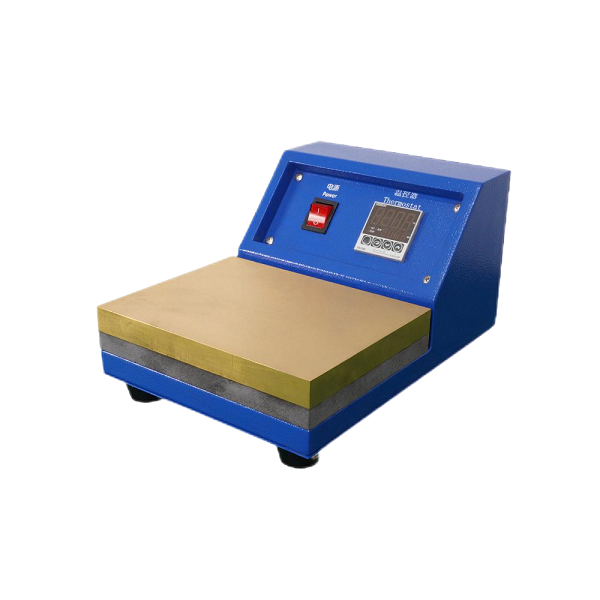

The LITH-TP200 Pouch Cell Edge Flattening Machine is designed for edge ironing and reshaping of pouch-type lithium ion battery aluminum-laminated films after folding. It ensures a neat and flat appearance, enhancing the aesthetic and structural quality of the battery edges.
· Imported temperature controller (Omron) enables precise control of heating plate temperature, adjustable from room temperature to 250°C.
· Safe anti-scalding design, with temperature adjustable via digital control panel.
· Copper heating platform, offering excellent heat conductivity, energy efficiency, and high work efficiency.
· Compatible with various pouch cell sizes, providing flexible application.
· Attractive design, featuring three-dimensional sheet metal structure for a clean, modern look.
· Compact machine size, producing uniform and smooth ironing results with high visual quality.
|
Parameter |
Specification |
|
Ironing Platform Size |
L200mm × W155mm |
|
Temperature Range |
0–250°C ±2°C (Adjustable, digital display) |
|
Heating Element Power |
250W |
|
Power Supply |
AC220V / 50Hz |
|
Total Power Consumption |
1.5KW |
|
Machine Dimensions |
L280mm × W200mm × H165mm |
|
Machine Weight |
20kg |
|
Heating System |
Copper heating platform |
|
Key Electrical Components |
Omron temperature controller & solid-state relay |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
|
|
|
|
|
|
|
|
|
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
