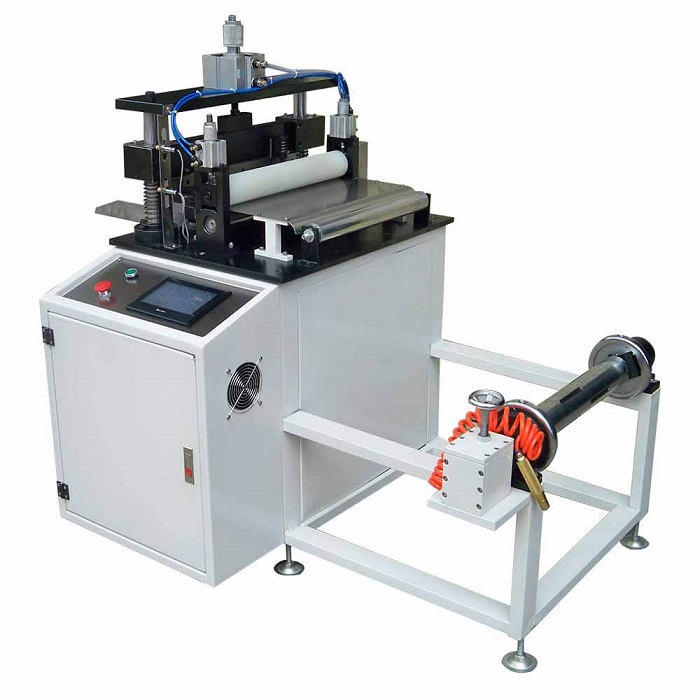

Battery Electrode Cutting Machine for Cylindrical Cell and Aluminum Laminated Film
Features:
1. The Automatic shear cutting machine is used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cut big electrode is more easy for slitting or punching to small pieces for battery making.
2.This cutter machine can also used for aluminum laminated film cutting.
3. TMAX-EC-CM model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
Specification:
|
Model |
LITH-EC-CM |
|
Source voltage |
AC 220V/110V, 50HZ/60HZ |
|
Power |
1500W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Max electrode width |
500mm(The cutting length can be arbitrarily set) |
|
Cutting length |
0.25-10m(adjustable) |
|
Cutting thickness |
80-300um |
|
Cutting quantity |
1-99999 free settings |
|
Cutting material |
Battery continuous or clearance cathode and anode electrode Aluminum laminated film |
|
Cutting speed |
1-8m/min,adjustable |
|
Cutting accuracy |
± 0.25mm |
|
Setting accuracy |
± 0.5mm |
|
Trimming precision |
+ 0.5mm |
|
Dimension(L*W*H) |
1200*1000*1100mm |
|
Weight |
About 400kg |
Other Features:
Import stepping motors and drives
1Set
Magnetic particle tension control mechanism
1Set
Taiwan WeiLun touchscreen and Panasonnic PLC
1Set
Transmission roller and steel roller
1Set
Ø75 inflatable shaft
1Set
Material pressing cylinder
1Set
Acrylic cutting cylinder
1Set
Magnetic powder clutch
1Set
Photoelectric eye
1Set
Cut-off knife:SKD11
1Set
Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
Related Machine
|
|
|
|
|
|
|
Electrode Slitting |
Welding Power: 80-6500W optional |
Lab cylindrical cell grooving machine |
Manual Sealing or Pneumatic Sealing Machine |
8 Channel Battery Tester
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
