ItemNo :
Lith-CF02MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

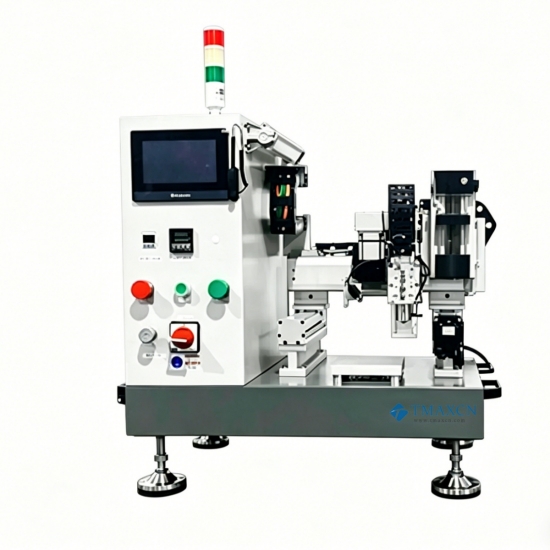

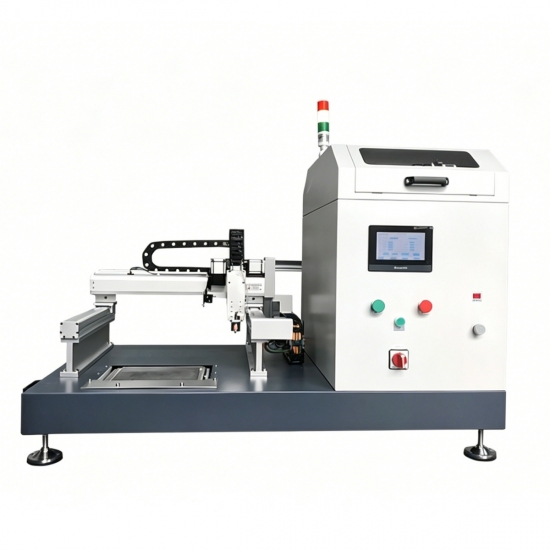

The CF02 Ultra-High-Temperature Ultrasonic Spray Pyrolysis System is designed for applications requiring moderate high-temperature drying, spray pyrolysis, spray drying, and substrate coating, with a surface temperature capability of up to 600°C. This system enables the preparation of uniform thin-film coatings, including:
· Indium Tin Oxide (ITO)
· Aluminum-doped Zinc Oxide (AZO)
· Zinc Oxide (ZnO)
· Fluorine-doped Oxide Layers
We provide tailored solutions for cutting-edge industries, including:
|
Industry |
Applications |
|
Nanotechnology |
Functional thin films, nanocomposites |
|
Fuel Cells |
Electrode coatings, catalyst layers |
|
Semiconductors |
Conductive/insulating layers |
|
Medical Coatings |
Biocompatible films, drug delivery |
|
Spray Pyrolysis |
Precursor decomposition, oxide films |
· Full-spectrum support: End-to-end solutions for functional coatings, ensuring stable mass production.
· R&D customization: Specialized coating development for unique instrument requirements.
· OEM services: Comprehensive coating processing for diverse industrial needs.
· Uniform thin-film deposition: Achieves coatings as thin as tens of nanometers.
· Precise flow control: Stable spraying even at ultra-low flow rates.
· High thickness accuracy: Exceptional control over coating uniformity.
· >95% liquid utilization: Minimizes waste and reduces operational costs.
· Clog-resistant ultrasonic nozzle: Ensures uninterrupted operation.
· Compact benchtop design: Portable and space-efficient.
· Scalability: Suitable for both R&D and production-scale demands.
· Repeatable results: Highly controllable spraying for consistent performance.
· Electronics
· New Energy
· Biomedical
· Glass
· Textiles/Nonwovens
· Nanotechnology
|
Parameter |
Details |
|
Dimensions |
520 × 500 × 640 mm |
|
Coating Area* |
200 × 200 mm (customizable) |
|
Power Supply |
120V/220V (±10%), 50–60 Hz |
|
Nozzle Options |
Multiple ultrasonic nozzles available |
|
Motion System |
XYZ 3-axis precision control |
|
Heating/Vacuum |
Integrated heated/vacuum plate |
|
Certifications |
CE, FDA |

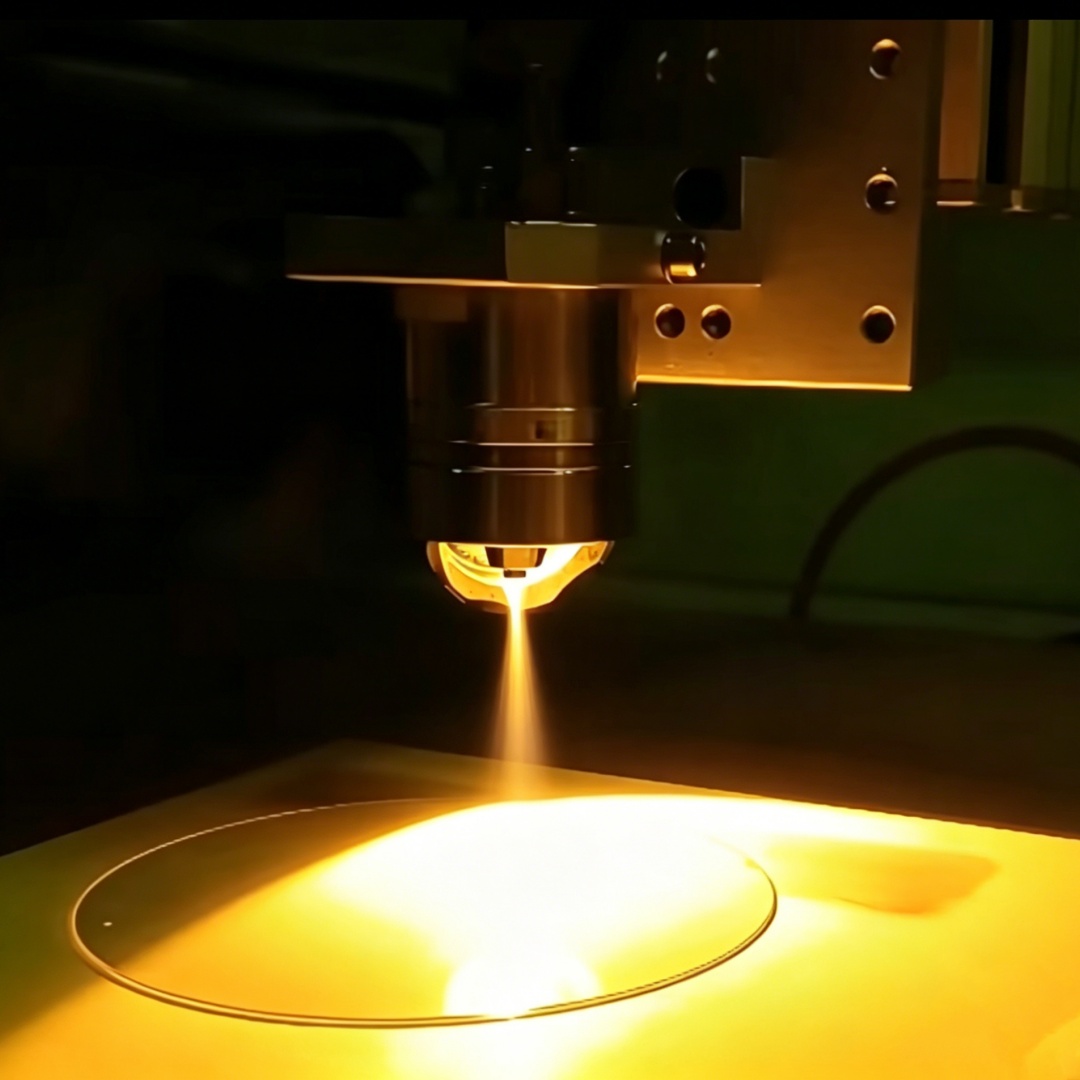

· Ultrasonic nozzle technology: Enables nanoscale misting for perovskite, dye-sensitized, and organic solar cell research/production.
· 600°C thermal stability: Ensures dense, homogeneous coatings for transparent conductive layers in displays, sensors, and flexible electronics.
· Process versatility: Supports spray pyrolysis, dry deposition, and precursor decomposition for ceramics and functional oxides.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
