ItemNo :
Lith-CF04MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

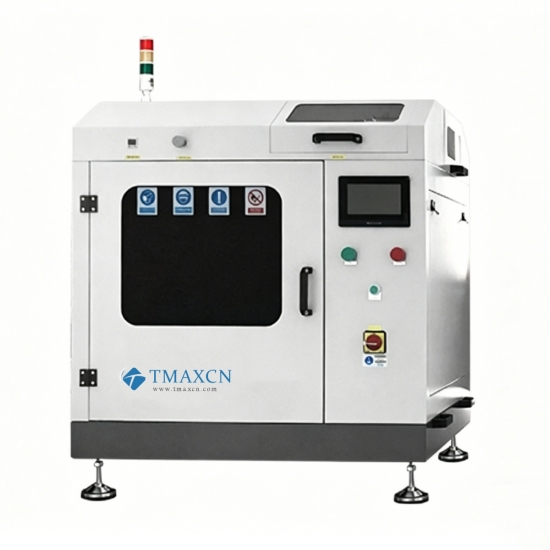

The CF04 High-Temperature Ultrasonic Spray Coating System is a precision R&D ultrasonic spray coater, featuring:
· XYZ servo motion system
· Liquid delivery pump
· Optional vacuum heating plate
Fully customizable ultrasonic nano-particle spray equipment tailored to process requirements (e.g., spray particles, volume).
The CF04 integrates the latest global spray and control technologies:
· Desktop ultrasonic spray system with modular components:
o Nozzle options: Focused, wide-spray, or scattered ultrasonic nozzles.
o Accessories: Precision metering pump, carrier gas controller, base heating plate, vacuum chuck, exhaust system.
· Ideal for: R&D labs and small-area thin-film production.
Technology Advantages:

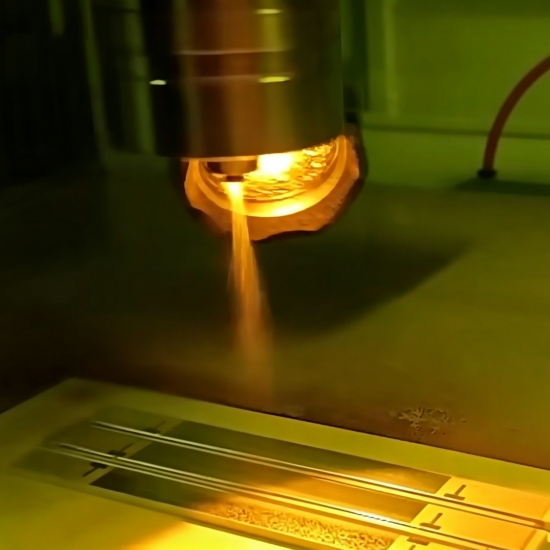

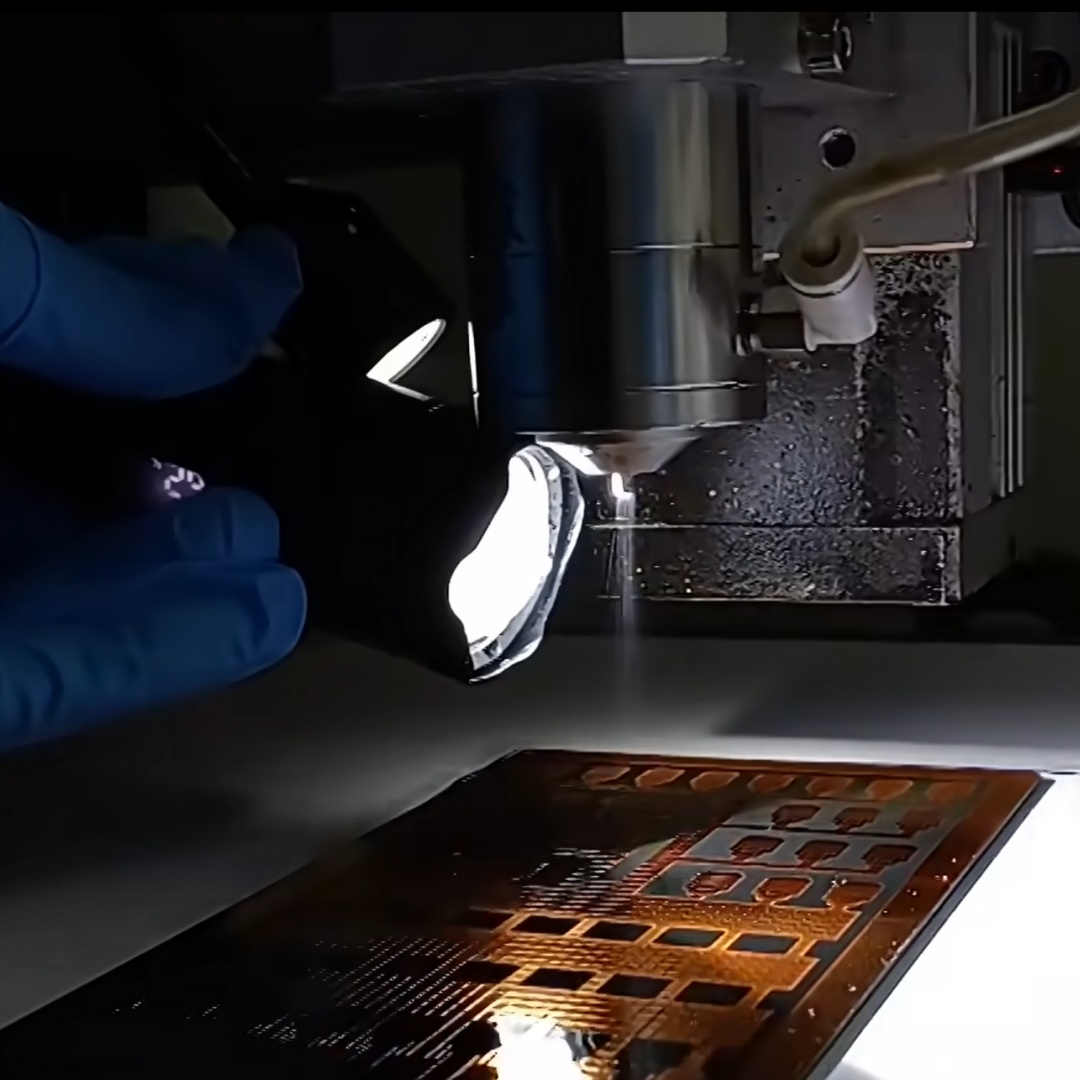

· Ultrasonic high-frequency oscillation generates uniform micron-sized droplets.
· vs. Traditional Two-Fluid Nozzles:
|
Parameter |
Ultrasonic Nozzle |
Two-Fluid Nozzle |
|
Coating Uniformity |
Superior |
Moderate |
|
Thickness Control |
Precise (sub-micron) |
Less precise |
|
Clogging Risk |
Low |
High |
|
Material Utilization |
>95% |
~25% |
|
Gas Pressure Requirement |
kPa-level (minimal) |
Higher pressure needed |
· Electronics
· New Energy
· Biomedical
· Glass
· Textiles/Nonwovens
· Nanotechnology
· Uniform, high-efficiency spraying (film thickness down to tens of nanometers).
· Precise flow control (operates at ultra-low flow rates).
· High thickness accuracy.
· >95% liquid utilization rate.
· Clog-resistant nozzles.
· Compact benchtop design (portable).
· Suitable for both R&D and production.
· Highly repeatable results.
|
Parameter |
Specification |
|
Dimensions |
1200L × 950W × 900H mm |
|
Spray Area* |
300 × 300 mm (customizable) |
|
Power Supply |
120V/220V, ±10%, 50–60Hz |
|
Nozzle |
Cheersonic multi-nozzle compatible |
|
Control Interface |
7-inch HMI |
|
Heating/Vacuum Plate |
Included |
|
Certifications |
CE, FDA |
*Note: Spray area customizable upon request.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
