Layer By Layer Electrode Stacking Machine For Pouch Cell Research

Layer By Layer Electrode Stacking Machine For Pouch Cell Research

  • Product Details

Layer By Layer Electrode Stacking Machine For Pouch Cell Research

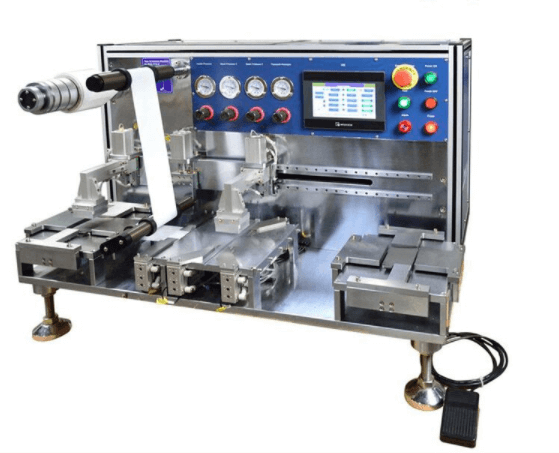

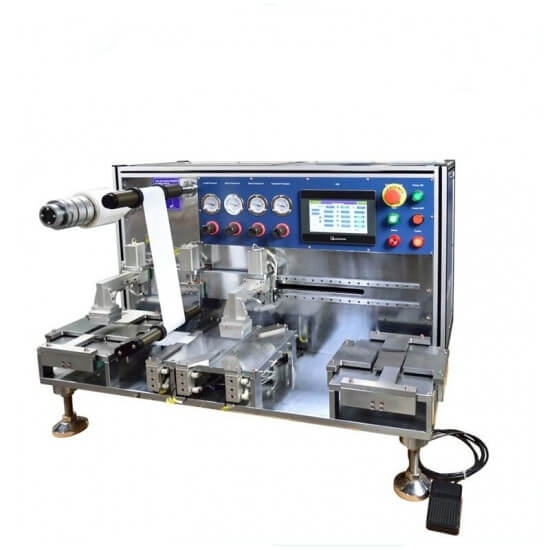

The equipment realizes manual loading, subsequent electrode position correction and lamination. The stacking process is completed automatically. It has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture. It is very suitable for the R&D and sample production of stacking type lithium-ion battery. The equipment adopts single cantilever structure design, separator automatic constant tension control and automatic correction control.


Features

*The number of stacking layer can be automatically controlled according to the preset;

*The compatibility design is adopted, and the change of battery size can be realized by adjusting the positioning fixture, with a large adjustment range;

*PLC control, HMI operation, easy to use and maintain;

*Electrode manual loading, automatic positioning, manipulator automatic suction and automatic stacking;

*Separator automatic servo constant tension control.

*Separator automatic photoelectric correction control.


Technical parameters

Working Voltage

AC220V/110V, 50/60Hz

Power

0.6kw

Stacking mode

Z fashion

Operation mode

Manual feeding, manipulator picking up electrodes automatically, automatic separator pulling

Stacking accuracy

≤±0.3mm

Stacking size range

Min.L30mm *W30mmMax. L160mm*W160mm(standard)

Larger compatible size is available upon request at extra cost

Stacking thickness

Max.10mm(can be customized)

Number of stacking

Max. 500 layers adjustable

Separator coil diameter

Max. 250mm

Separator core

3-inch roll core, air expansion shaft clamping

Tension control

Automatic servo constant tension control

Separator correction

Automatic photoelectric correction control

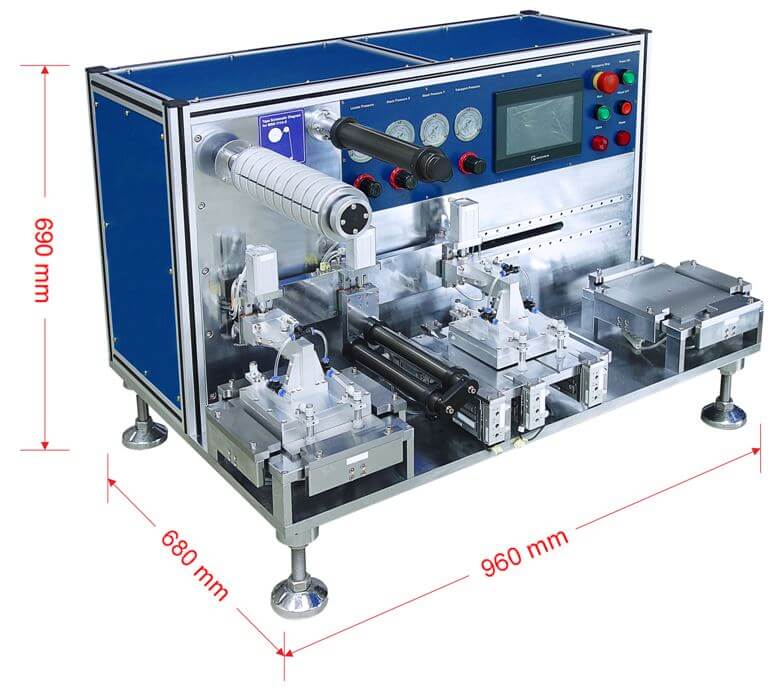

Machine dimensions

L1000mm*W780mm*H750mm

weight

About 400Kg

Gas source

0.5~0.8MPa compressed air






Electrode Stacking Machine

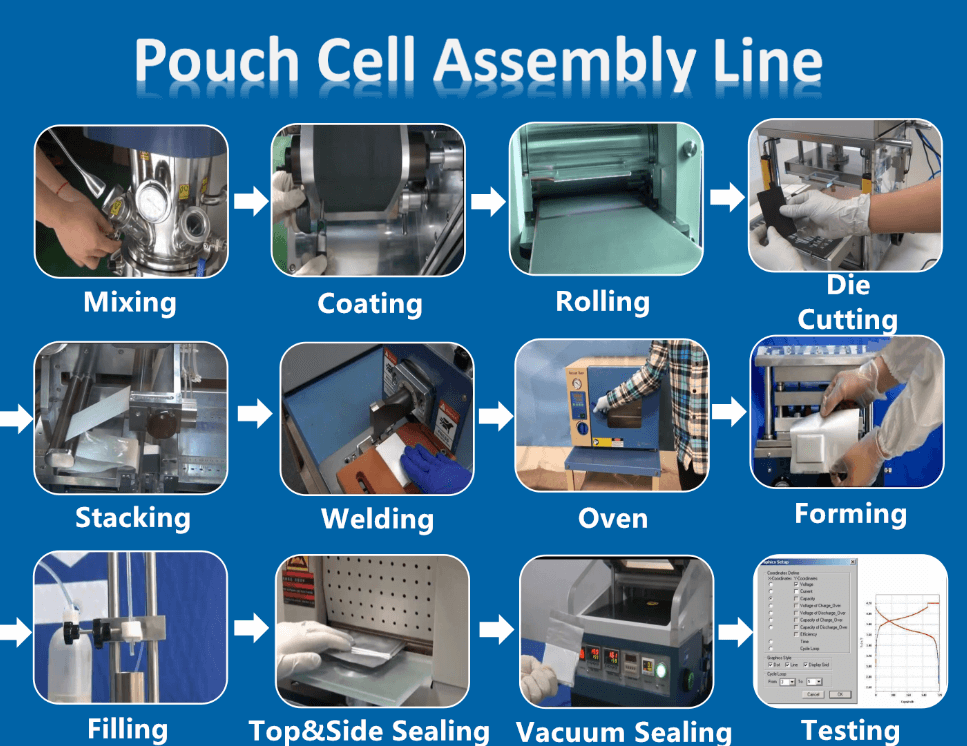

Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer




For the pouch cell assembly, we also recommend you the following items:










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
