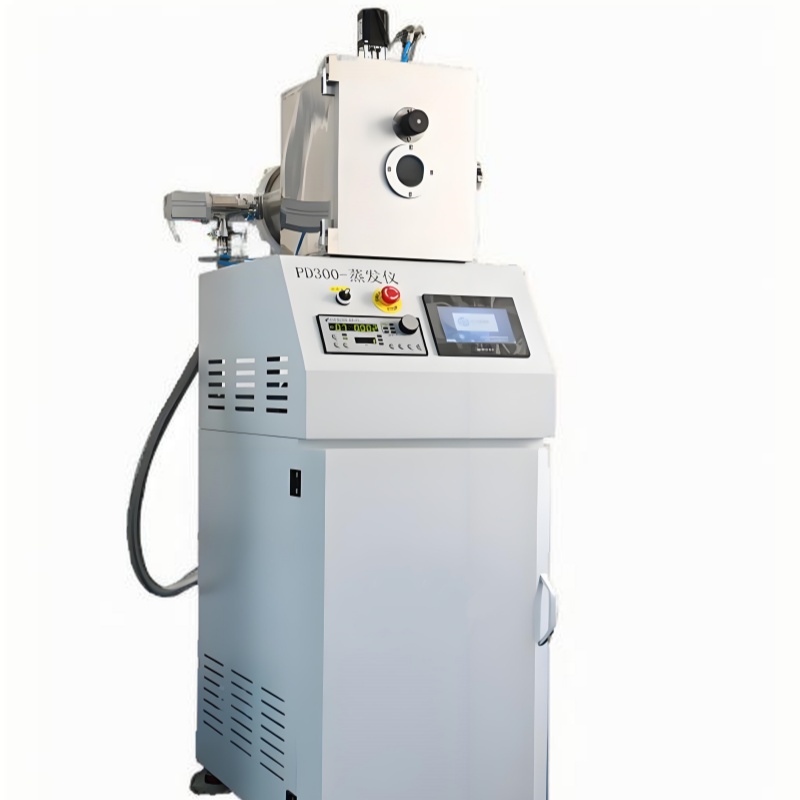

Lab Benchtop Physical Vapor Deposition Coating Equipment Thin Film Evaporator
PD-300-Thin Film Evaporator
The PD-300 system adopts an oil-free high-vacuum system with a large pumping-speed molecular pump, featuring an integrated electromechanical design for minimal lab space occupancy. It supports compatible metal and organic evaporation sources, offering high cost-effectiveness and user-friendly operation. Ideal for research institutes, electrode deposition, SEM sample preparation, and studies in OLED/solar cell technologies.
1. Broad Application Scope
Optimized for evaporating noble metals (e.g., Au, Ag) in electrode preparation and semiconductor lift-off processes, reducing material waste.
2. Space-Saving & Durable

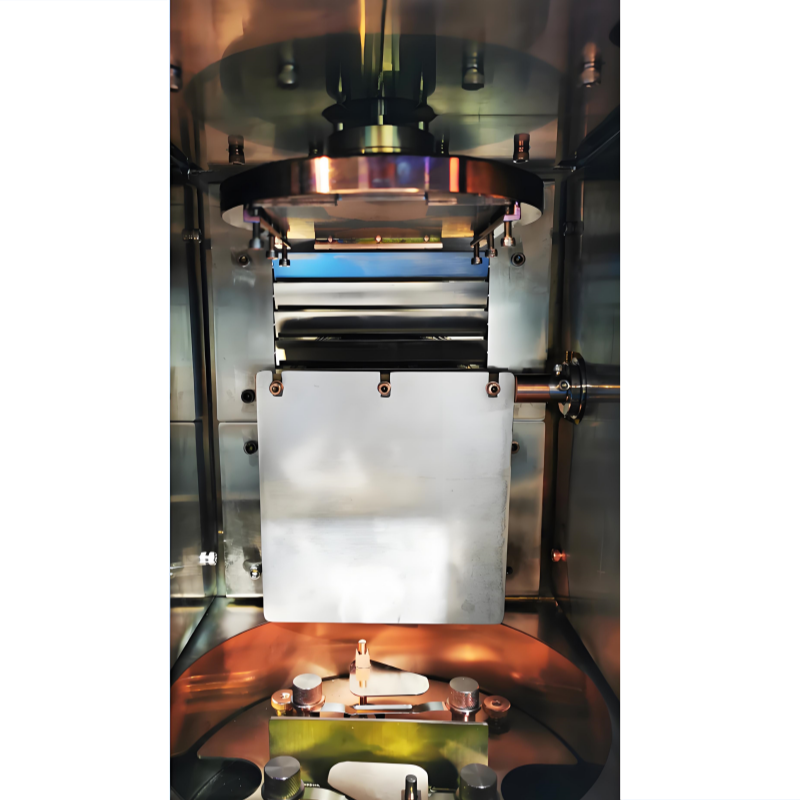

Compact footprint (550×900 mm) with a full stainless-steel vacuum chamber for enhanced durability and safety.
3. High-Efficiency Vacuum System
Oil-free molecular pump (≥300 L/s pumping speed) allows flexible installation angles, shortened pumping paths, and faster processing.
4. Multi-Source Compatibility
Configurable with 2–4 evaporation sources (metal/organic), supporting co-evaporation or sequential deposition.
5. Precision Control
Constant-current evaporation power supply, in-situ thickness monitoring, and excellent film uniformity (±3–5%) with high repeatability.
6. Upgradability
Optional non-stop venting and full automation control.
|
Category |
Specification |
|
Chamber Dimensions (L×W×H) |
300 × 300 × 450 mm (customizable height) |
|
System Dimensions (L×W×H) |
530 × 750 × 1800 mm (standard) / 1100 × 750 × 1500 mm (alternative) |
|
Ultimate Vacuum |
≤5×10−5 Pa |
|
Base Pressure Holding |
≤5 Pa (12 hrs), ≤8×10−4 Pa (30 min) |
|
Substrate Stage |
≤100 × 100 mm (max. 110 mm substrate or 25×15 mm ITO glass) |
|
Source-Substrate Distance |
>300 mm |
· Metal Sources: 2–3 groups (optional)
· Organic Sources: Beam-source furnace type, temperature-controlled (0–500°C), integrated adjustable baffle (0–15°), 2–3 groups (optional).
· Voltage: AC 220 V/50 Hz (380 V optional)
· Power: ≤6 kW
· Research & Academia: Electrode deposition, SEM/TEM sample preparation.
· Advanced Materials: OLED encapsulation, perovskite solar cell R&D.
· Semiconductor: Metal lift-off processes, thin-film device fabrication.
· Cost-Effective: Reduced material consumption and energy-efficient operation.
· User-Centric: Simplified controls, robust safety features, and modular upgrades.
· Future-Ready: Adaptable to evolving lab needs with optional automation.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
