ItemNo :
Lith-ZHD300MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

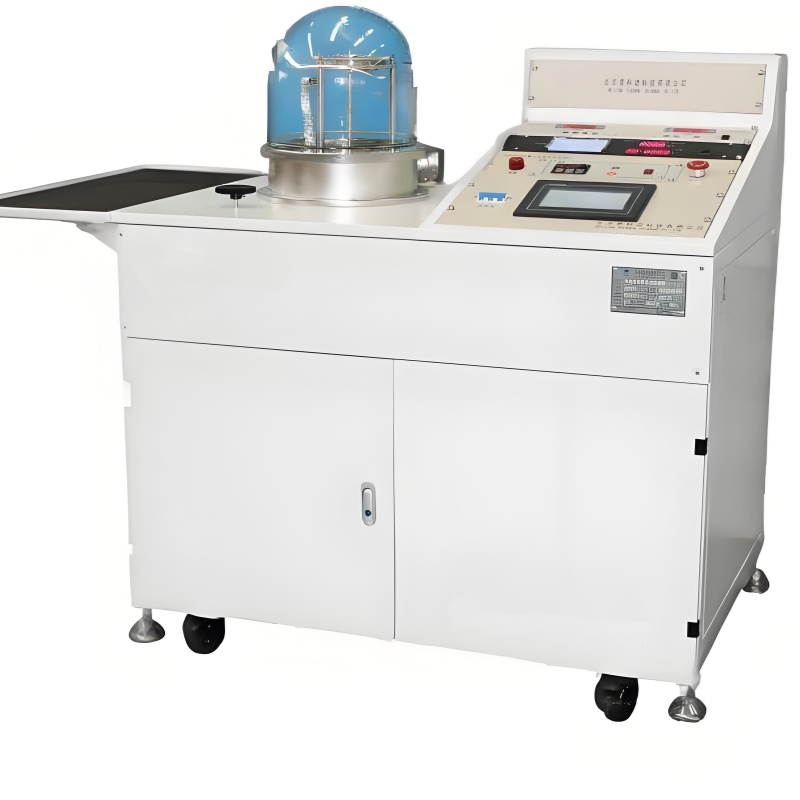

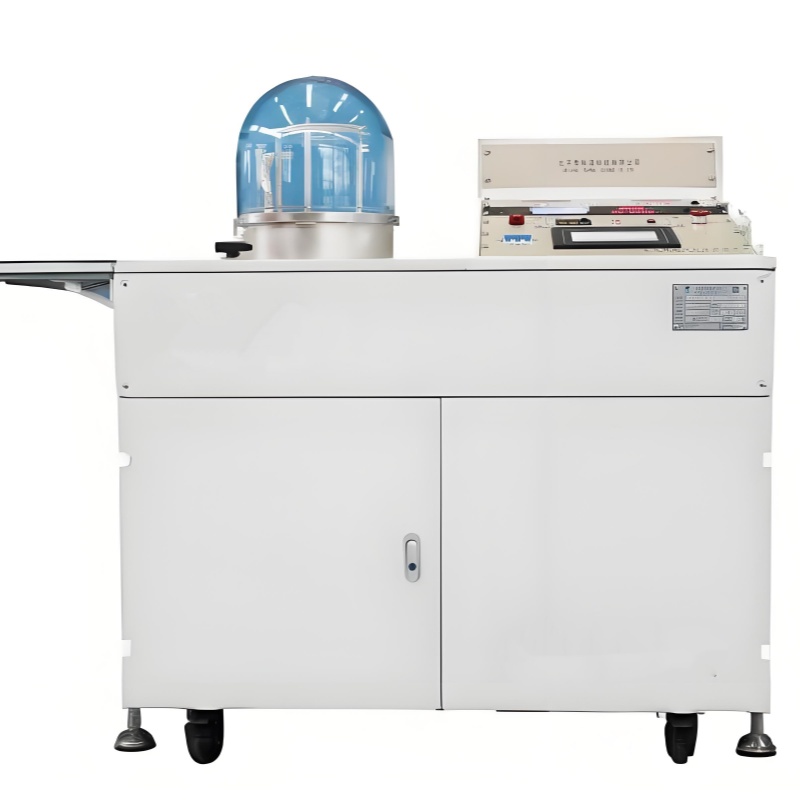

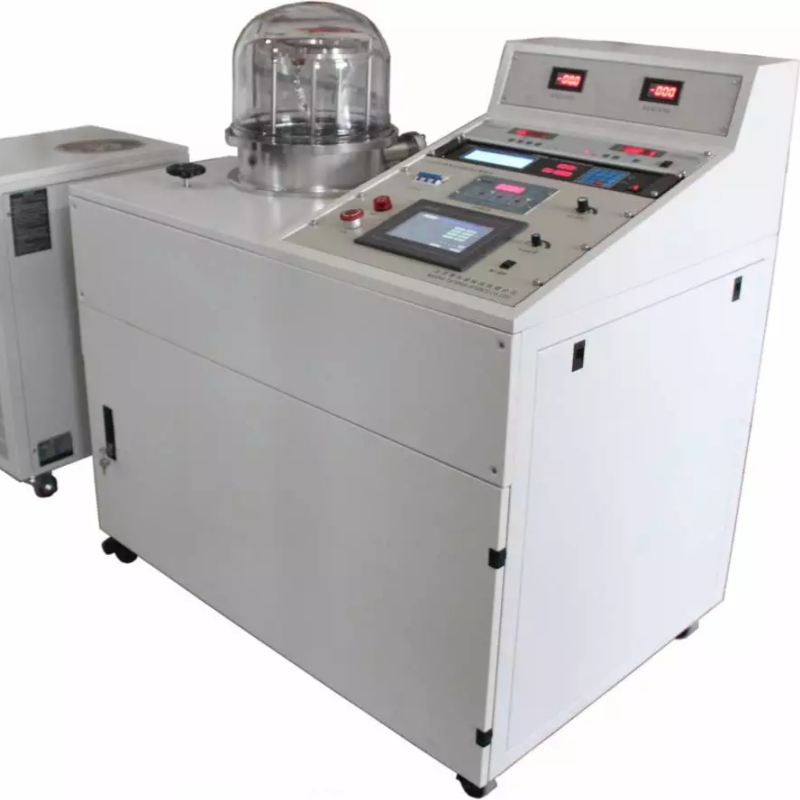

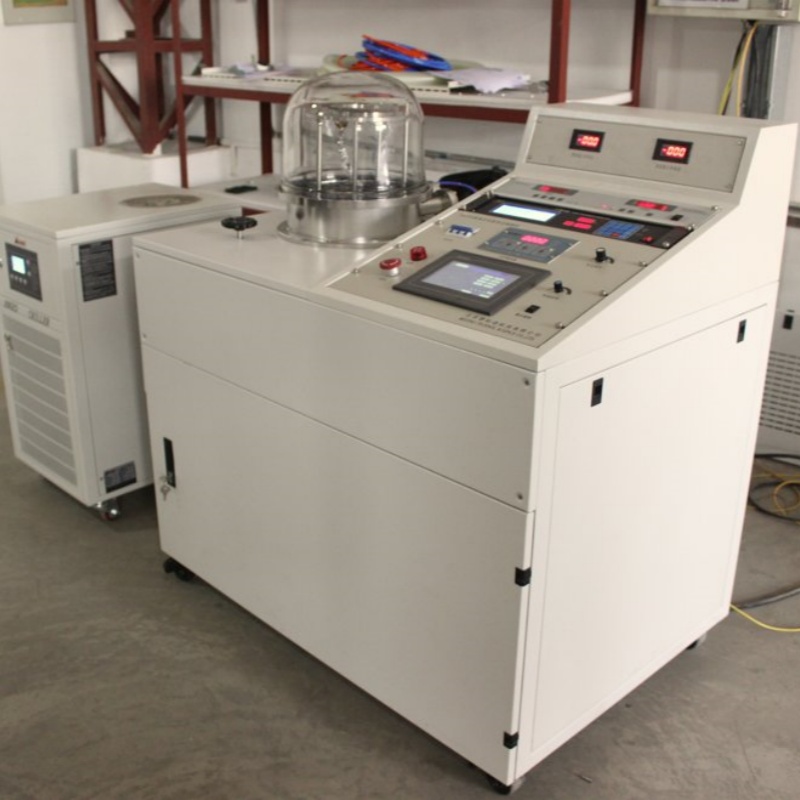

ZHD300-Dual-Source Vacuum Deposition
|
Parameter |
Specification |
|
Model |
ZHD300 |
|
Coating Method |
Multi-source metal evaporation |
|
Vacuum Chamber |
Glass bell jar + stainless steel base |
|
Chamber Dimensions |
Φ300mm × H360mm |
|
Substrate Heating |
Room temperature ~ 250°C |
|
Substrate Size |
Φ100mm |
|
Film Uniformity |
≤ ±5.0% (within Φ80mm area) |
|
Evaporation Sources |
2 independent metal sources |
|
Control System |
PLC + touchscreen interface |
|
Footprint |
L1100mm × W800mm (main unit) |
|
Power Requirement |
≥ 5kW |
· Compared to larger industrial systems, the ZHD300 offers a space-saving integrated design, making it ideal for labs with limited space.
· Lower operational costs due to efficient power usage and minimal maintenance needs.
· Many basic models offer only single-source evaporation, limiting material options. The ZHD300’s dual-source configuration enables:
o Co-evaporation: Producing alloy or doped films (e.g., metal-oxide composites).
o Sequential evaporation: Depositing multilayer structures (e.g., electrode/interlayer/active layers for solar cells).
· Superior to thermal evaporation-only systems, as it supports both organic and inorganic materials.
· ±5% thickness uniformity outperforms many entry-level systems (typically ±8–10%), ensuring research-grade consistency.
· PLC-controlled deposition reduces human error vs. manual systems.
· Unlike conventional stand-alone coaters, the ZHD300 can be integrated with glove-box workflows, critical for:
o Air-sensitive materials (e.g., perovskites, OLED emitters).
o In-line encapsulation, reducing contamination risks.
Application
ZHD300 Advantage
Alternatives
R&D on Solar Cells
Dual-source for graded/stacked layers
Single-source systems lack compositional control
OLED/Thin-Film Research
Organic-Inorganic compatibility
Dedicated organic evaporators (higher cost)
Pilot Production Trials
High uniformity meets pre-production standards
Industrial systems (over-sized for labs)
The ZHD300 bridges the gap between basic lab tools and industrial coaters, offering:
✔ Research versatility – Thin-film exploration with multi-material capability.
✔ Process reliability – Repeatable results for scalable R&D.
✔ Future-ready design – Glove-box integration for next-gen optoelectronics.
Engineered for advanced materials science, where precision meets adaptability.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
