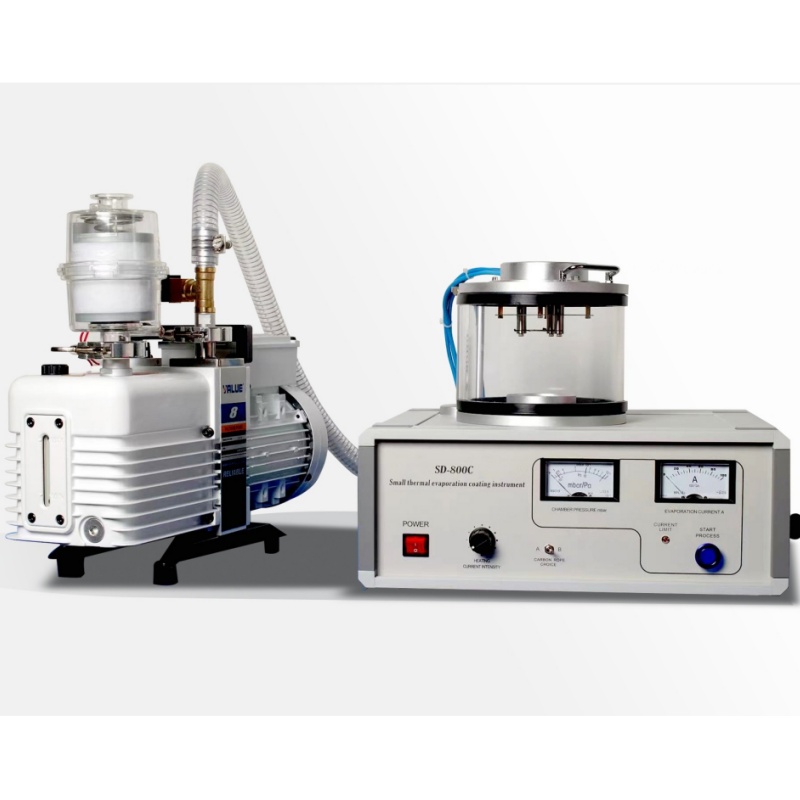

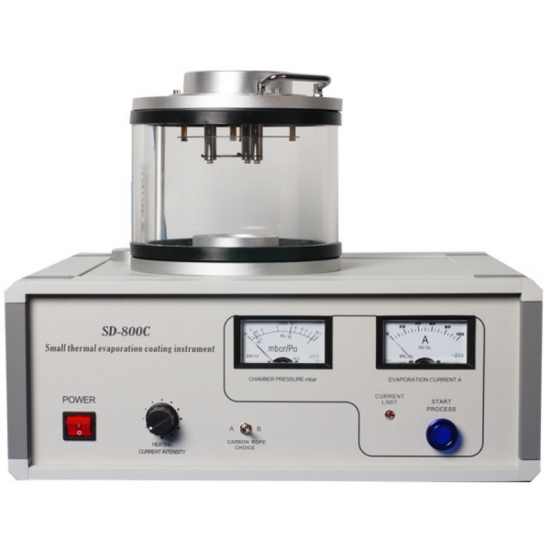

Model: BY-ZD01-Nanoscale Carbon Coating Machine
1. Product Overview
The BY-ZD01 Thermal Evaporation Carbon Coater is a precision instrument designed for depositing ultra-thin carbon films (≤1 nm) onto substrates for high-resolution electron microscopy applications. Utilizing resistive heating of pure carbon fiber strands, it ensures uniform and contamination-free coatings, making it ideal for SEM, TEM, EBSD, and microprobe analysis.
✔ Nanoscale Coating Precision – Deposits carbon films with minimal grain size (<1 nm) for high-resolution imaging.

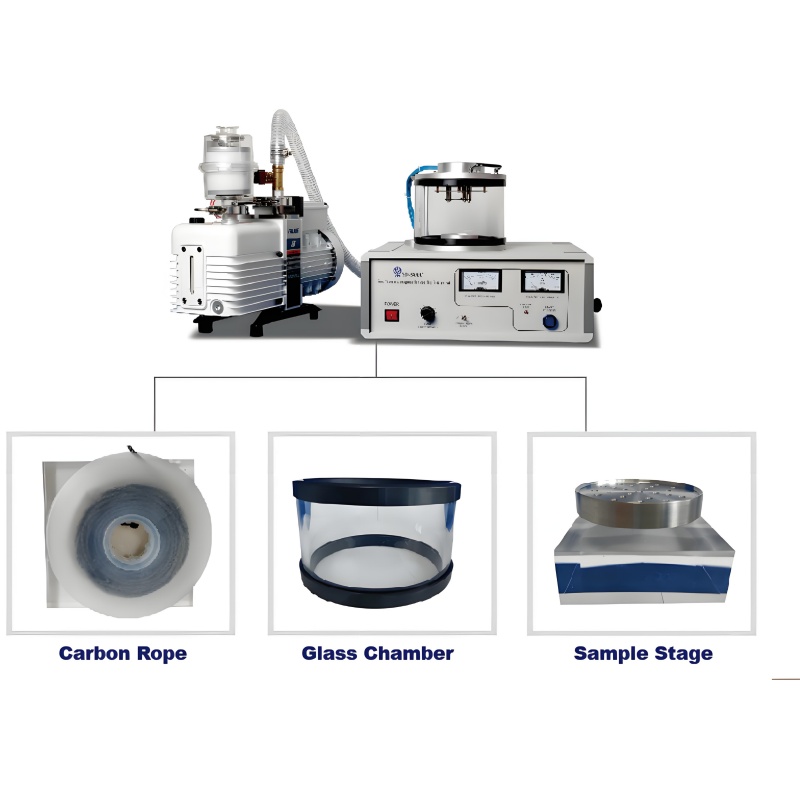

✔ Dual Carbon Fiber Source (A/B Selectable) – Ensures consistent evaporation and extended filament life.
✔ Vacuum Protection System – Prevents damage from low vacuum conditions.
✔ Fast Deposition (0-1 sec) – Optimized for laboratory efficiency.
✔ Compact & User-Friendly – Sleek design with intuitive controls.
|
Category |
Specification |
|
Model |
BY-ZD01 |
|
Dimensions (W×D×H) |
340mm × 390mm × 300mm |
|
Chamber Material |
Borosilicate Glass (Ø170mm × 130mm H) |
|
Evaporation Source |
High-Purity Carbon Fiber (Dual Strand A/B Selectable) |
|
Deposition Time |
0-1 second (adjustable) |
|
Operating Vacuum |
4×10⁻² mbar |
|
Working Voltage |
0-30V (AC) |
|
Evaporation Current |
0-100A |
|
Vacuum Pump |
2-Stage Rotary Pump (Feiyue VRD-8, 8 m³/h @50Hz) |
|
Power Supply |
AC 110V/60Hz or 220V/50Hz |
|
Power Consumption |
<2000W |
|
Weight |
45 kg |
· Base Pressure: ≤2 Pa
· Pumping Speed:
o 50Hz: 8 m³/h (2.2 L/s)
o 60Hz: 9.6 m³/h (2.6 L/s)
· Time to Reach Vacuum: <5 minutes (to 2 Pa)
This is optimized for:
· Scanning Electron Microscopy (SEM) – Reduces charging effects.
· Transmission Electron Microscopy (TEM) – Provides ultra-thin conductive layers.
· EBSD (Electron Backscatter Diffraction) – Enhances signal clarity.
· Microprobe & X-ray Analysis – Ensures minimal interference.
· High Purity Carbon Films – Minimizes contamination for precise analysis.
· Quick & Repeatable Process – Ideal for high-throughput labs.
· Compact & Low Maintenance – Robust design with minimal upkeep.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
