Heat Shrink Machine For Cylinder Battery Pack Heat Shrink Machine For Cylinder Battery Pack

Heat Shrink Machine For Cylinder Battery Pack

  • ItemNo :

  • MOQ :

  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :
  • Product Details

Heat Shrink Machine For Cylinder Battery Pack

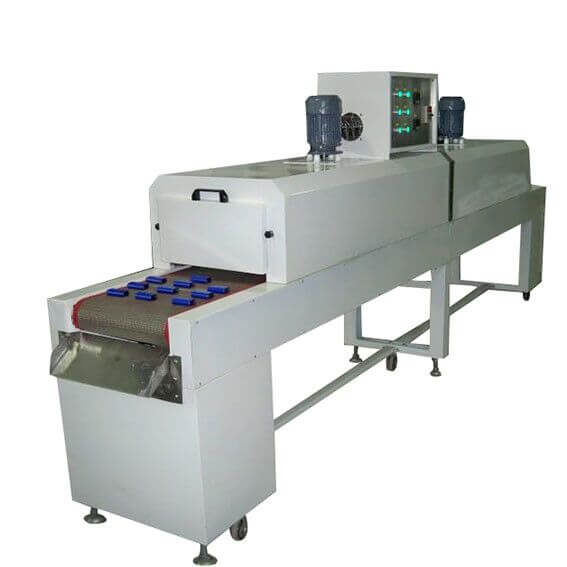

LITH-JK-BZJ--280 heat shrink machine is Designed for cylindrical and combination battery heat shrinkable packaging process, using far infrared ray and cycle wind combination heating technology, ensure the battery plastic covers evenly heat shrinkage, famous and beautiful deformation, high consistency.


The heat shrink packaging machine is packaged in a shrink film on the outer layer of the product or packaged product. After heating, the shrink film is wrapped around the product or package, fully displaying the appearance of the product and improving the product's exhibition type, increasing the appearance and value, and shrinking the product. It can seal, protect against moisture, protect the product from impact, and has a certain cushioning type, especially fragile products, which can prevent the container from being broken and scattered, prevent injury, and reduce the possibility of product being dismantled and stolen.

Technology parameters


 Heat Shrink Machine  LITH-JK-BZJ--280

Source voltage

AC 380V, 50HZ




One year limited warranty and lifetime support

Heating mode

Far infrared ray heat combined with circulating hot air

Conveyor line specification

Length 2000mm, Width 280mm, The revolution combined with the rotation


0.1-6M/min, Infinitely adjustable-speed

Temperature range

RT-180℃, With 2℃ accuracy, PID Electronic temperature control

Battery out temperature



Heat Shrink Machine


heat shrinking machine

PVC shrinking machine

Cylindrical Cell Preparation


     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.


DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
