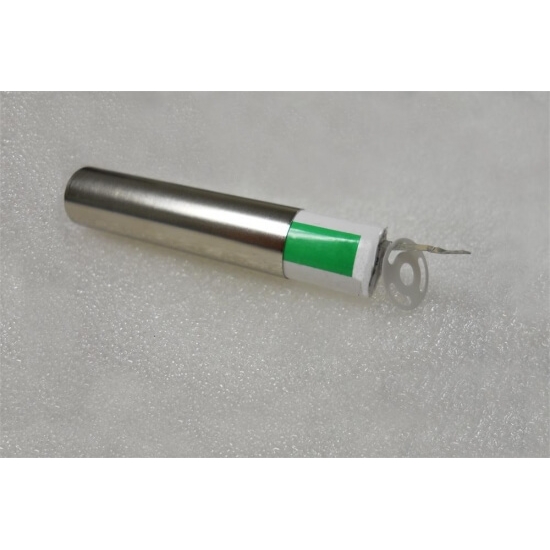

18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package 18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package 18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package 18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package

18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package

  • ItemNo :

    LITH-18650-D
  • MOQ :

    1
  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Delivery Time:

    2 days
  • Email :

    Louis@lithmachine.com
  • Product Details

18650 Cylinder Cell Case With Anti-Explosive Cap And Insulation O-Ring - 100 Pcs/Package


Technology parameters

Cap

   Cap with Built-in PTC Thermistor for overcurrent protection

Dimensions (Dia x Height)

· Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)

· Top Cap: 17.5mm(D) x 4.05mm(H)

· Top Insulator: 12.5mm(D) x 0.19mm(H)

· Bottom Insulator: 12.5mm(D) x 0.19mm(H)

Materials

· Case and cap are made of  Nicke plated A3 steel

· Seal O-ring and spacer are made of nylon

· Insulating gasket is made of PET

Weight

    9.50 g/pcs

Note

Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)




Cylinder Cell Case

Cylinder Cell Cases

Cylindrical Cell Equipment








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
