ItemNo :
Lith-ZHD600MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

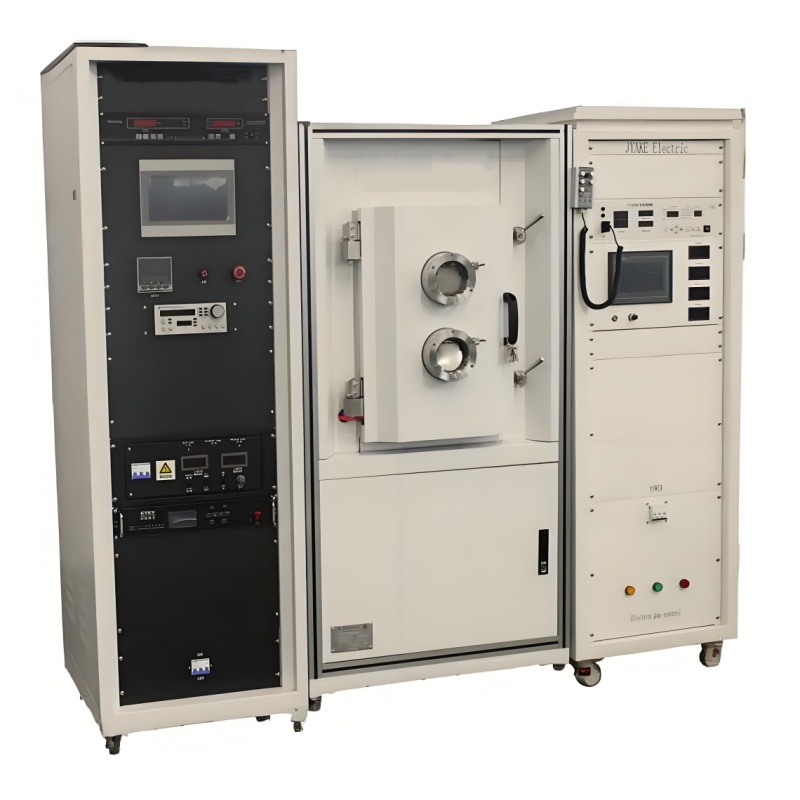

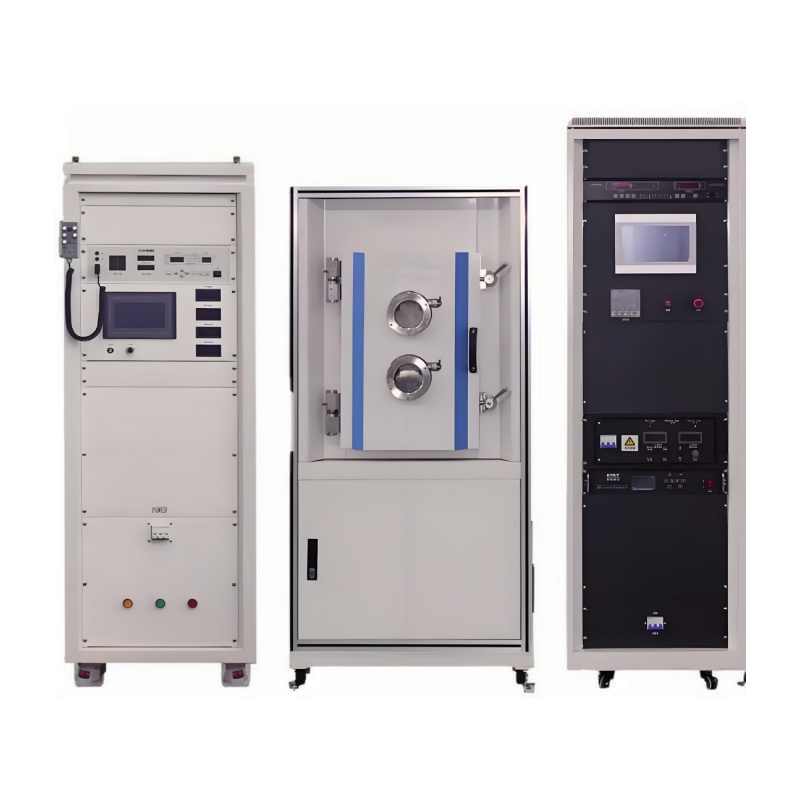

Glovebox Vacuum Thermal Evaporation Coating Machine Unit With Multi-Source
ZHD600-High-Vacuum Multi-Source Evaporation
|
Parameter |
Specification |
|
Model |
ZHD600 |
|
Coating Method |
Multi-source evaporation deposition |
|
Chamber Structure |
Vertical cylindrical, front-opening |
|
Chamber Dimensions |
Φ650mm × H800mm |
|
Heating Temperature |
Room temperature ~ 300°C |
|
Substrate Holder |
Flat plate or umbrella-type |
|
Film Uniformity |
≤ ±5.0% |
|
Evaporation Sources |
2-3 metal evaporation source groups |
|
Control System |
PLC/PC (optional) |
|
Footprint (Main Unit) |
L1000mm × W1200mm × H1900mm |
|
Total Power |
≥ 12kW |
· ≤ ±5.0% thickness variation ensures high-quality, consistent coatings—better than many entry-level systems (±8–10%).
· Ideal for precision optics, semiconductor layers, and functional coatings where uniformity is critical.
· 2-3 independently controlled evaporation sources allow multi-layer & alloy deposition in a single run.
· Competitors often limit to single-source setups, requiring multiple cycles for complex coatings.
· Optional PLC/PC automation improves repeatability vs. manual systems, reducing human error.
· Wide temperature range (RT–300°C) supports diverse materials, from delicate polymers to high-temp substrates.
· Compact footprint (1m × 1.2m) fits small labs, unlike larger industrial systems (e.g., 1.5m+ width).
· Front-loading vertical chamber simplifies maintenance and sample handling vs. bulky horizontal designs.
|
Feature |
ZHD600 |
Typical Entry-Level Competitors |
High-End Industrial Models |
|
Film Uniformity |
≤ ±5.0% |
±8–10% |
≤ ±3.0% |
|
Evaporation Sources |
2-3 (multi-material capable) |
1-2 (limited alloys) |
4+ (complex stacks) |
|
Automation |
PLC/PC optional |
Manual or basic controls |
Full automation |
|
Footprint |
Compact (1m × 1.2m) |
Similar or larger |
Large (1.5m+ width) |
|
Cost Efficiency |
Best balance for R&D/small production |
Lower cost, less precision |
High cost, overkill for labs |
· R&D & Prototyping: Universities and labs needing controllable, small-batch coatings.
· Optoelectronics: Anti-reflective films, conductive layers for displays/sensors.
· Decorative Coatings: Durable metallic finishes on consumer products.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
