5 daysDual Station Pouch Cell Sealing Machine for Top and Side Heat Sealing
1. Equipment Description
This equipment is suitable for top and side heat sealing of pouch-type lithium-ion batteries. (Top sealing uses soft sealing; side sealing uses hard sealing, depending on customer requirements.)
2. Basic Configuration
l Tray fixtures
l Heat sealing heads
l Safety light curtains
l The machine body adopts aluminum profile frame with safety covers.
l Electrical control system
l Pneumatic components: Taiwan Airtac
l Temperature controller: Beiermei
l Buttons: Shanghai Ergong brand
l Touch screen: Weinview
l Safety light curtain: Fotek
l Machine body: surface pickling treatment, default baked white paint
l Mechanical parts material: aluminum and steel
l Safety cover: sheet metal parts + acrylic panels
3. Basic Parameters
|
Parameter |
Specification |
|
Machine Cycle Time |
7 pcs/s |
|
Sealing Width |
Customized (Standard: 4 mm) |
|
Applicable Battery Size |
550 × 450 mm (including airbag) |
|
Machine Capacity |
4–6 pcs/min |
|
Manual Adjustment |
Available |
|
Power Supply |
220V/AC/50Hz, Single Phase |
|
Air Pressure |
0.5–0.6 MPa |
|
Equipment Weight |
400 kg |
|
Machine Dimensions |
1400 mm (L) × 1200 mm (W) × 1400 mm (H) |
|
Top/Side Sealing Cylinder |
∮63 × 50 |
4. Process Parameters
|
A |
B |
C |
D |
E |
F |
G |
K |
|
|
|
|
|
|
|
|
|

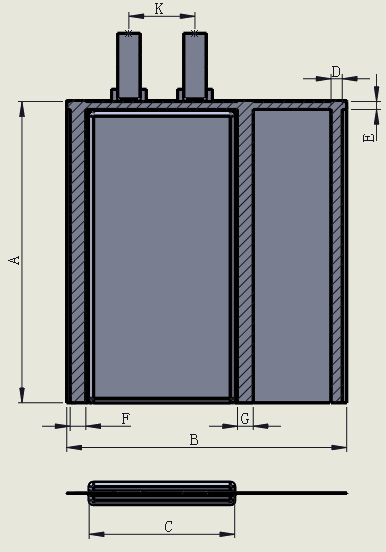

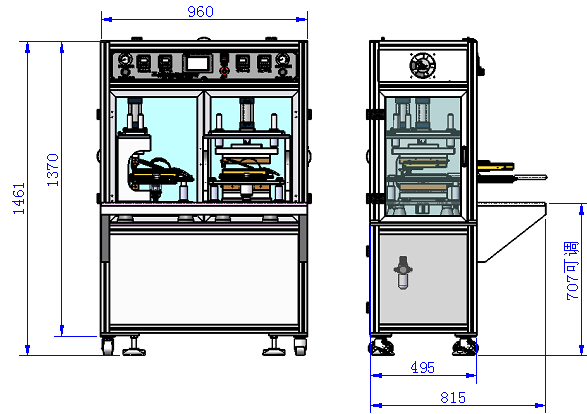

5. Appearance Layout

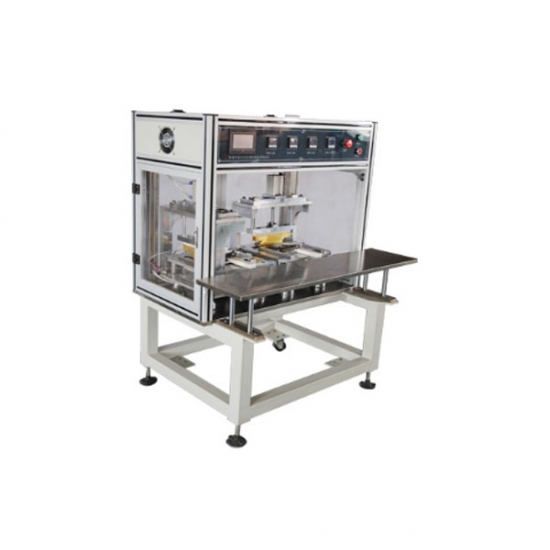

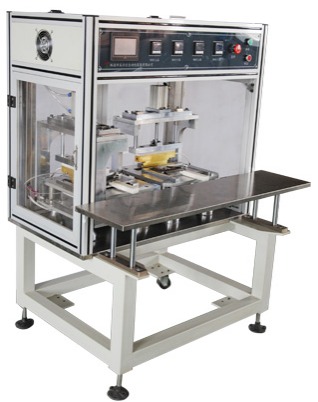

6. Product Photos
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
