Core Technologies:

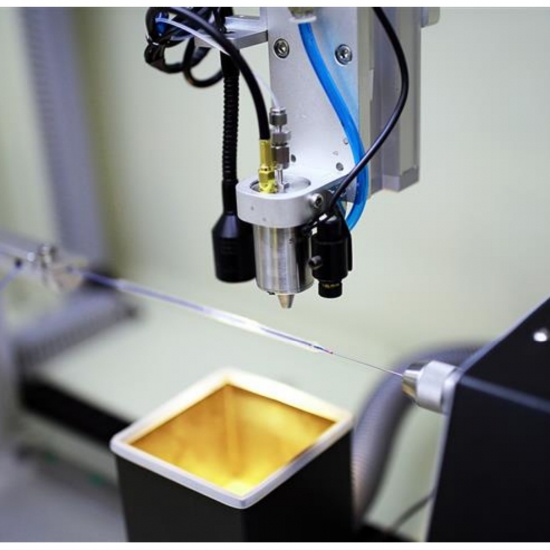

• Proprietary ultrasonic spray head with independent IP - Precise drug dosage control
• Unique aerosol humidification technology - Accelerates drug crystallization
• Flawless coating quality - No adhesion, pinholes, or defects
• Exceptional uniformity, stability, and consistency
• High corrosion resistance - Compatible with diverse organic solvents
System Overview:

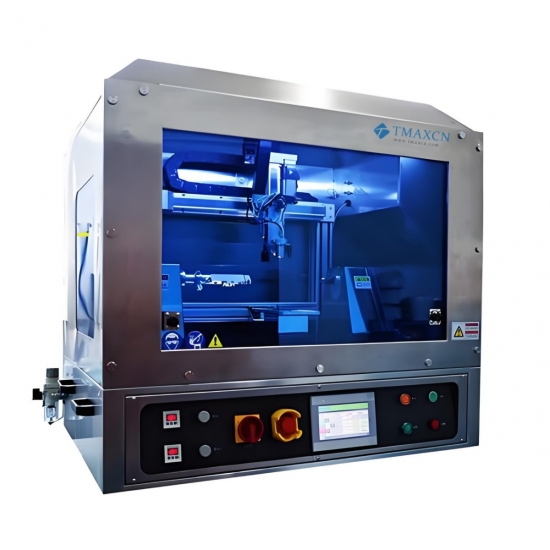

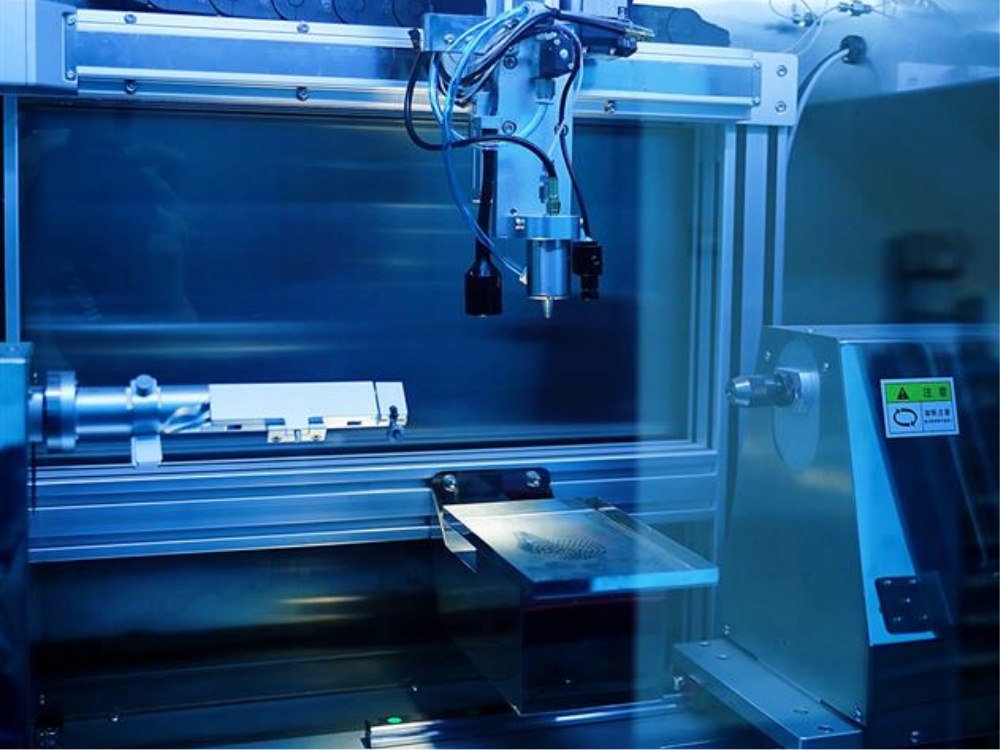

This benchtop ultrasonic coating system is specifically designed for applying drug coatings to balloon catheters and peripheral stents. With compact dimensions for laboratory workspace compatibility, it is ideal for R&D or space-constrained environments. Equipped with TMAX's focused-flow or micro-flow ultrasonic spray heads, the system enables precise drug loading with uniform coatings free from pinholes or orange-peel effects. Specialized fixtures and rotational mechanisms support coating applications for coronary balloons, peripheral balloons, and stents, making it the industry-preferred precision coating solution.
Key Features:
1. Ultrasonic Spray Technology
`Proprietary spray heads with optimized fluid/gas delivery
`Micro-precision spraying width: 1-10mm (adjustable for various balloon/stent sizes)
`4-5x higher material transfer efficiency vs. pneumatic spraying
`85%+ material utilization rate (4x conventional two-fluid spraying)
2. Process Advantages
`Uniform drug layers without pinholes, bubbles, or adhesion
`Accurate drug deposition control (<±5% dosage consistency)
`Submicron aerosol humidification for accelerated crystallization
`Self-cleaning spray heads prevent clogging
3. Mechanical Specifications
`Dual-motor synchronous rotation system (high-speed stability)
`Servo-controlled spray trajectory (µm-level precision)
`Rapid-load fixtures support:
• Balloon length: ≤280mm

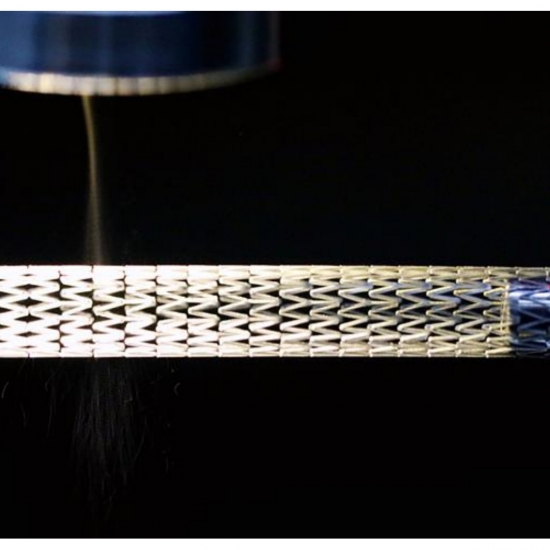

• Peripheral stents: ≤280mm length, ≤60mm diameter
• Catheter compatibility: Up to 2m length with coiling capability
4. Multi-Application Flexibility
`Configurable with multi-nozzle arrays for parallel processing
`Interchangeable fixtures for balloons/stents
`Online balloon inflation capability
5. Advanced Controls
`Digital ultrasonic generator:
`0.01W power resolution
`Multi-core closed-loop control
1. Flow rate range: 0.001-2mL/min (solvent-dependent)
2. Full-color HMI touchscreen interface
6. Material Compatibility
`Solvents: Acetone, THF, DMAC, Chloroform, Toluene, etc.
`Polymers: PU, PC, Silicone, PS, etc.
7. Optional Modules
`UD25 Ultrasonic Dispersion Sampler (nanoparticle anti-aggregation)
`Integrated/exhaust system (cleanroom compatible)
Coating Laboratory Services:
Our full-scale lab provides process simulation, validation, and standardization support, backed by engineers with extensive balloon coating experience.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
