Application

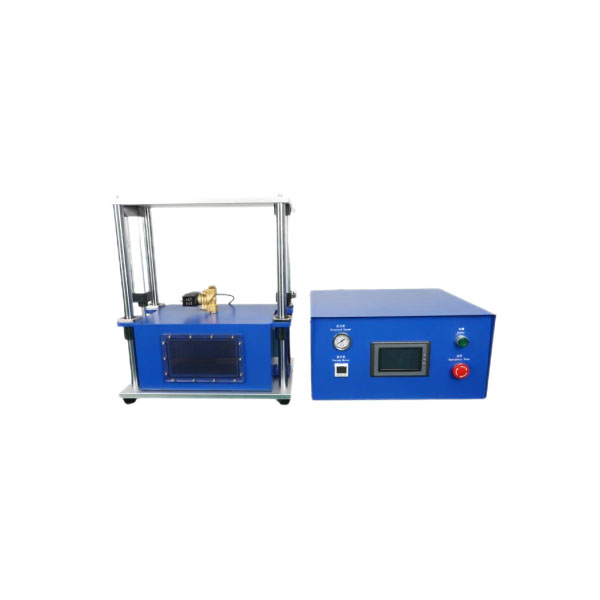

The Vacuum Degassing Machine is designed to enhance the electrolyte absorption process for pouch cells and cylindrical cells by placing them under vacuum conditions, ensuring more thorough integration with the electrode sheets during electrolyte filling. Built with high-quality components, this equipment is suitable for various battery sizes and offers efficient and simple operation.
Key Features
· Compatible with batteries of various sizes, and the adjustment process is simple and user-friendly.
· Modular design with separate main unit and control box, allowing placement inside gloveboxes or use on production lines.
· Maintains stable vacuum pressure with minimal drop during holding periods.
· Supports multi-cycle vacuum-hold sequences, promoting better electrolyte penetration and integration.
· Transparent observation window enables real-time monitoring of the vacuum chamber during operation.
· Upper chamber is cylinder-driven and guided by dual linear bushings, ensuring smooth, precise motion and consistent sealing performance.
· Compact, lightweight, aesthetically designed, and easy to operate.
Technical Specifications
|
Parameter |
Specification |
|
Power Supply |
AC220V / 50Hz |
|
Power Consumption |
50 W |
|
Compressed Air Supply |
0.5–0.7 MPa |
|
Chamber Volume |
L330 × W200 × H150 mm |
|
Operating Section Dimensions |
Approx. L470 × W330 × H420 mm |
|
Control Section Dimensions |
Approx. L460 × W220 × H340 mm |
|
Weight |
Approx. 40 kg |
|
Chamber Material |
Aluminum alloy; corrosion-resistant, durable |
|
Degassing Time |
Adjustable from 0–99.99 seconds |
|
Vacuum Level |
Up to -95 KPa |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
