ItemNo :
LITH-BSW07-20TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days

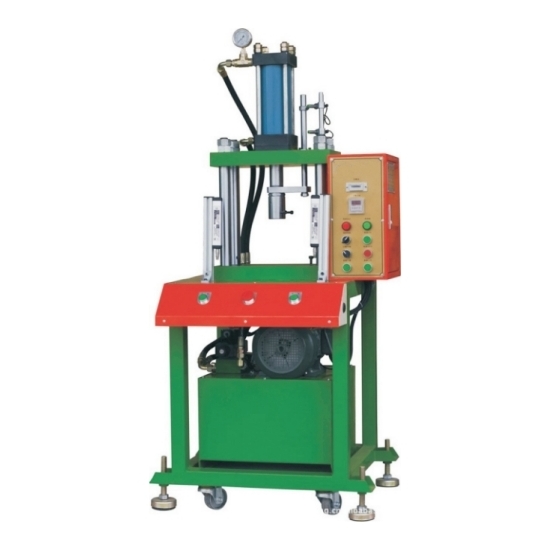

Introduction
This series of hydraulic punch presses are widely applicable to press-fitting, assembly, punching, embossing, shaping and riveting of various materials. Bending, shearing, stretching, press-fitting and assembly of various small parts. It is a multi-purpose press.

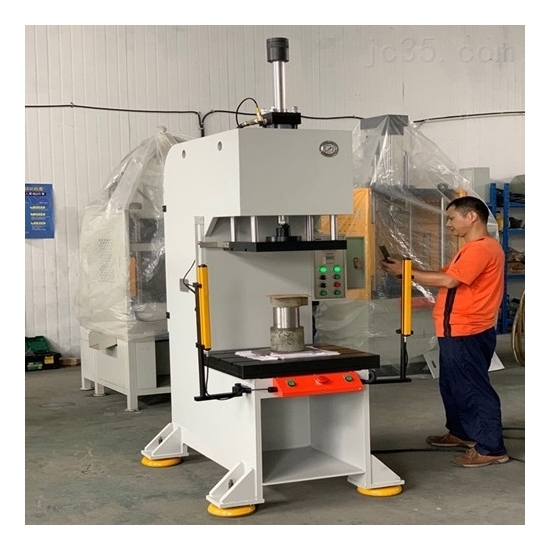

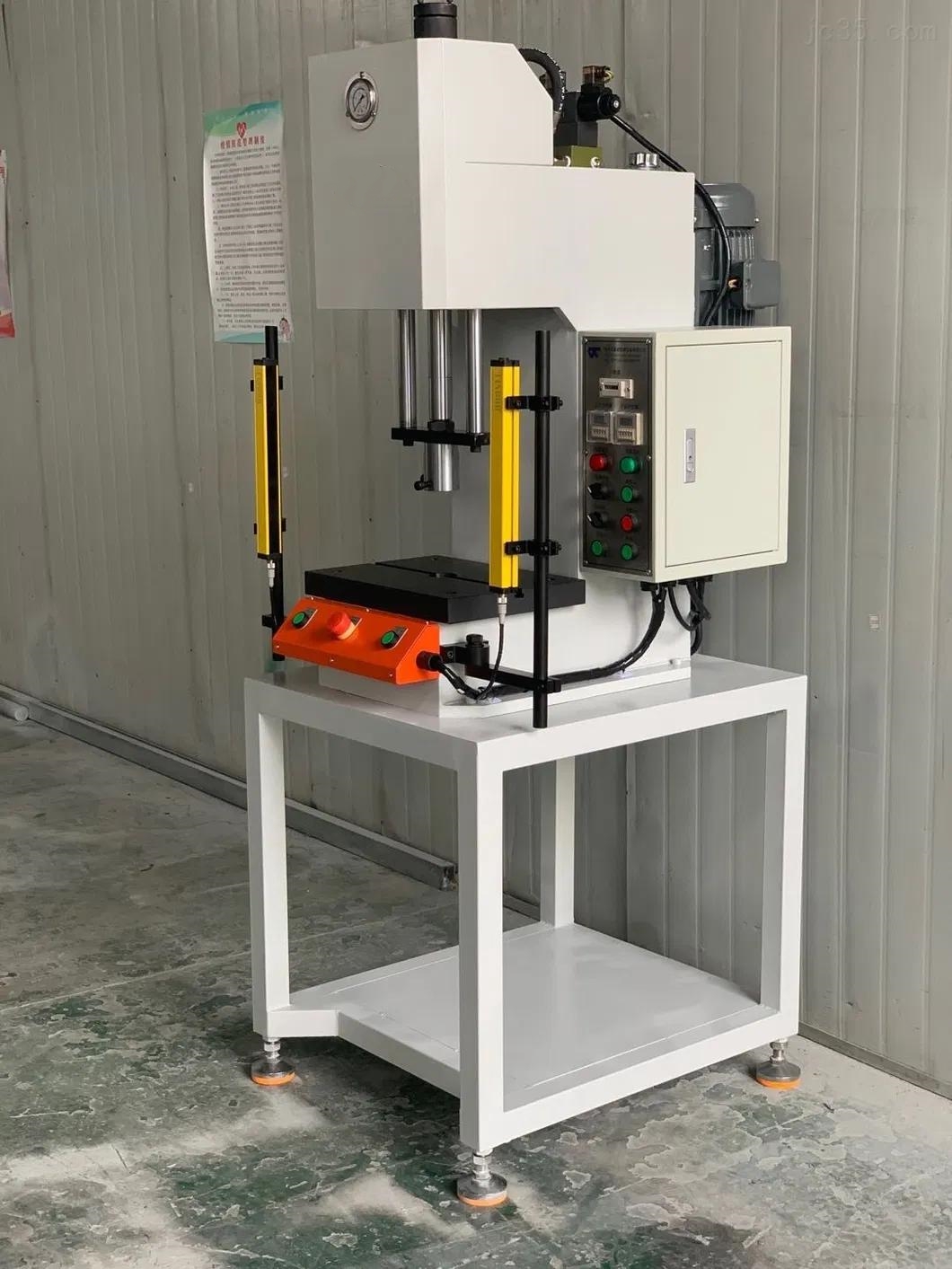

The C-type hydraulic press has a simple structure and is lightweight, allowing it to be placed on a workbench or production line.
Features
1. Floor-standing hydraulic press has the characteristics of good rigidity, stability and high speed because it is a welding mechanism as a whole.
2. This series of hydraulic presses uses 2-20MPA liquid pressure as the power source, and external three-phaseAC380V 50HZ or three-phase AC220 60HZ AC power supply.
3. This series of equipment uses liquid as the medium to transfer energy. Lt adopts advanced sub-cylinder hydraulic circuit, the oil temperature is low, the idle speed is above 150MiM/sec, and the working speed is below 30 MM/sec
4. The equipment is on standby, and the noise does not exceed 75 decibels when moving up and down.
5. lt can be divided into manual and semi-automatic control modes. Manually, the press-fit upper mold can be stopped in any stroke range. lt can be equipped with an emergency rebound button or an infrared hand guard device.6. The press-fit stroke of this series of presses is generally controlled by a timer, pressure switch, position sensor, or the customer's own mold.
7. The height of the press-fit spindle can be adjusted by the timer or the position sensor within any stroke range.
8. Pressure, stroke, holding time, closing height can be adjusted by the customer for easy operation; with automatic counting function, can also be equipped with force measuring display, intelligent temperature controller, can be customized according to customer requirements.
9. The hydraulic mechanical output range of this series is available in various specifications of 15tf-100 tf(1tf=1000kgf=9.8KN).
Technical parameter
|
Model |
BSW07-10T |
BSW07-20T |
BSW07-30T |
BSW07-40T |
BSW07-50T |
BSW07-60T |
|
|
Nominal pressure(T) |
10 |
20 |
30 |
40 |
50 |
60 |
|
|
Maximum working pressure of liquid (MPa) |
21 |
21 |
21 |
21 |
21 |
21 |
|
|
Surface height(E) mm |
850 |
850 |
850 |
850 |
850 |
850 |
|
|
Maximum opening distance(H)mm |
400 |
400 |
500 |
550 |
550 |
600 |
|
|
Deep throat(s) mm |
200 |
200 |
225 |
225 |
250 |
250 |
|
|
Maximum stroke mm |
300 |
300 |
300 |
300 |
300 |
400 |
|
|
Workbench size |
Left and right (L) mm |
500 |
500 |
550 |
550 |
650 |
650 |
|
Before and after (W) mm |
400 |
400 |
450 |
450 |
500 |
500 |
|
|
Speed |
Rated load speed mm/s |
165 |
165 |
165 |
165 |
155 |
155 |
|
Working speed mm/s |
24 |
24 |
24 |
18 |
15 |
15 |
|
|
Return speed mm/s |
140 |
140 |
140 |
125 |
125 |
125 |
|
|
Main frame size mm |
700x950x2050 |
700x950x2060 |
760x950x2100 |
780x950x2150 |
800x950x2150 |
830x1000x2350 |
|
|
Power KW |
2.2 |
3.7 |
3.7 |
3.7 |
5.5 |
5.5 |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
