ItemNo :
LITH-106KS-10TMOQ :
1Warranty:
2yearsDelivery Time:
5 days

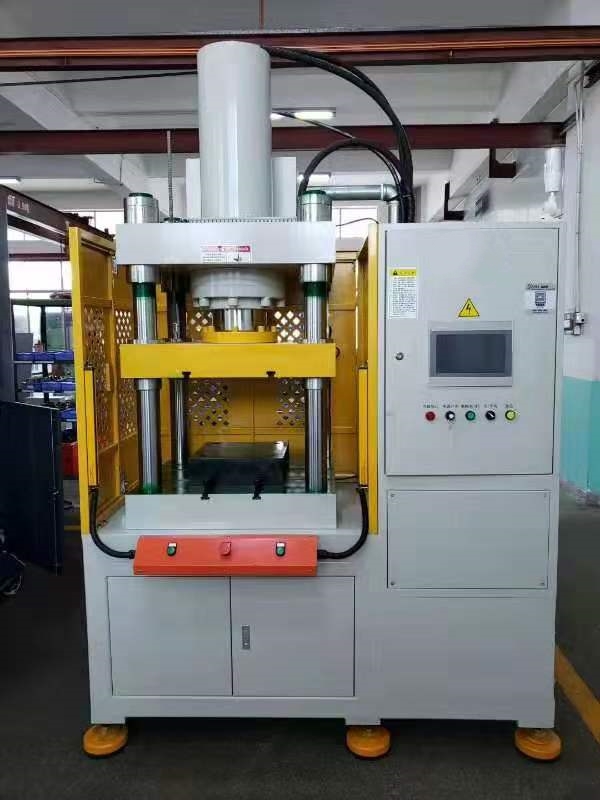

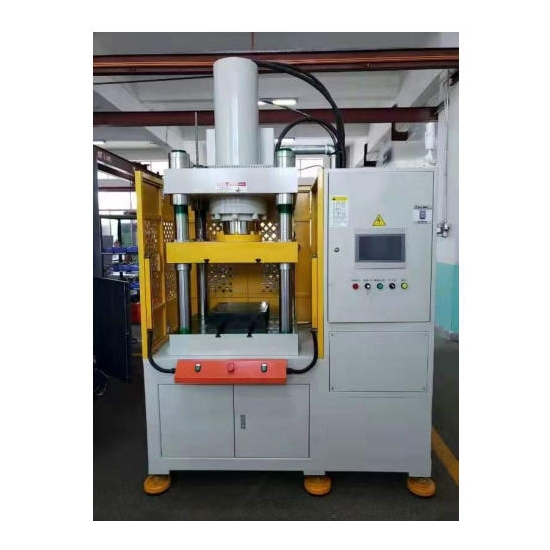

Introduction
The function of the equipment: press-fitting
The power source of the equipment: It is powered by a fluid pressure of 25MPA, with a total power of 5.5KW
Equipment structure: Four-column structure.
Working conditions
1. Working environment: Ambient temperature -10 to 45℃, relative humidity 40 to 80%
2 Power supply voltage: AC380V (±10%), frequency 50HZ (±1HZ), three-phase five-wire
3 The maximum working pressure of the liquid is 21MPA. When the room temperature is 35℃, the continuous working oil temperature does not exceed the set 65℃
4 Use high-quality #46 hydraulic oil
Main technical parameter
|
No |
Parameter |
Unit |
Vaule |
Note |
|
1 |
Output range of the oil cylinder |
Tf or KN |
5-30 or 50-300 |
|
|
2 |
The maximum working pressure of the oil pump |
MPA |
21 |
|
|
3 |
The maximum working height of the sliding speed and the lower working face |
MM |
400 |
|
|
4 |
Cylinder stroke |
MM |
300 |
|
|
5 |
The minimum working height of the sliding speed and the lower working face |
MM |
100 |
|
|
6 |
Effective area of the lower workbench (left and right * front and back) |
MM |
500*400 |
T-slot clamping |
|
7 |
Effective area of the upper working surface (left and right * front and back) |
MM |
500*400 |
T-slot clamping |
|
8 |
Throat depth |
MM |
200 |
|
|
9 |
The height of the lower working face from the ground |
MM |
900 |
|
|
10 |
The descent speed of the slider |
MM/S |
150 |
|
|
11 |
The feed speed of the slider |
MM/S |
1—20, adjustable |
|
|
12 |
The rebound speed of the slider |
MM/S |
150 |
|
|
13 |
Motor power |
KW |
5.5KW |
|
|
14 |
The total weight of the equipment is |
KG |
2000 |
|
|
15 |
Repeatability accuracy of equipment pressure |
|
±1% |
|
|
16 |
Minimum display unit of pressure |
KN |
1 |
|
|
17 |
Minimum display unit of displacement |
MM |
0．01 |
|
|
18 |
The display accuracy of the downward press is |
MM |
±0.01 |
|
|
19 |
Pressing down shows the repeat positioning accuracy as |
MM |
±0.03 |
|
|
20 |
The sampling speed of the system for the force sensor |
Times/s |
2000 |
|
|
21 |
Safety light curtain protection height |
MM |
300 |
|
|
22 |
Holding pressure time |
MIN |
0-5s |
|
|
23 |
Parallel accuracy of the upper and lower working surfaces |
MM |
Within 0.15 |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
