Introduction

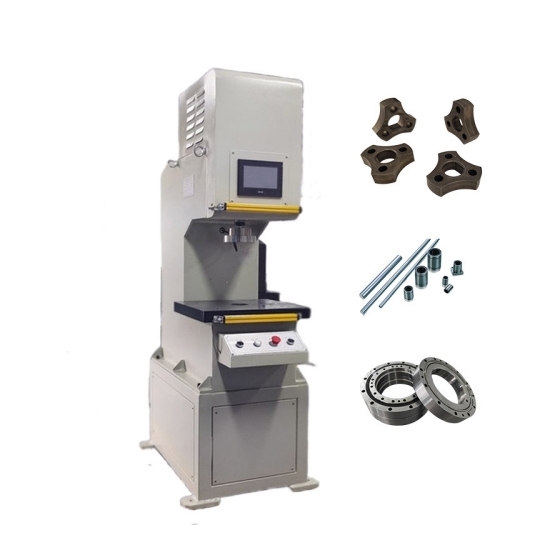

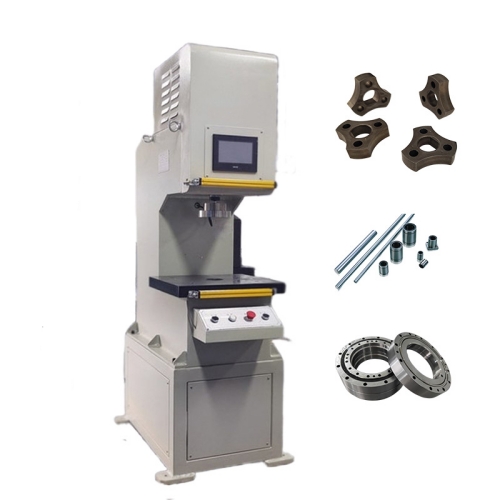

The servo press, also known as the CNC servo electronic press or precision electric cylinder press-fitting machine, is abbreviated as the electronic press. Its working principle is that the servo motor drives the high-precision ball screw to perform precise pressure assembly operations, and the entire process realizes the closed-loop control of the press-fitting force and the press-in depth. It can also be configured with functions such as heating, real-time pressure curve display, multi-station, scanning code, and automation.
Product features
1. The position control accuracy of the common electric cylinder is ±0.01mm, and that of the new type of electric cylinder is ±0.001mm
2. The speed of a common electric cylinder is 30 to 50mm/s, while that of a new type of electric cylinder is over 100mm/S
3. The new type of electric cylinder adopts direct drive technology, reducing energy consumption by 30% without a reducer
Equipment application:
1) Assembly, forming and riveting of precision components
2) Stamping blanking of films, metal sheets and plastics
Scope of application
Applicable industries: automotive industry, motor industry, electronics industry, new energy industry, etc
Technical parameter
|
Item |
Unit |
EPC Single column/EPC 4 column |
|||||||
|
Rated output (press-fitting force) |
T |
0.448 |
1 |
2 |
3.5 |
6.12 |
9 |
13 |
|
|
Maximum force (punching force) |
T |
1.2 |
2 |
4.5 |
7 |
12 |
18 |
26 |
|
|
Motor power |
KW |
00.93 |
1.2 |
2.3 |
3.7 |
6 |
9 |
6 |
|
|
Lead screw diameter |
mm |
40 |
50 |
80 |
|||||
|
Equipment speed |
Maximum fast-forward speed |
mm/s |
1-330 |
1-250 |
1-250 |
1-250 |
1-200 |
1-200 |
1-200 |
|
Maximum working speed |
mm/s |
1-165 |
1-125 |
1-125 |
1-125 |
1-100 |
1-100 |
1-100 |
|
|
Control accuracy |
mm |
Control accuracy 0.008/ Repeatability accuracy 0.001 |
|||||||
|
Maximum opening height |
mm |
350 |
400 |
450 |
500 |
||||
|
The upper slider stroke |
mm |
180 |
230 |
285 |
310 |
390 |
425 |
390 |
|
|
Dimensions of the lower worktable |
Left and right (inside the column |
mm |
500 |
500 |
600 |
600 |
|||
|
Front and back (including columns |
mm |
400 |
400 |
500 |
500 |
||||
|
The height of the workbench from the ground |
mm |
750 |
750 |
750 |
750 |
||||
|
Optimize the external dimensions |
mm |
～650 |
～650 |
～750 |
～750 |
||||
|
Front and rear external dimensions |
mm |
～550 |
～550 |
～650 |
～650 |
||||
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
