ItemNo :
LITH-BSW08-2TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

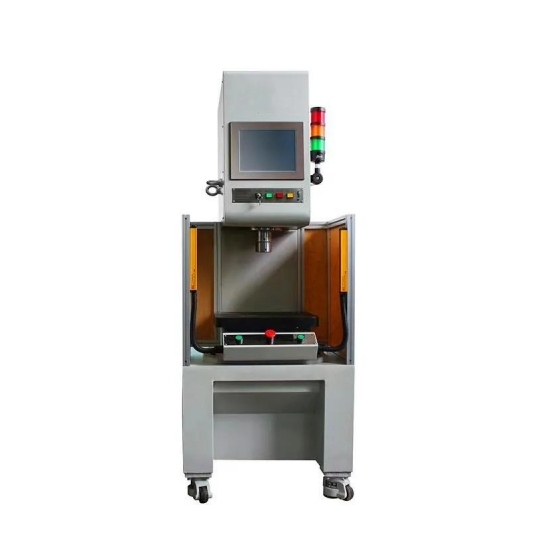

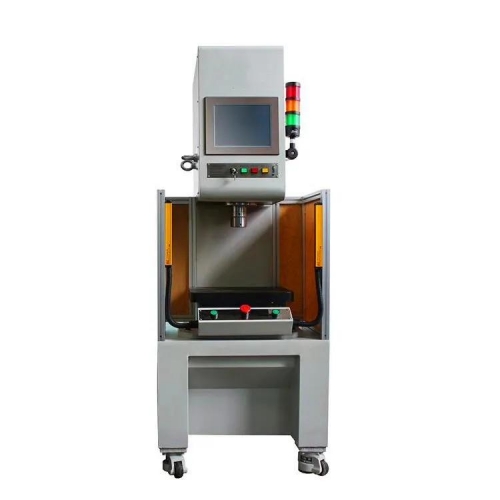

Precision CNC Servo Press its working principle is the high precision ball screw driven by servo motor precision pressure assembly operations ,can be implemented of the whole process of the closed loop control ,so as to realize the online quality control precision of the pressure equipment .The main structure of servo press can be divided into C type, arch, two columns and four columns.
Characteristic
Pressing loading depth, press-fit depth, holding time, etc. can be input on the operation panel, friendly interface and simple operation.
Compared with the traditional pneumatic and hydraulic presses, the energy saving effect is over 80%, and it is more environmentally friendly and safe, which can meet the requirement in the dustless workshop.
It can be customized, stored and called 100 sets of pressure assembly .The three kinds of pressure loading modes can be seleted to meet your different process requirements.
Through the USB interface, the data can be stored in the flash disk,so as to ensure the traceability of product processing data and facilitate the management of production quality control.
Since the machine itself has precise pressure and displacement control functions, it is not necessary to impose a hard limit on the tooling. when processing different ,we can only call different pressure programs specifications, so we can easily realize the multi-purpose and flexible line .
Press of force and displacement, being connected graph can be displayed in the lCD touch screen, the whole process control can be automatically determine whether the product is qualified in any of the stage, 100% implementation of removing bad product, so as to realize the on-line quality control.
Technical parameter
|
Model |
BSW08-0.5T |
BSW08-1T |
BSW08-2T |
BSW08-5T |
BSW08-10T |
BSW08-20T |
|
|
Nominal pressure(T) |
0.5 |
1 |
2 |
5 |
10 |
20 |
|
|
Surface height(E) mm |
850 |
850 |
850 |
850 |
850 |
850 |
|
|
Maximum opening distance(H) mm |
300 |
350 |
350 |
400 |
500 |
500 |
|
|
Deep throat(s) mm |
150 |
150 |
175 |
200 |
225 |
250 |
|
|
Maximum stroke mm |
200 |
200 |
200 |
200 |
200 |
200 |
|
|
Workbench size |
Left and right (L) mm |
400 |
400 |
400 |
500 |
550 |
600 |
|
Before and after (W) mm |
300 |
300 |
350 |
400 |
450 |
500 |
|
|
Speed |
Rated load speed mm/s |
≤160 |
≤160 |
≤160 |
≤100 |
≤100 |
≤100 |
|
Working speed mm/s |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
|
|
Main frame size mm |
600x700x1800 |
650x750x1950 |
650x850x2100 |
680x950x2300 |
850x1000x2500 |
950x1100x3200 |
|
|
Power KW |
0.75 Kw |
1.3 Kw |
3Kw |
4.4 Kw |
7.5 Kw |
15 Kw |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
