ItemNo :
LITH-BSW01-500kgMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

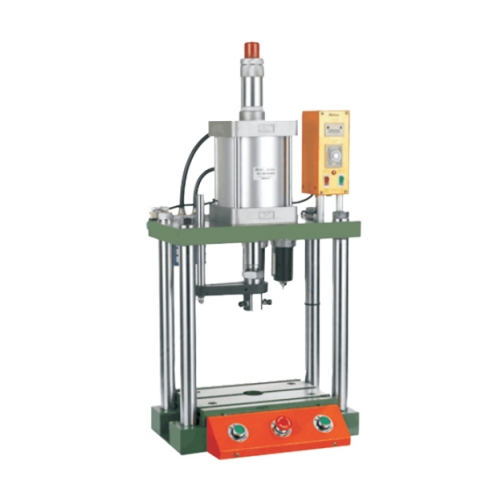

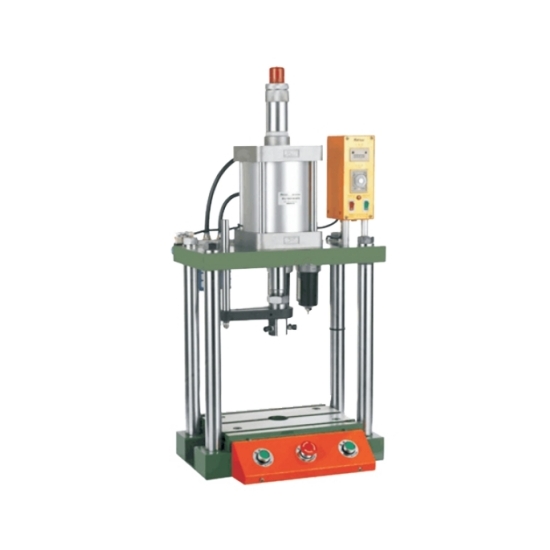

Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.
Technical parameter
|
Model |
BSW01-100kg |
BSW01-300kg |
BSW01-500kg |
BSW01-800kg |
BSW01-1500kg |
BSW01-2200kg |
|
|
Nominal pressure(T) |
0.1 |
0.3 |
0.5 |
0.8 |
1.5 |
2.2 |
|
|
Maximum working pressure of liquid(Mpa) |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
|
|
Maximum opening distance mm |
250 |
250 |
250 |
300 |
300 |
300 |
|
|
Maximum stroke mm |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
Workbench size |
Left and right mm |
300 |
300 |
300 |
350 |
350 |
350 |
|
Before and after mm |
200 |
200 |
200 |
250 |
250 |
250 |
|
|
Height of machine mm |
800 |
800 |
850 |
1000 |
1050 |
1100 |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
