Introduction

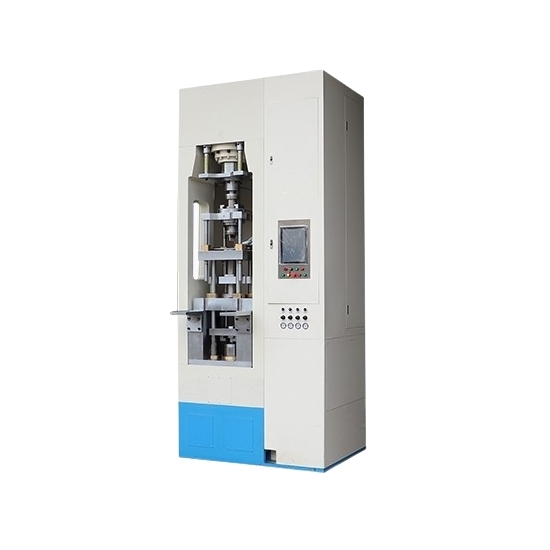

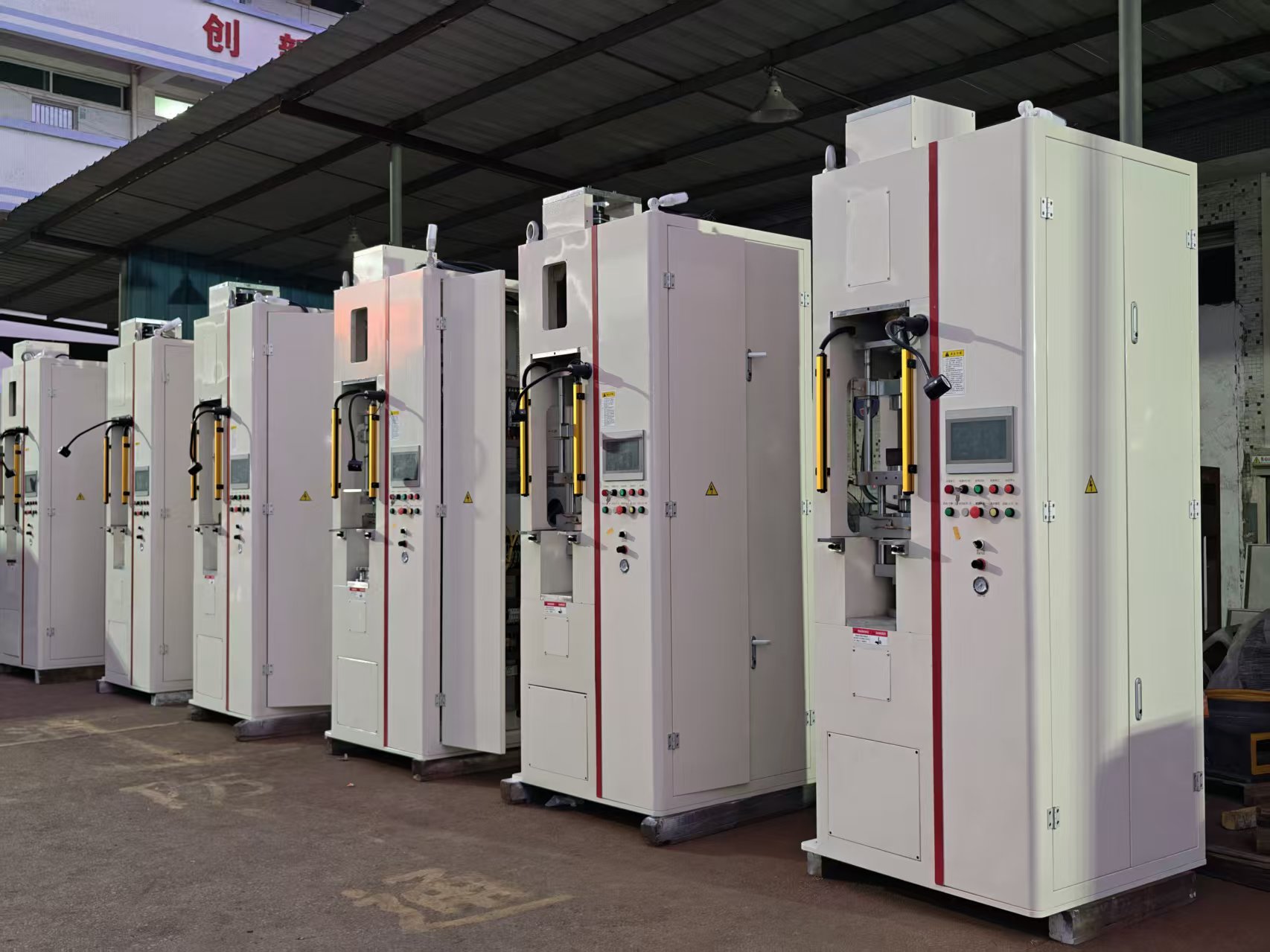

The upper oil lower electric powder forming machine adopts a 3R mold changing and positioning system. The servo motor drives the lead screw to drive the upper punch, mother mold and lower punch to move up and down with high precision. The powder is injected into the female mold through the hopper, material pipe and material shoe to achieve fully automatic functions such as powder pressing and forming, demolding, material picking and tray loading. Equipment forming speed: 1-30 revolutions per minute; Forming accuracy: ≤0.02mm; Repeatability accuracy: ≤0.005mm; Drive mode: Pure electric, oil on top and electricity at the bottom. Formwork structure: top one bottom one, top one bottom two, top one bottom three, top two bottom two, top two bottom three, top two bottom four; All parameters can be customized as needed.
Features
1) The powder is formed by the servo motor driving the lead screw to rotate the upper punch, the mother mold and the lower punch to move up and down. The product has uniform density, uniform size and stable weight.
2) It features a reasonable structure, stable performance, firm operation, reliable durability, high working accuracy and high efficiency.
3) High-definition LCD screen, user-friendly human-machine interface, precise control, intuitive and simple operation, and convenient maintenance.
4) Safety: The moving parts adopt a fully enclosed design to eliminate operational safety hazards and ensure no blind spots in safe production.
5) Environmental friendliness: The entire machine adopts a fully dust-proof design, is easy to clean, has no oil or powder leakage, and generates low noise.
6) The guide sleeve parts of the equipment are automatically oiled to ensure no grinding occurs, and the oil injection pump automatically alarms when it is short of oil.
Application
This product is widely used in the following industries:
1. Hard alloys: tungsten carbide, tungsten oxide, etc.
2. Ceramic powders: alumina, zirconia, silicon carbide, silicon oxide, etc.
3. Magnetic materials: manganese-zinc ferrite, nickel-zinc ferrite, neodymium iron boron, aluminum-iron-boron, iron-silicon-aluminum, etc.
The products are applied in industries such as inductor cores, integrated inductors, semiconductors, communication base stations, various power supplies, consumer electronics, medical care, industrial electronics, construction machinery, electric vehicles, and new energy (photovoltaic, energy storage, wind power).
Technical parameters
Larger tonnages also can be customized as your request! Hydraulic type / servo type can be customized!
|
Model |
FM-5T |
FM-10T |
FM-15T |
FM-15T |
FM-20T |
FM-20T |
|
|
Maximum pressure (T) |
5 |
10 |
15 |
15 |
20 |
20 |
|
|
Maximum demolding force (T) |
Concave mold |
5 |
5 |
8 |
8 |
10 |
8 |
|
Second stroke |
/ |
4 |
/ |
7 |
6 |
/ |
|
|
Maximum filling depth (mm) |
Concave mold |
30 |
50 |
50 |
50 |
60 |
50 |
|
Excess material/shortage (mm) |
0-5 |
0-5 |
0-5 |
0-5 |
0-5 |
0-5 |
|
|
Upward stroke (mm) |
150 |
150 |
150 |
150 |
150 |
150 |
|
|
Upward stroke adjustment (mm) |
30 |
30 |
30 |
30 |
30 |
30 |
|
|
Die surface adjustment allowance (mm) |
5 |
10 |
10 |
10 |
10 |
10 |
|
|
Maximum forming speed (S.P.M) |
8-35 |
8-35 |
8-35 |
8-35 |
8-35 |
8-35 |
|
|
Motor power (KW) |
Upstroke servo motor |
5.5 |
11 |
15 |
15 |
15+Reducer |
15+Reducer |
|
Downstroke servo motor |
4.4 |
2.9 |
7.5 |
7.5 |
4.4+Reducer |
7.5 |
|
|
Lower two-stroke servo motor |
/ |
2.9*2 |
/ |
5.5*2 |
4.4*2 |
/ |
|
|
Feeding servo motor |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
|
Machine weight (T) |
1.7 |
2.2 |
2.5 |
3.2 |
6.5 |
6.5 |
|
|
Machine dimensions (mm) |
Length |
1150 |
1150 |
1150 |
1150 |
1250 |
1250 |
|
Width |
1150 |
1150 |
1150 |
1150 |
1550 |
1550 |
|
|
Height |
2350 |
2420 |
2850 |
3300 |
3450 |
3450 |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
