Introduction
YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in:
1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production.
2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple.
3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions.

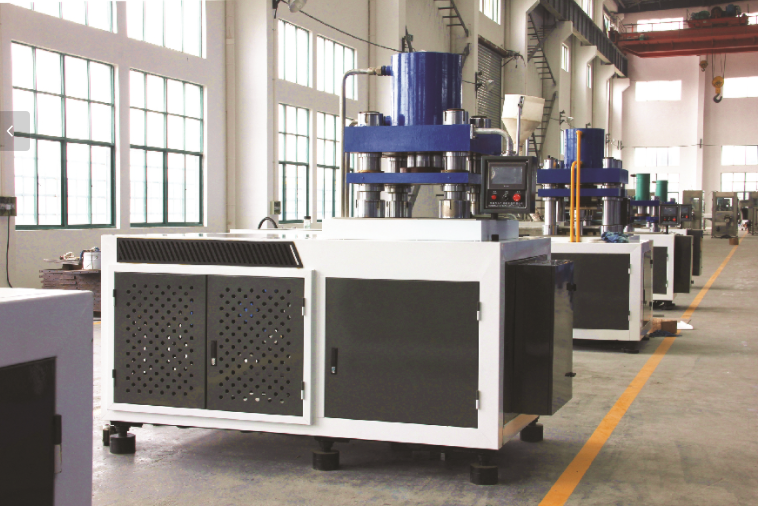

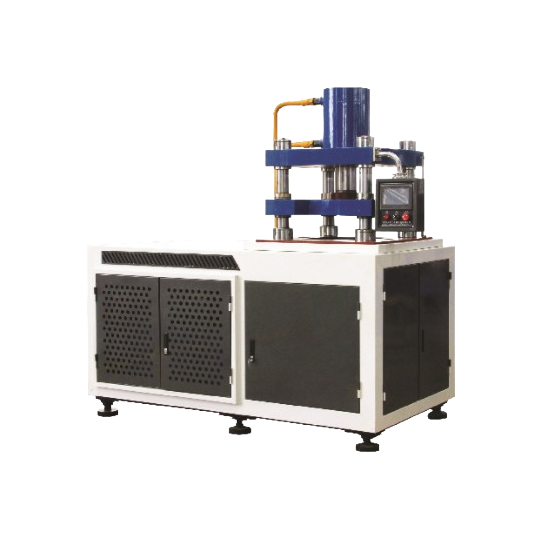

YST-100T type machine is a large-scale tablet press independently developed by our factory. It can press multiple granular, powdered and crystalline raw materials into various common and special-shaped tablets. High pressure and high stability. It can be used for tablet forming in various industries.
The entire equipment integrates the pressing system and the hydraulic system, presenting a simple, elegant and high-end appearance. The internal system adopts a professional hydraulic system imported from Taiwan, combined with PLC computer control. The entire movement is continuously automated. At the same time, it can avoid the problems of oil leakage and the need for frequent replacement of easily dirty oil.
The mold pressing part can produce multiple pieces at a time or a single piece at a time, meeting various customer requirements. The pressing time can be appropriately adjusted by the PLC. The operation and replacement of molds are simple and easy to understand, which greatly facilitates customers.
During the pressing process, limit contactors can be installed according to customer requirements to enhance production safety and quality.
Technical parameter
|
No |
Model |
YST-100 |
|
1 |
Work pressure |
100T double-layer, upper and lower double oil cylinders, each with a pressure of 100 tons, capable of bidirectional tablet pressing |
|
2 |
Upward stroke and downward stroke |
Upward stroke: 150mm, The downward stroke is 100mm |
|
3 |
Loading height |
According to the actual product thickness and compression ratio |
|
4 |
Output |
6 to 8 molds per minute, multiple pieces in one mold (depending on the actual pressure required for product molding) |
|
6 |
Motor power |
11KW, 380V Siemens |
|
7 |
Hydraulic system |
Taiwan Xutian |
|
8 |
PLC |
Guangyang |
|
9 |
Dimension |
800*1600*2200 |
|
10 |
Weight |
4000KG |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
