ItemNo :
LITH-THP-6TMOQ :
1Warranty:
2yearsDelivery Time:
5 days

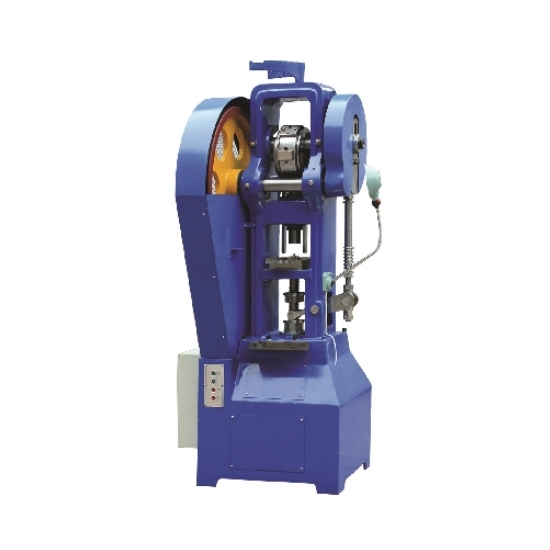

The THP-6 tablet press is suitable for the pressing and shaping of various powders, granules and crystals. Our factory independently manufactures and provides press molds, and can produce products of various shapes according to customer requirements.
The equipment pressure can be adjusted within a range of 6 tons, and the depth of the packing, that is, the height of the product after extrusion, can be adjusted within a certain range. The equipment is simple, safe and convenient to operate.
After the mold is installed and debugged, the raw materials are manually put into the material cylinder at the rear top of the equipment. Then, the power is connected and the working switch is turned on. The equipment can automatically complete the entire process of material feeding, pressing, and product ejection and pushing out. It is highly efficient and can operate multiple machines by one person at the same time.
Technical parameter
|
No |
Model |
THP-6 |
|
1 |
Work pressure |
6T |
|
2 |
The maximum itinerary for the upward rush |
30mm |
|
3 |
Loading height |
Max. 35mm |
|
4 |
Tablet diameter |
The maximum tablet diameter is 30mm |
|
5 |
Production volume |
30 molds per minute two pieces each mold |
|
6 |
Motor power |
1.5KW |
|
7 |
Dimensions |
600*700*1500 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
