Introduction
YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in:
1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production.
2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple.
3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions.

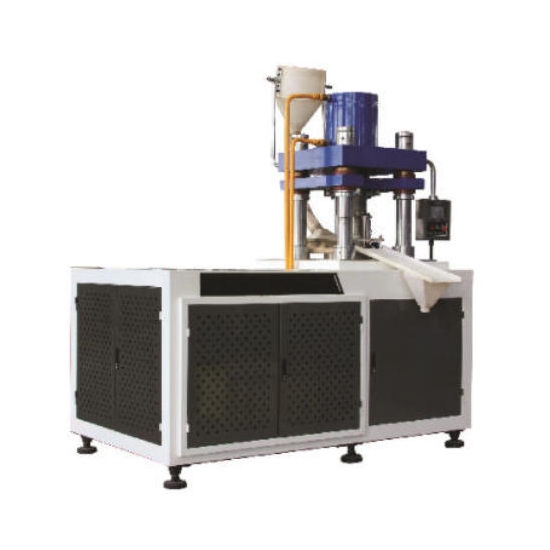

YST-200T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.
Technical parameter
|
No |
Model |
YST-200T |
|
1 |
Work pressure |
200T, adjustable from 0 to 200 tons |
|
2 |
Cylinder pressure |
The upper cylinder is 200T, and the lower cylinder is 200T |
|
3 |
Cylinder stroke |
Upper cylinder: 150mm; lower cylinder: 100mm(Customized according to the thickness of the customer's product and adjustable within a certain range.) |
|
4 |
Filling height |
100mm |
|
5 |
Production capacity |
3 tablets per minute, one mold with multiple pieces (according to customer requirements), diameter 2.5cm, thickness 4cm |
|
6 |
Motor power |
15KW,380V, German Siemens |
|
7 |
Appearance |
Fully Stainless Steel |
|
8 |
Size |
1600*1750*2500 |
|
9 |
Weight |
2000kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
