ItemNo :
LITH-THP-20TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

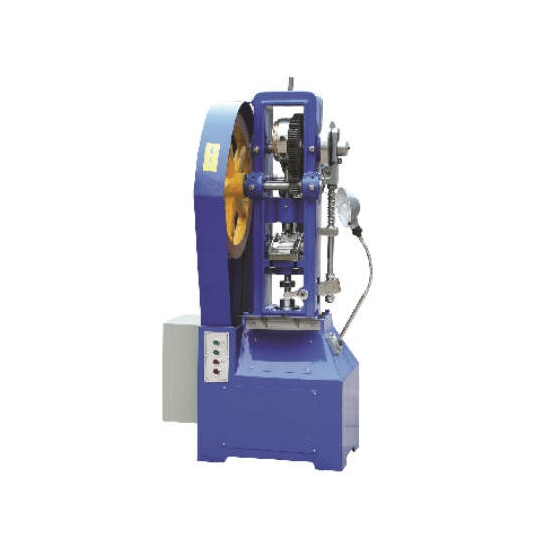

THP series belongs to the mechanical tablet press. Used for molding process simple products. The main advantage is that:
1.High performance: Compact structure, less manufacturing cost, this kind of tablet press machine have obvious advantages in price.
2.Wide application: Can be used widely in many fields, it is a good choice in tablet forming that the requirement is not so strict.
Actual use characteristics of THP series:
1.Automatic production: This tablet pres machine can automatically Filing material, compressing, formed tablet, A person can operate several machines at a time
2.Easy maintenance: Principle and the structure is relatively simple,easy to learn and use, t is also very convenient from the production to daily maintenance.
3.Efficient time-saving: Because of its mechanical compressing advantages, it has very good performance in production speed,it can compress 20-30 cycles per minute
THP-20 machine is suitable for medium and small-sized production of various powder and granular tablet pressing and forming.
Continuous automation of work. Molds of different shapes such as ring, sheet and conical can be freely replaced, and the pressure within a range of 20 tons can be adjusted.
This tablet press has a high degree of automation, saves labor and time, and can be used for multiple purposes with one machine, allowing one person to control multiple machines. It is applicable to various industries.
Technical parameter
|
No |
Model |
THP-20 |
|
1 |
Work pressure |
20T |
|
2 |
The maximum stroke for the upward rush |
110mm |
|
3 |
Loading height |
60mm |
|
4 |
Tablet diameter of lower mold |
128mm |
|
5 |
Production volume |
27 times per minute |
|
6 |
Motor power |
4KW |
|
7 |
Dimensions |
1000*950*2400 mm |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
