ItemNo :
LITH-THP-40TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction
THP series belongs to the mechanical tablet press. Used for molding process simple products. The main advantage is that:
1.High performance: Compact structure, less manufacturing cost, this kind of tablet press machine have obvious advantages in price.
2.Wide application: Can be used widely in many fields, it is a good choice in tablet forming that the requirement is not so strict.
Actual use characteristics of THP series:
1.Automatic production: This tablet pres machine can automatically Filing material, compressing, formed tablet, A person can operate several machines at a time
2.Easy maintenance: Principle and the structure is relatively simple,easy to learn and use, t is also very convenient from the production to daily maintenance.
3.Efficient time-saving: Because of its mechanical compressing advantages, it has very good performance in production speed,it can compress 20-30 cycles per minute

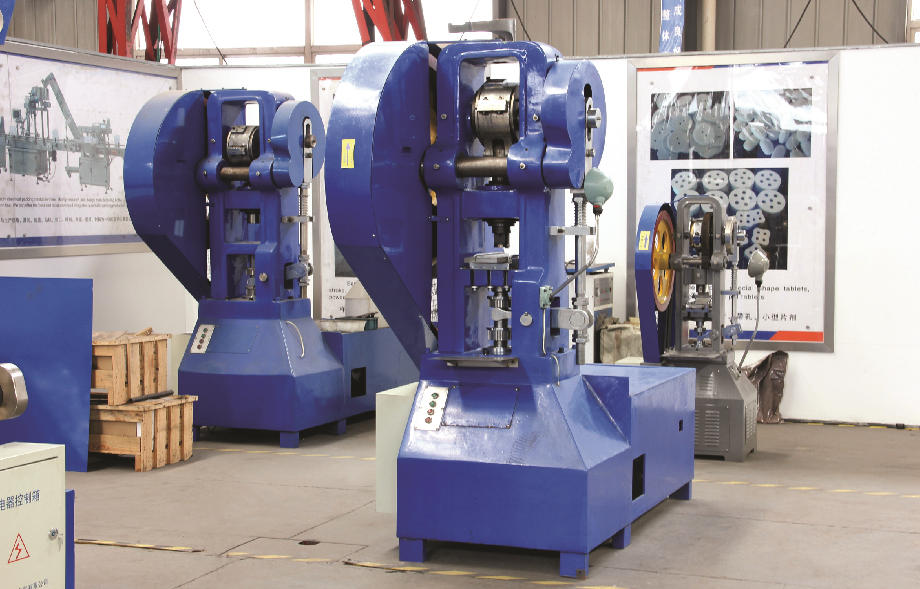

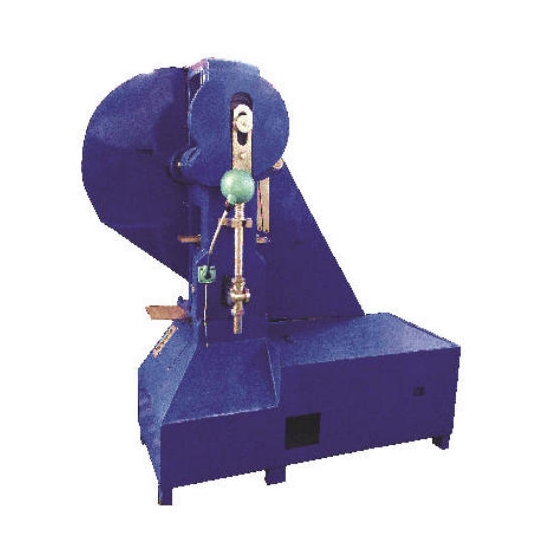

The THP-40 tablet press is suitable for the pressing and molding of various powders, granules and crystals. Our factory independently manufactures and provides press molds, and can produce products of various shapes according to customer requirements.
The equipment pressure can be adjusted within a range of 40 tons, and the depth of the packing, that is, the height of the product after extrusion, can be adjusted within a certain range.
The equipment is simple, safe and convenient to operate. After the mold is installed and debugged, the raw materials are manually put into the material cylinder at the rear top of the equipment. Then, the power is connected and the working switch is turned on. The equipment can automatically complete the entire process of material feeding, pressing, and product ejection and pushing out. It is highly efficient and can operate multiple machines by one person at the same time.
For chemical powder tablet pressing and corrosive powder tablet pressing, the equipment adopts large-area titanium alloy wrapping for the parts in contact with the materials. The mold is made of TC4 super corrosion-resistant material.
Highlight 1: High precision and stable performance.
Highlight 2: Low failure rate, wide application, and capable of meeting the needs of customers from various industries.
Highlight 3: Modifications have been made to the punch shaft and ejection lead screw of this equipment. It avoids the drawback that the copper sleeve of the punch shaft is prone to damage and can easily damage the mold. Meanwhile, the locking of the ejection lead screw can fully ensure the consistency of the weight and size of the output sheet.
Technical parameter
|
No |
Model |
THP-40 |
|
1 |
Work pressure |
Maximum 40T |
|
2 |
The maximum itinerary for the upward rush |
65mm |
|
3 |
Loading height |
Maximum 55mm |
|
4 |
Maximum tablet diameter |
One mold, one piece |
|
5 |
Production volume |
25 molds per minute |
|
6 |
Motor power |
5KW |
|
7 |
Dimensions |
1500 * 1900 * 1800 |
|
8 |
Weight |
2.6 tons |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
