ItemNo :
LITH-YST-500TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction
YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in:
1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production.
2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple.
3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions.

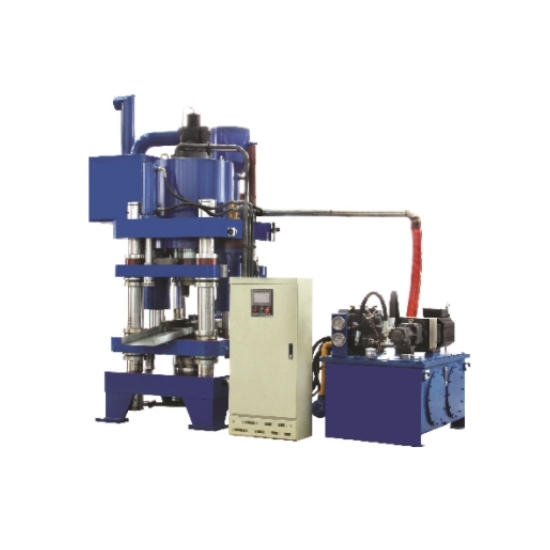

YST-500T type machine is a large-scale tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets. It is suitable for pressing large-scale products with high density requirements. At the same time, it can produce multiple tablets in one mold and is applicable to large-scale production industries. The equipment has high precision and the mold replacement and installation are convenient and easy to learn. High degree of automation.
All actions are controlled by a microcomputer PLC and operate continuously and automatically. The pressing time, pressure and product thickness can be appropriately adjusted. Ensure stable product pressure, consistent density and small dimensional error.
The entire hydraulic system adopts imported hydraulic components, which ensures higher stability and avoids problems such as oil leakage, easy oil dirtiness, insufficient pressure, and asynchronous and continuous actions. The working part and the hydraulic system part are separated and independent, causing no pollution. It features automatic heat dissipation, reducing equipment wear and tear.
It is necessary to undertake the hydraulic oil and circulating cooling water devices required for the operation of the equipment, as well as the working power supply of the equipment.
Technical parameter
|
No |
Model number |
YST-500T |
|
1 |
Work pressure |
500T, adjustable from 50 to 500 tons. It can press tablets in both directions. The pressure can be directly displayed on the oil gauge through the regulating valve. The operation is convenient and simple, and it can maintain long-term pressing at 500 tons. |
|
2 |
Stroke |
The upper cylinder stroke is 300mm and the lower cylinder stroke is 350mm. |
|
4 |
The maximum itinerary for the upward rush |
150mm |
|
5 |
Downward rush stroke |
100mm (Customized according to the thickness of the customer's product, adjustable within a certain range.) |
|
6 |
Filling height |
100mm(customizable according to product height) |
|
7 |
Production volume |
3-4 molds per minute, multiple pieces per mold (according to customer requirements) |
|
8 |
Motor power |
Siemens 22KW, 380V |
|
9 |
Appearance |
The equipment is integral and fully enclosed with stainless steel |
|
10 |
Size |
2800*1900*3200(mm) length * width * height, subject to actual dimensions. |
|
10 |
Weight |
12000kg |
|
11 |
Note |
Hydraulic system: Taiwan Xutian PLC: Wuxi Guangyang Motor: Siemens Electrical appliances: Schneider Switch: Omron |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
