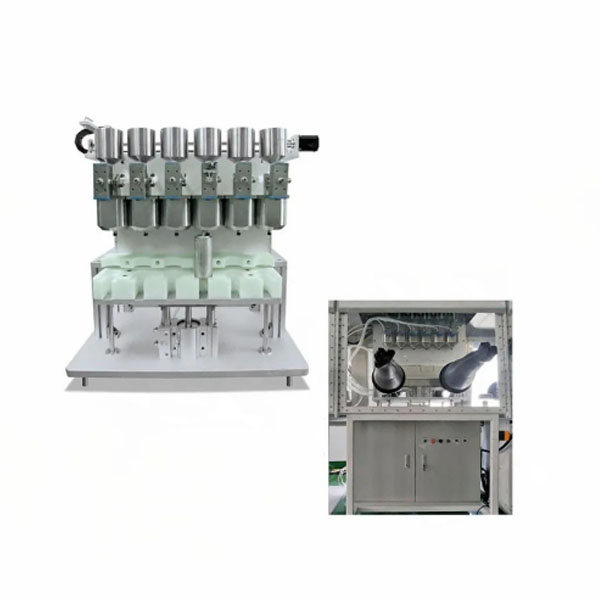

Louis@lithmachine.comLaboratory Vacuum Electrolyte Filling Machine
The Electrolyte Filling Machine is specifically designed for the electrolyte filling process of batteries and capacitors. It adopts a vacuum-first, filling-then, and pressure-following technique, ensuring excellent consistency, reliability, and completeness in electrolyte absorption.
High-efficiency multi-station operation with vacuuming before filling, by alternating vacuum and pressure stages for optimal soaking.
Independent control system enables precise filling under various conditions.
Corrosion-resistant design with high-durability ceramic pump heads and critical components sourced from international brands.
Chemical-resistant hoses for all inlet/outlet connections.
Suitable for use inside gloveboxes or dry rooms.
Compact, elegant design, and stable performance.
|
Parameter |
Specification |
|
Applicable Products |
Lithium-ion batteries, supercapacitors (customizable) |
|
Filling Volume |
0–250 mL adjustable |
|
Vacuum Level |
≥ -98 kPa |
|
Nitrogen Pressure |
> 0.4 MPa |
|
Power Supply |
AC 220V |
|
Power Consumption |
1 kW |
|
Workstation Dimensions |
900 mm (L) × 700 mm (W) × 850 mm (H) (based on product height of 3000F H138mm) |
|
Adjustable Parameters |
Vacuum time, vacuum level, rest time after filling, pressurization pressure and time |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
